Instrument Panel, Gauges and Warning Indicators
>>
Speedometer Module
Speedometer Module

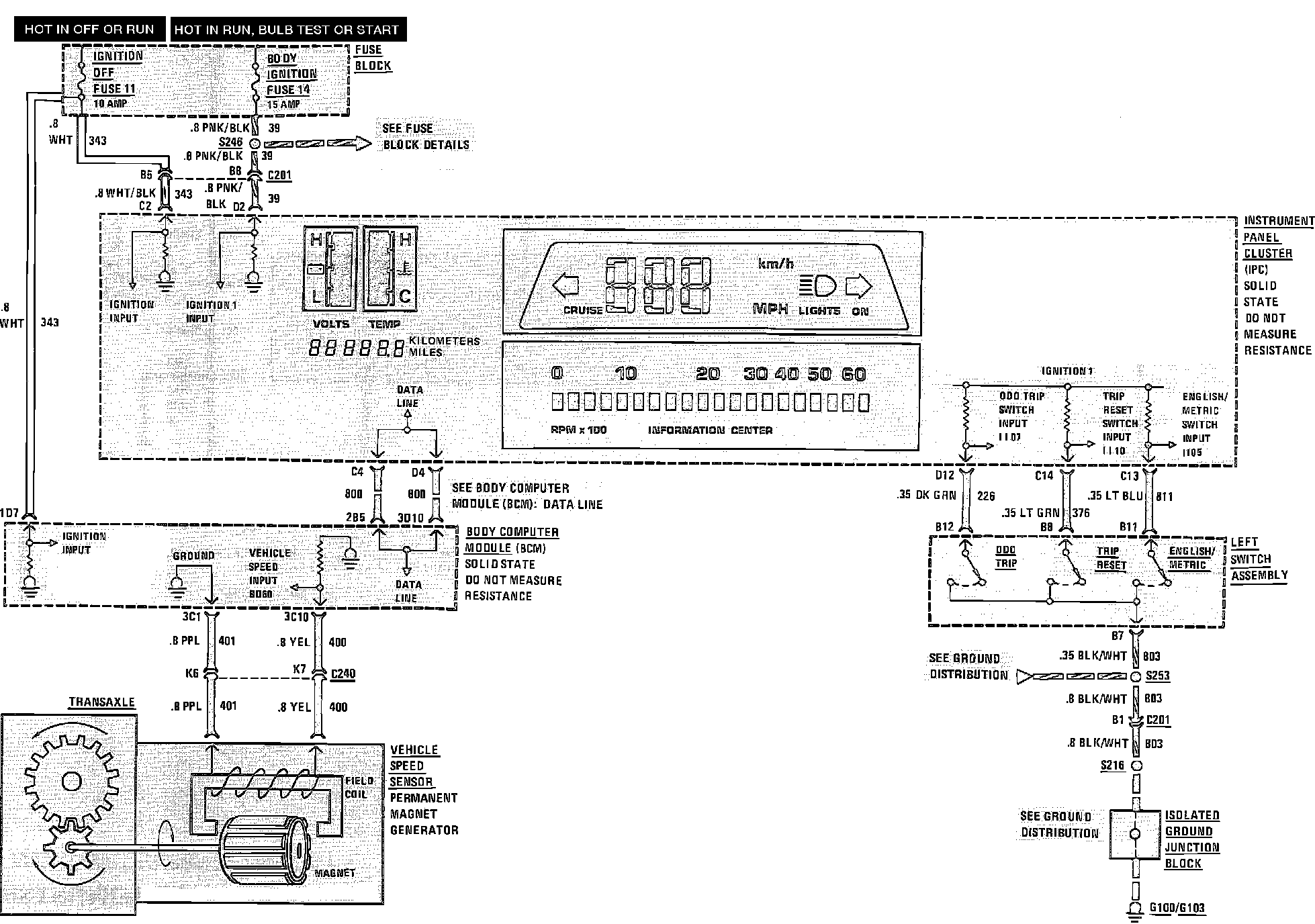

Instrument Panel Cluster Wiring Circuit (Speedometer, Odometer & Trip Odometer):
