Without Automatic Door Locks
Without Automatic Door Locks

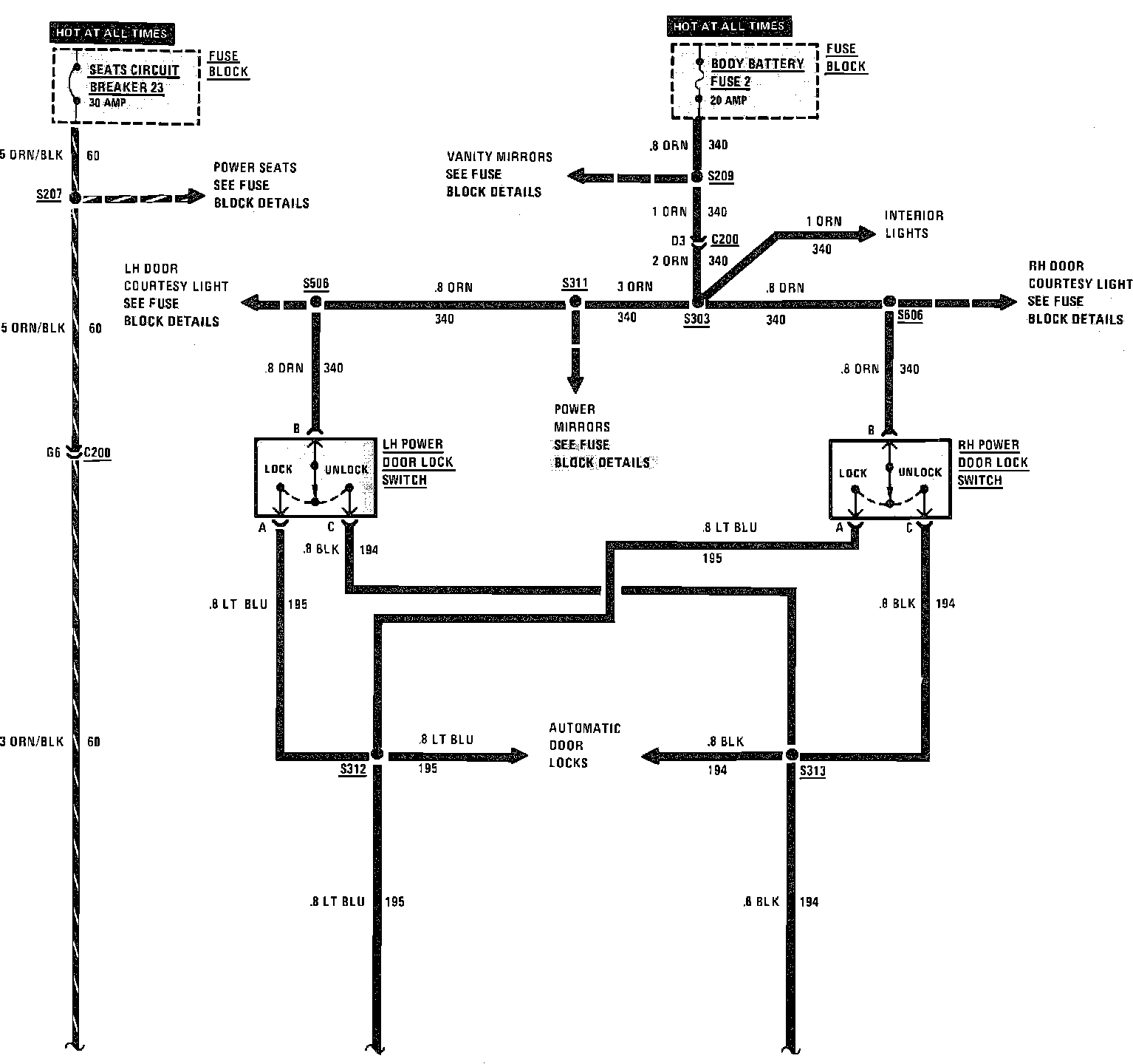

Power Door Lock Wiring Circuit (Less Automatic Door Locks) Part 1 Of 2:
Power Door Lock Wiring Circuit (Part 2 Of 2). W/O Automatic Door Lock System:
