Home >> Oldsmobile >> 1988 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Remote Graphic Equalizer

Remote Graphic Equalizer

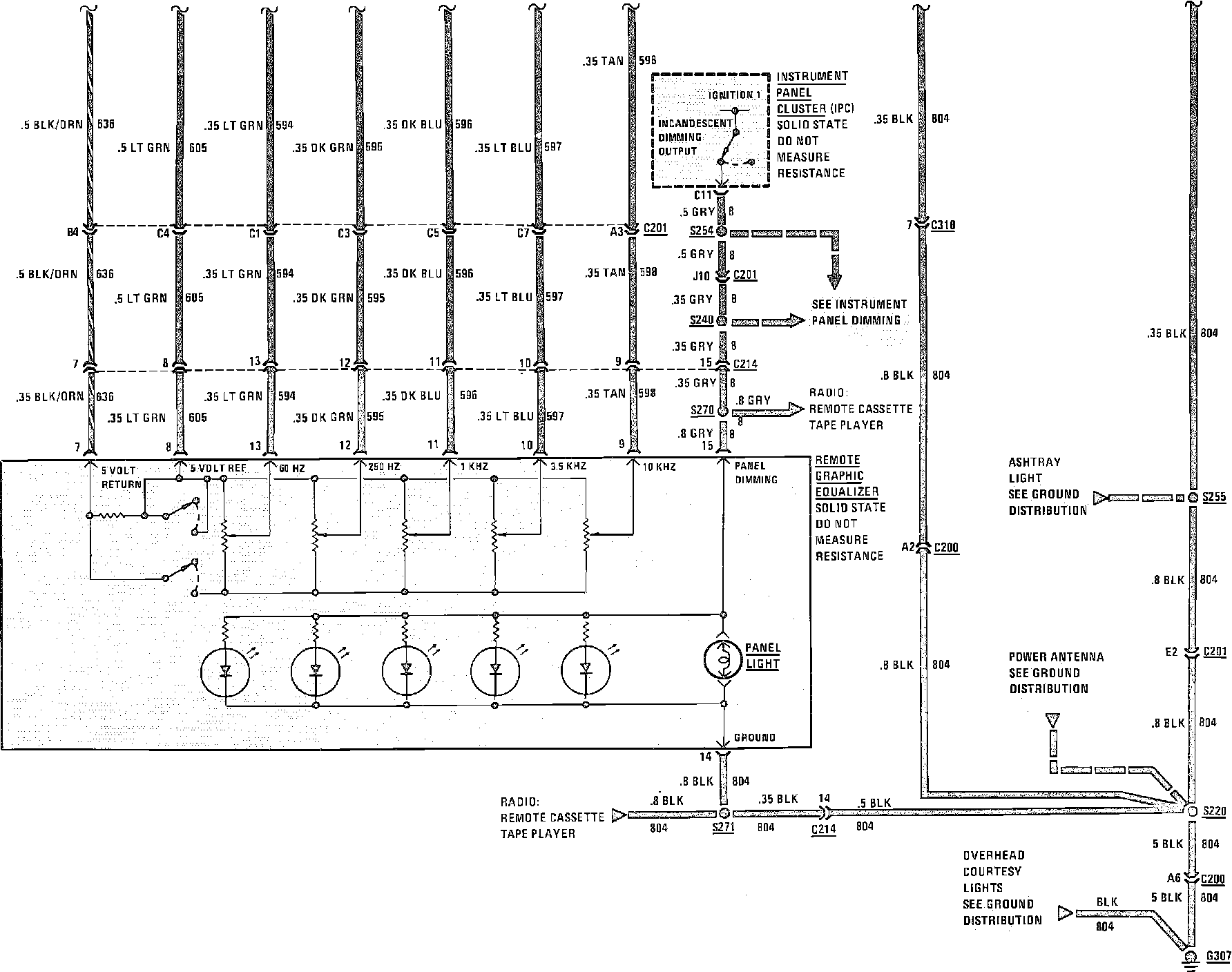

Remote Graphic Equalizer (Part 1 Of 2):



Remote Graphic Equalizer (Part 2 Of 2):
