Power 6-Way Seats Wiring Circuit
Power 6-Way Seats Wiring Circuit

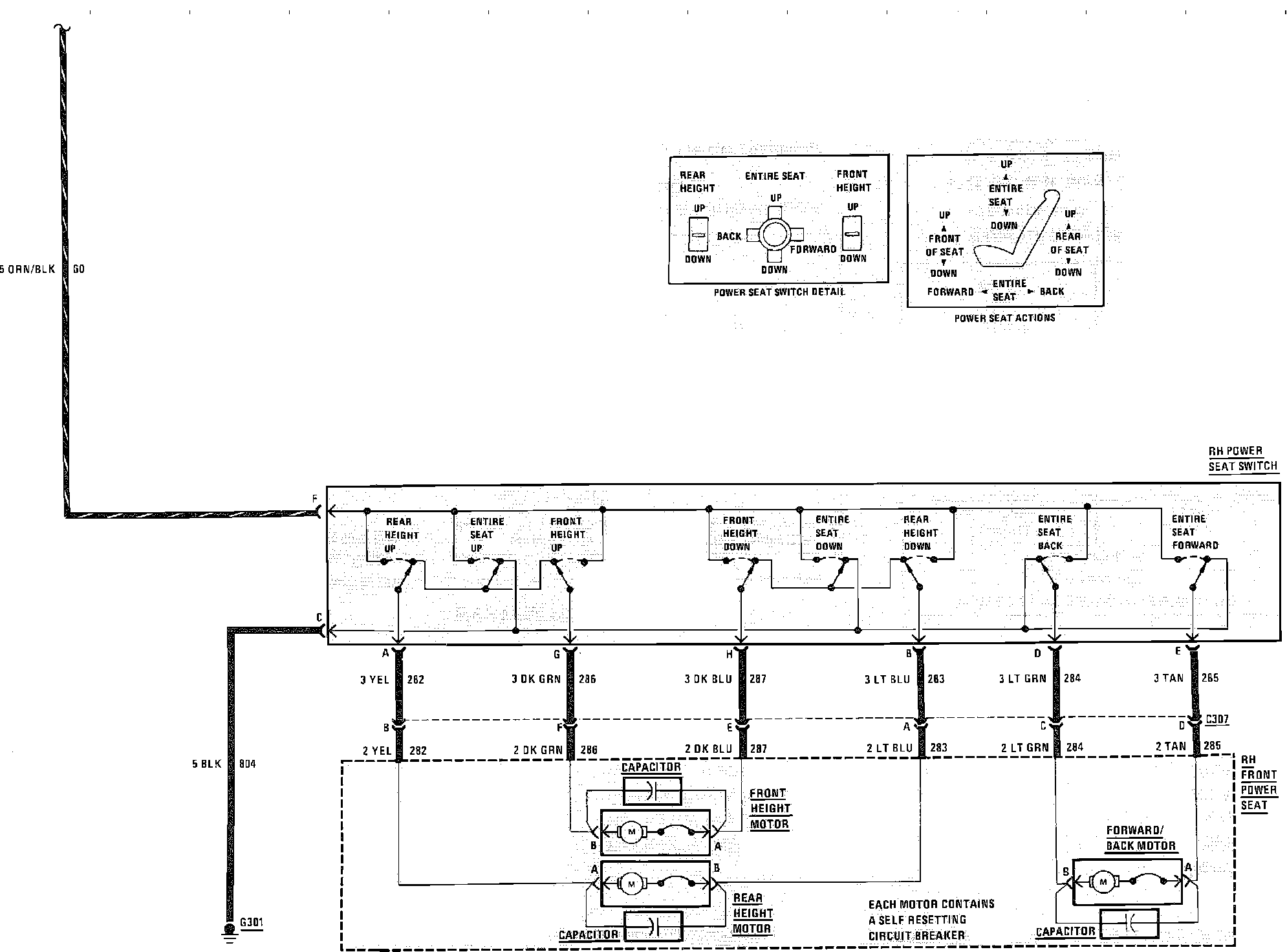

Power 6-Way Seats Wiring Circuit (Part 1 Of 2):

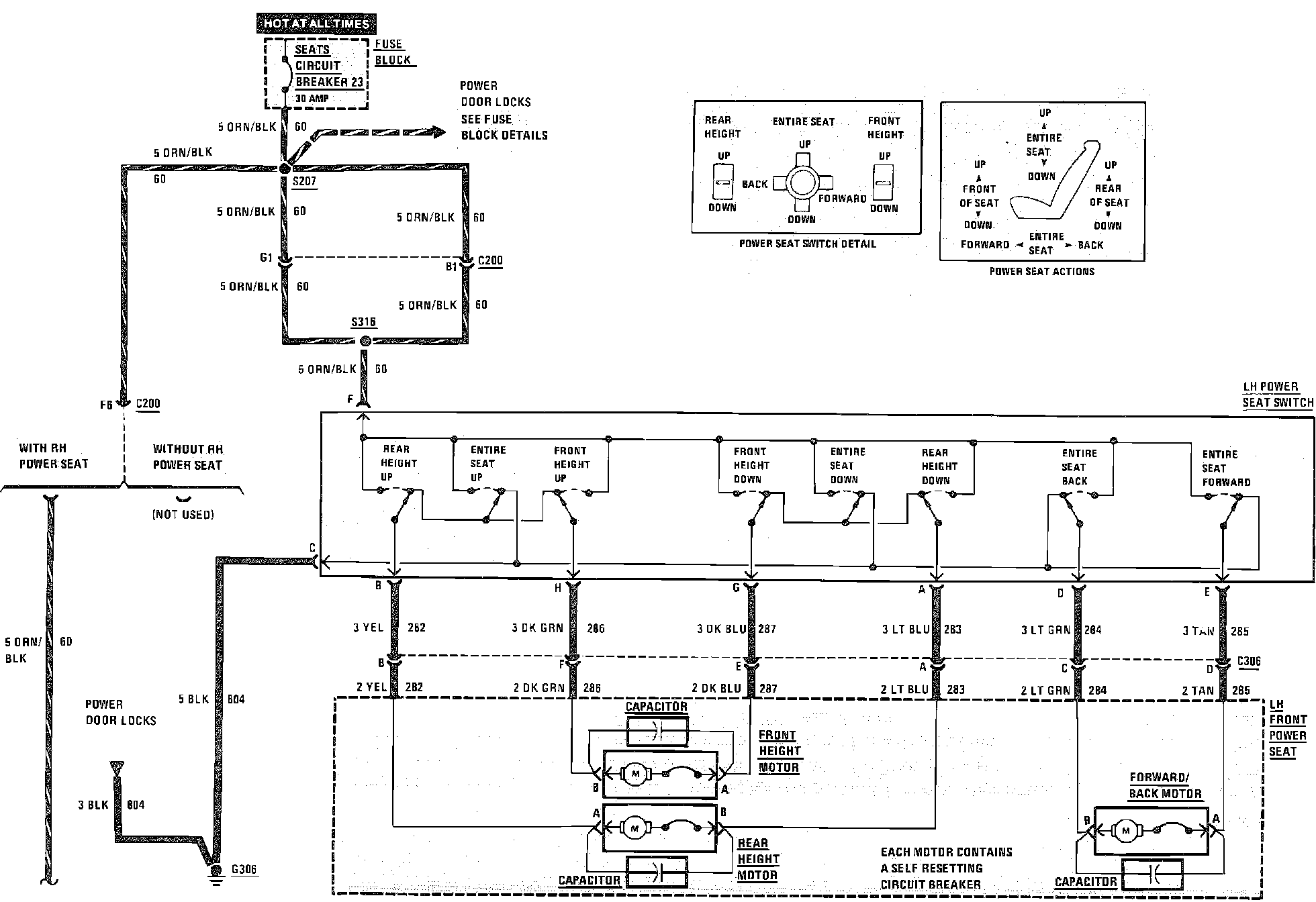

Power 6-Way Seats Wiring Circuit (Part 2 Of 2):
