Power Lumbar Seats Wiring Circuit (Trofeo)
Power Lumbar Seats Wiring Circuit (Trofeo)

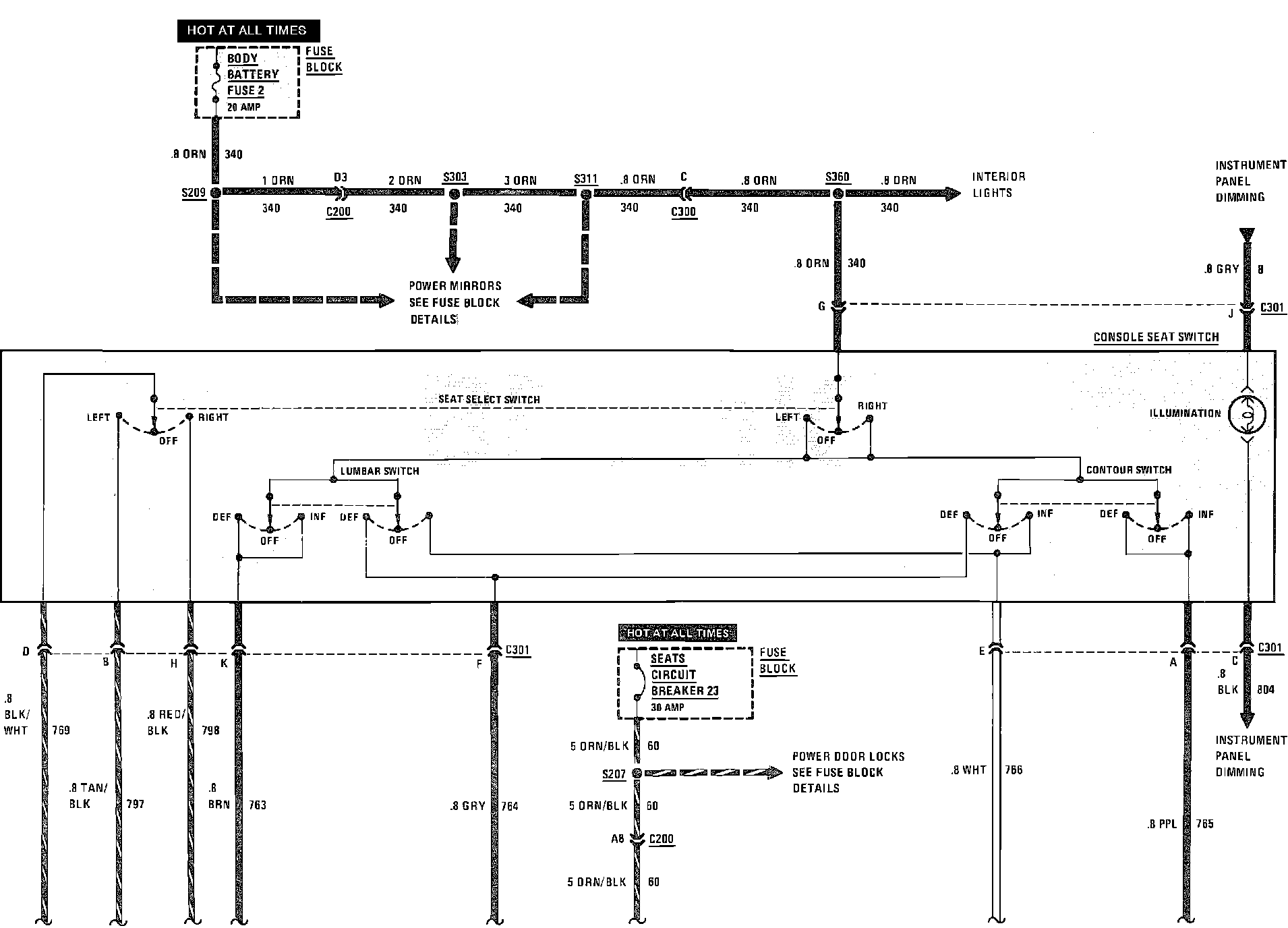

Power Lumbar Seats Wiring Circuit (Part 1 Of 2):
Power Lumbar Seats Wiring Circuit (Part 2 Of 2):
