Home >> Oldsmobile >> 1988 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning

Heating and Air Conditioning

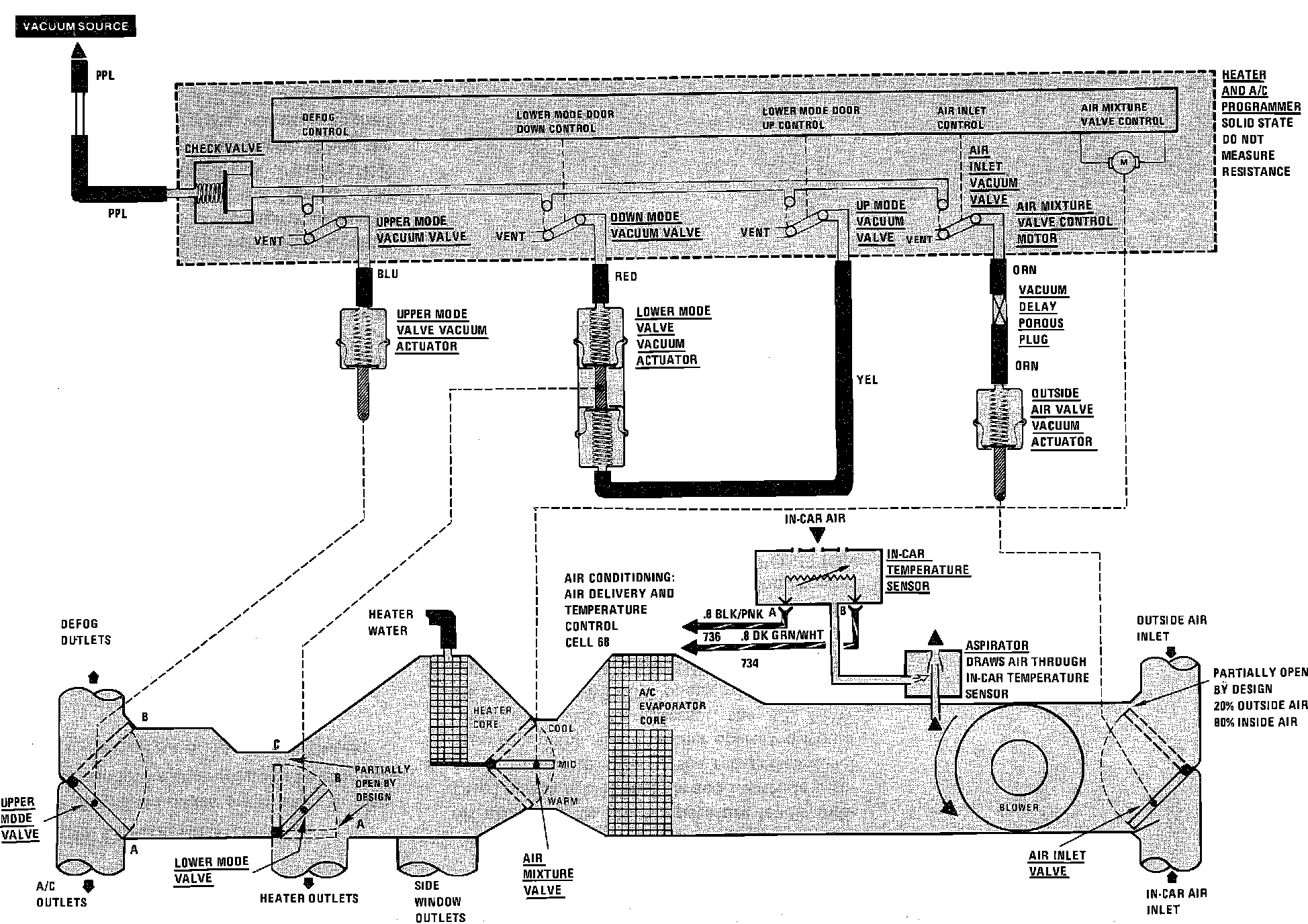

Air Conditioning Vacuum Circuit:

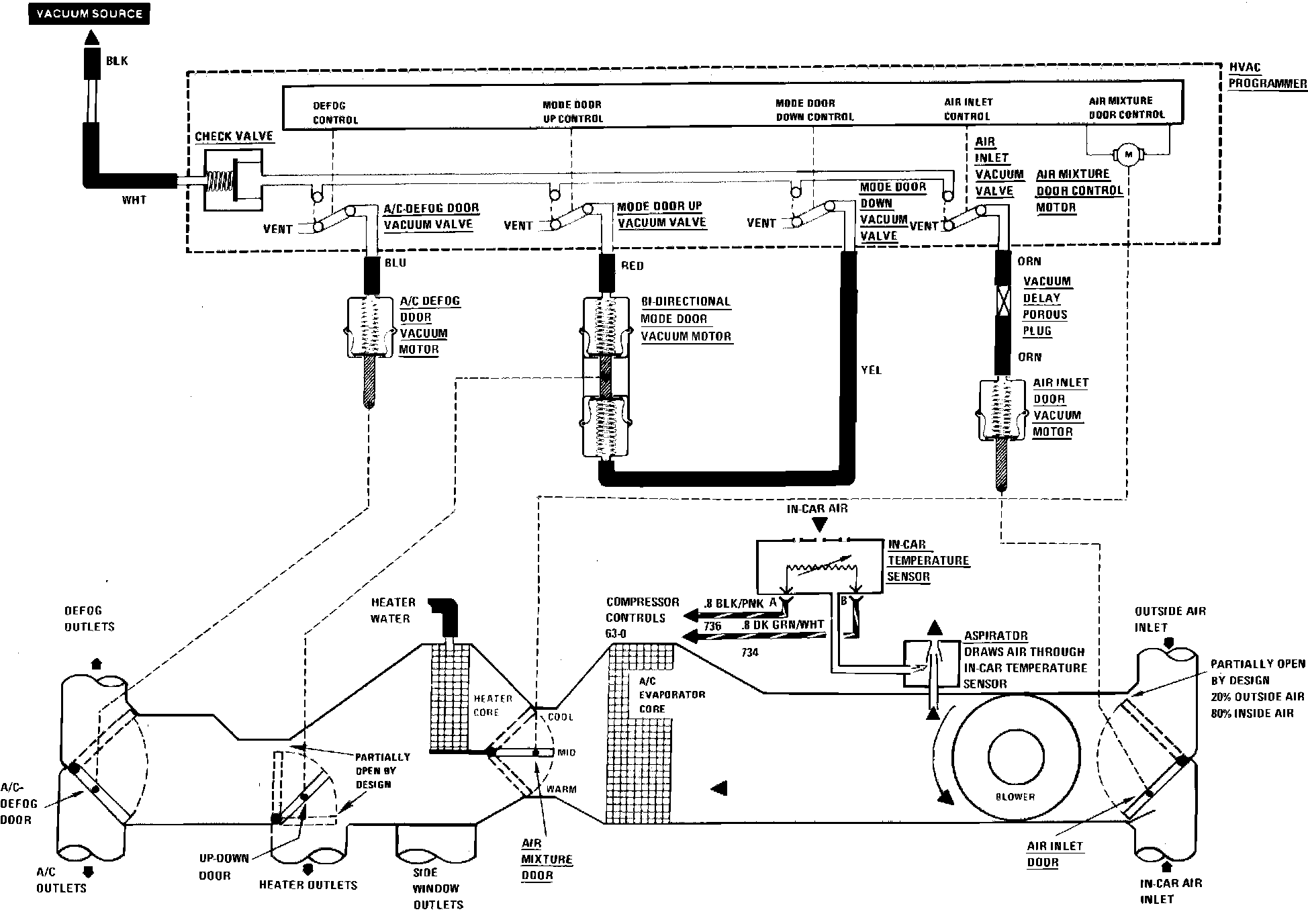

A/C System Vacuum & Wiring Circuit (Temp. Control):
