Alarms System

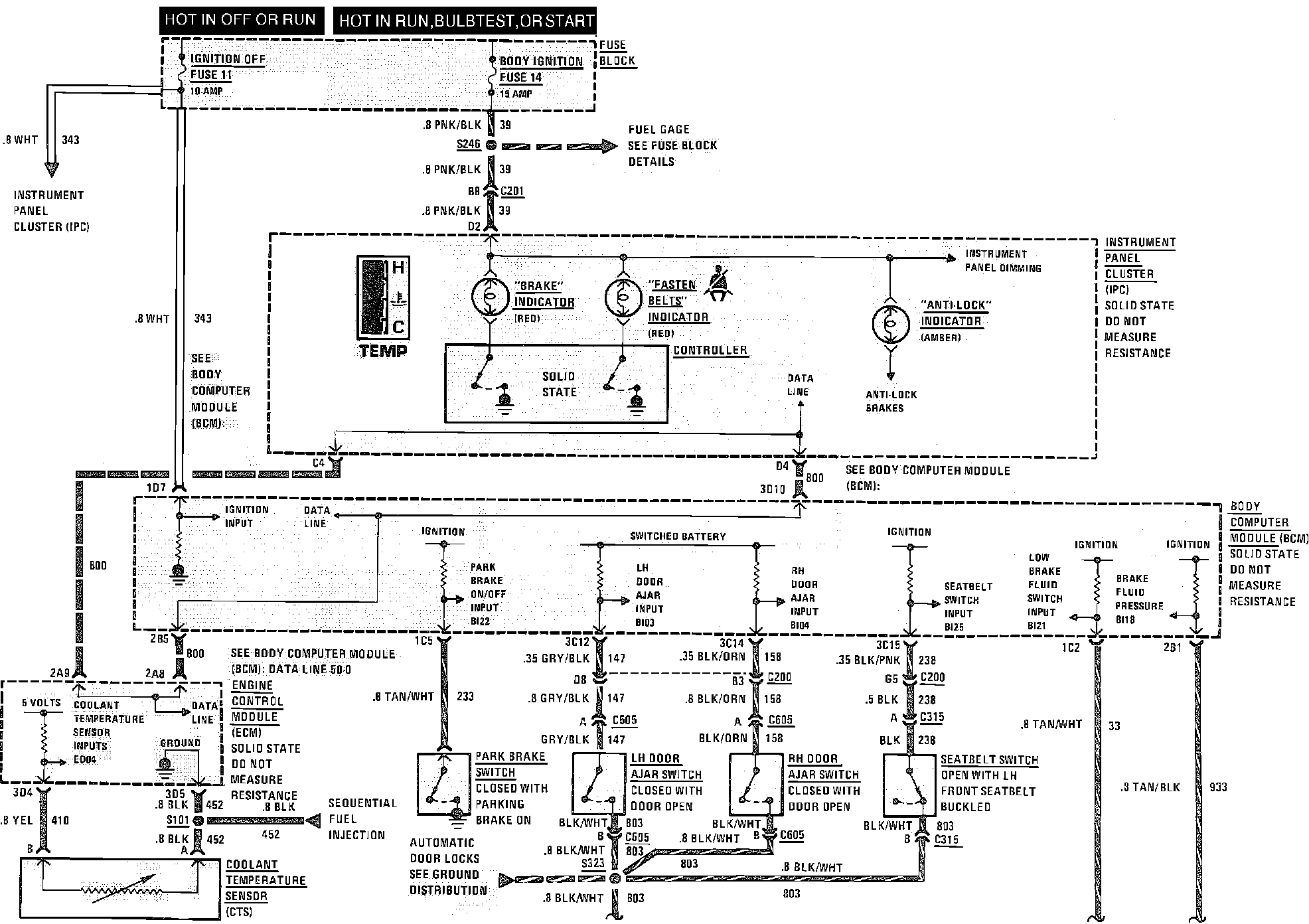

Alarms Wiring Circuit (Part 1 Of 5):

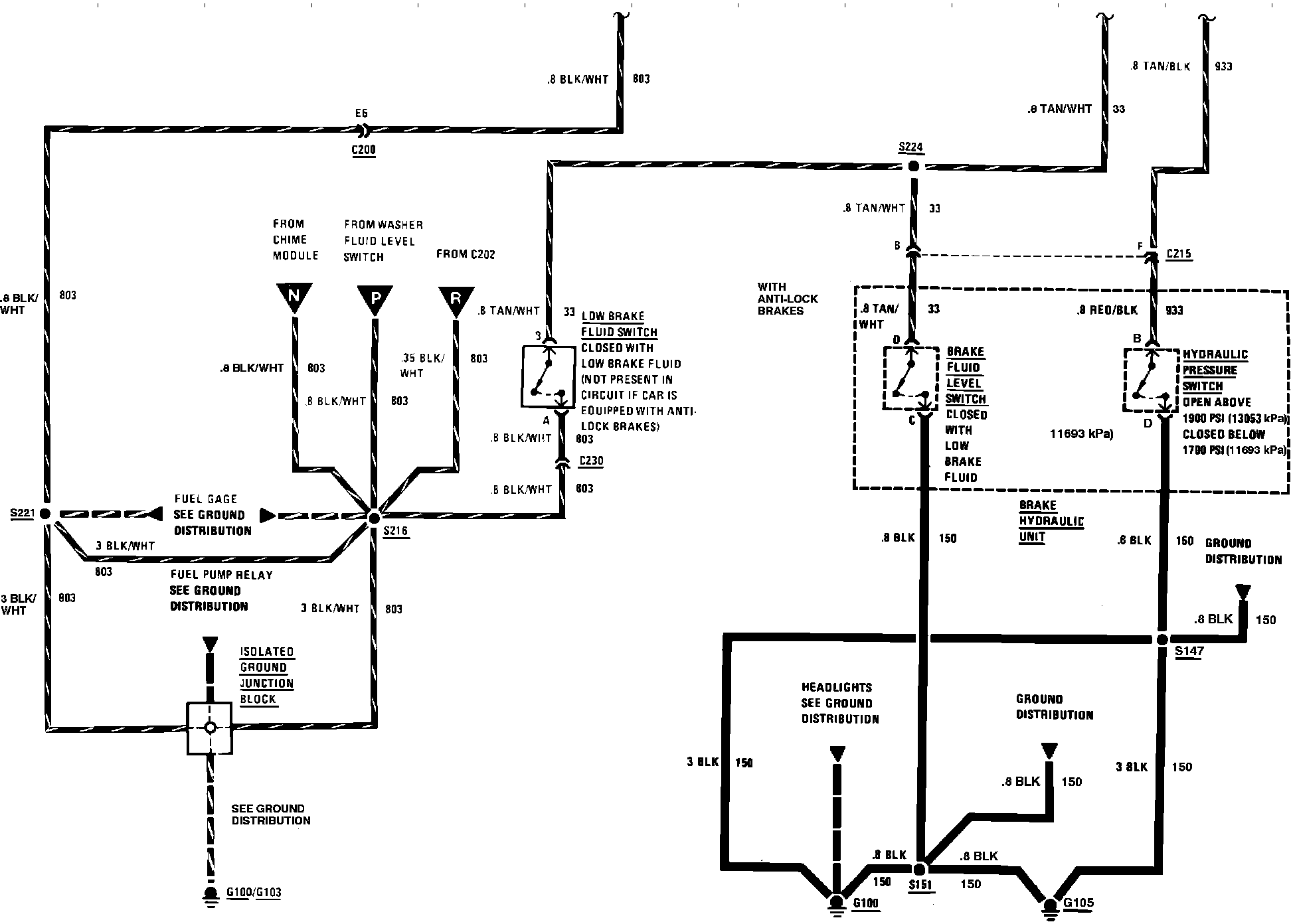

Alarms Wiring Circuit (Part 2 Of 5):

Alarms Wiring Circuit (Part 3a Of 5):

Alarms Wiring Circuit (Part 3b Of 5):

Alarms Wiring Circuit (Part 4 Of 5):

Alarms Wiring Circuit (Part 5 Of 5):
