Instrument Panel Dimming

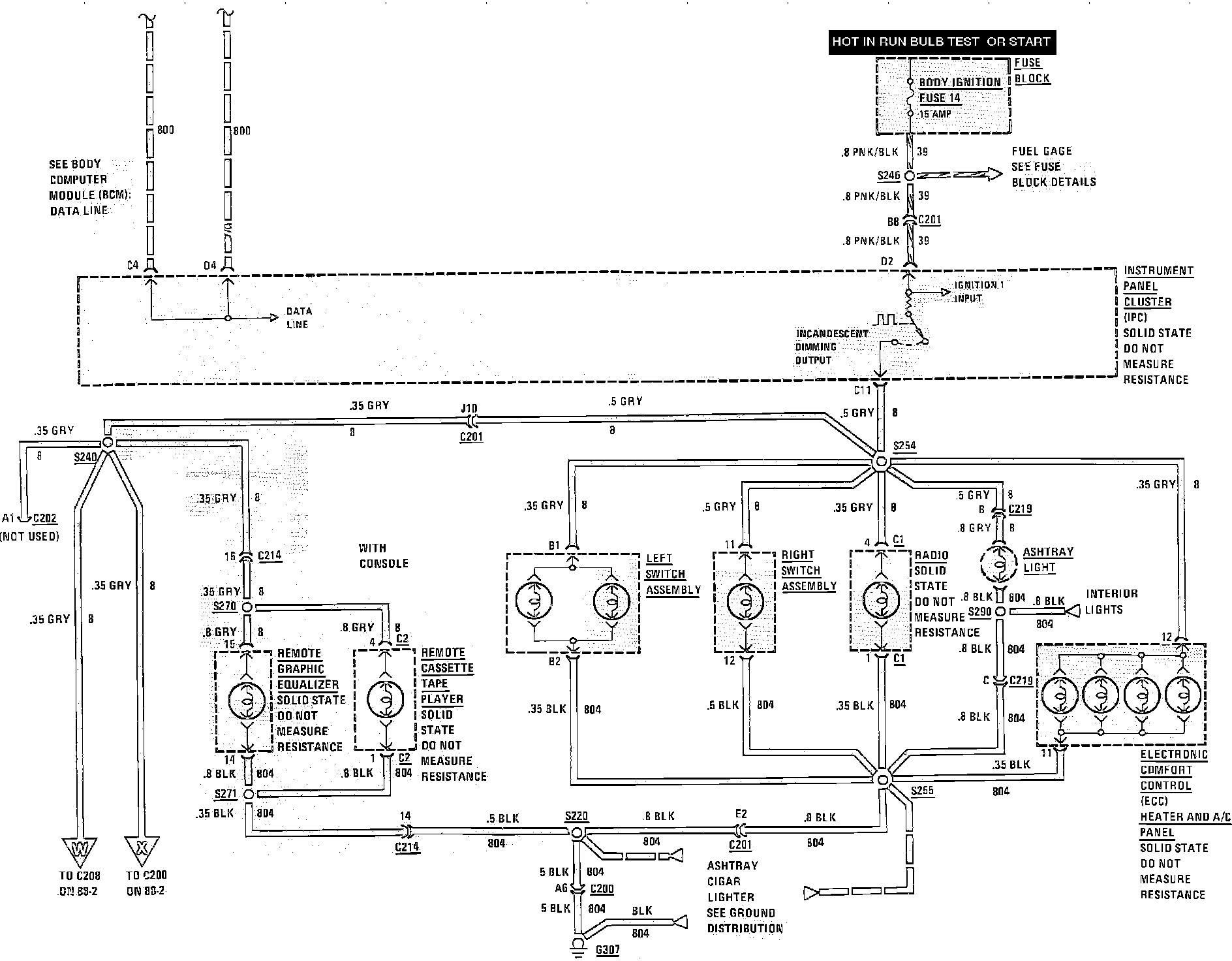

Instrument Panel Dimming Wiring Circuit (Part 1a Of 2):

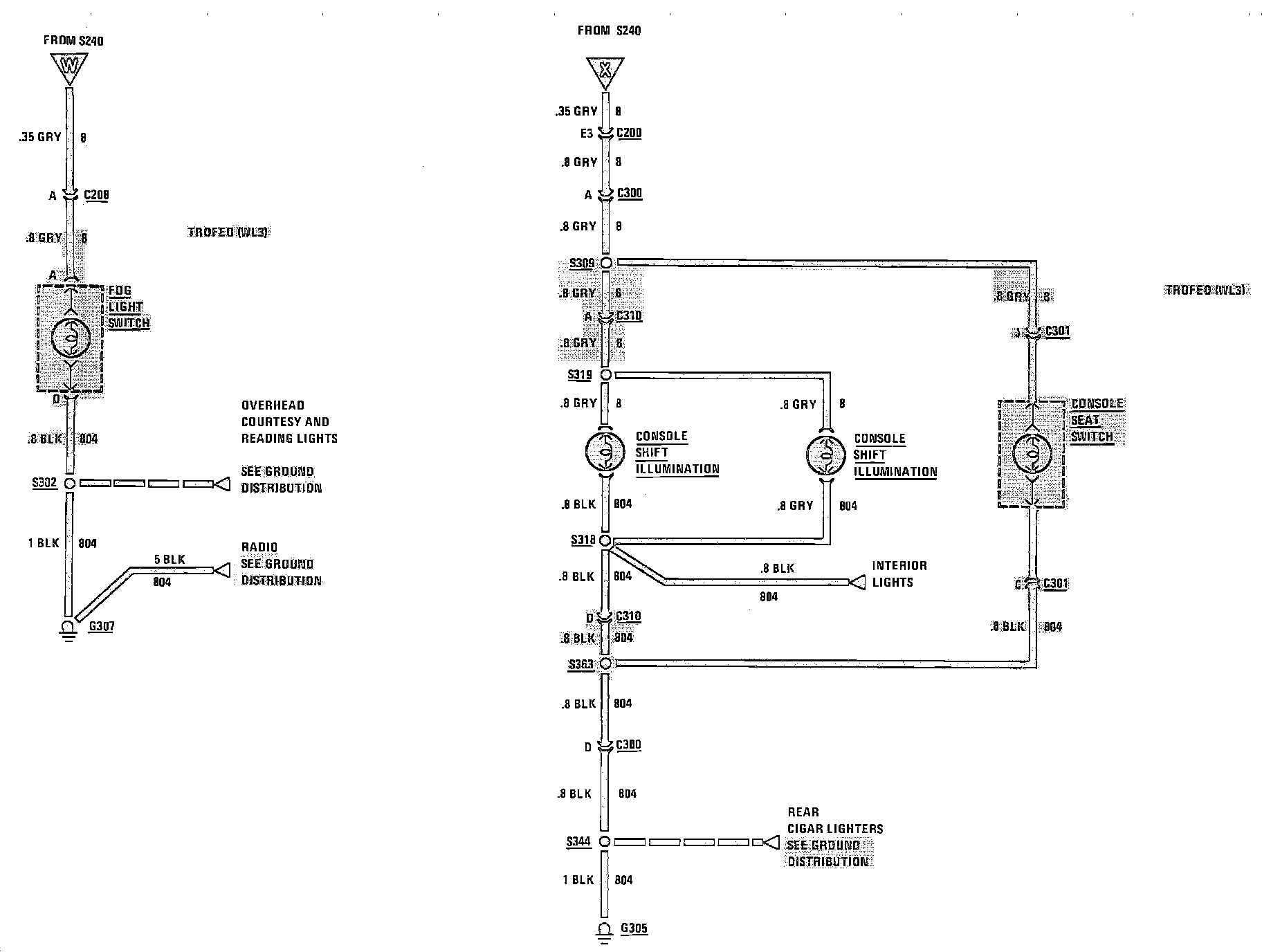

Instrument Panel Dimming Wiring Circuit (Part 1b Of 2):
Instrument Panel Dimming Wiring Circuit (Part 2 Of 2):
