Part 2 of 2

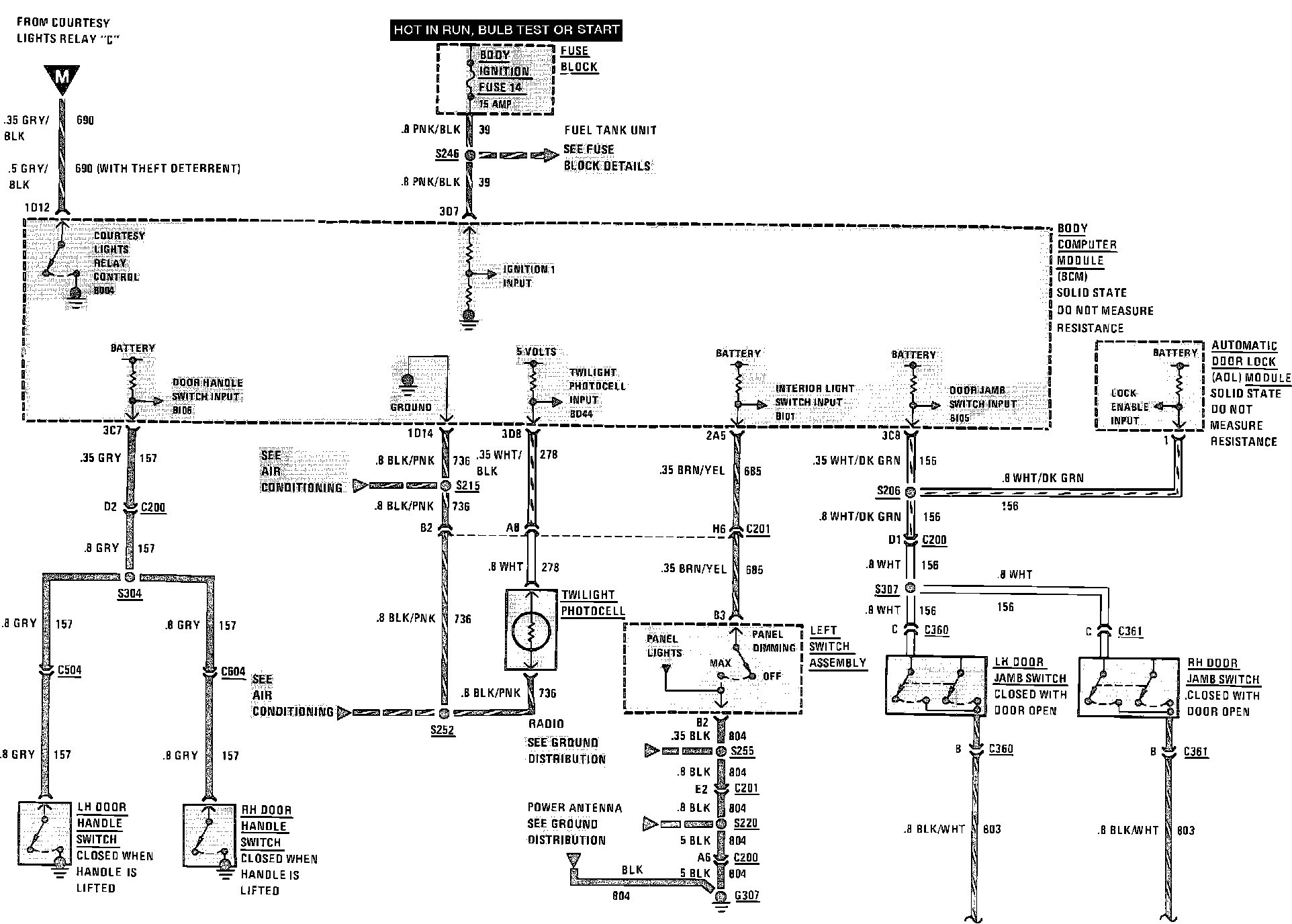

Illuminated Entry Wiring Circuit (Part 2a Of 2):



Illuminated Entry Wiring Circuit (Part 2b Of 2):
