Electrical Diagrams

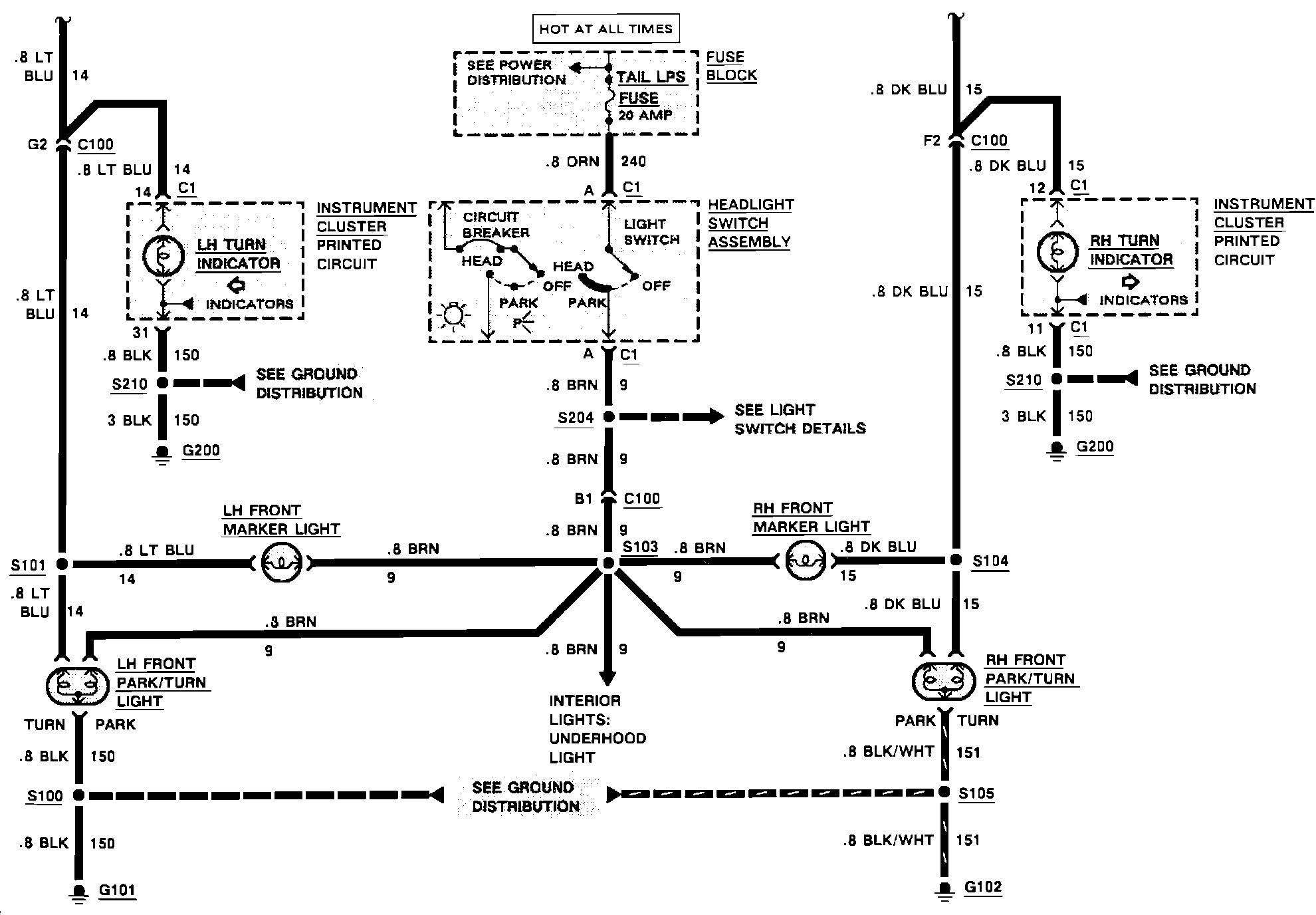

Exterior Lights (Turn, Hazard, Front Marker & Park):

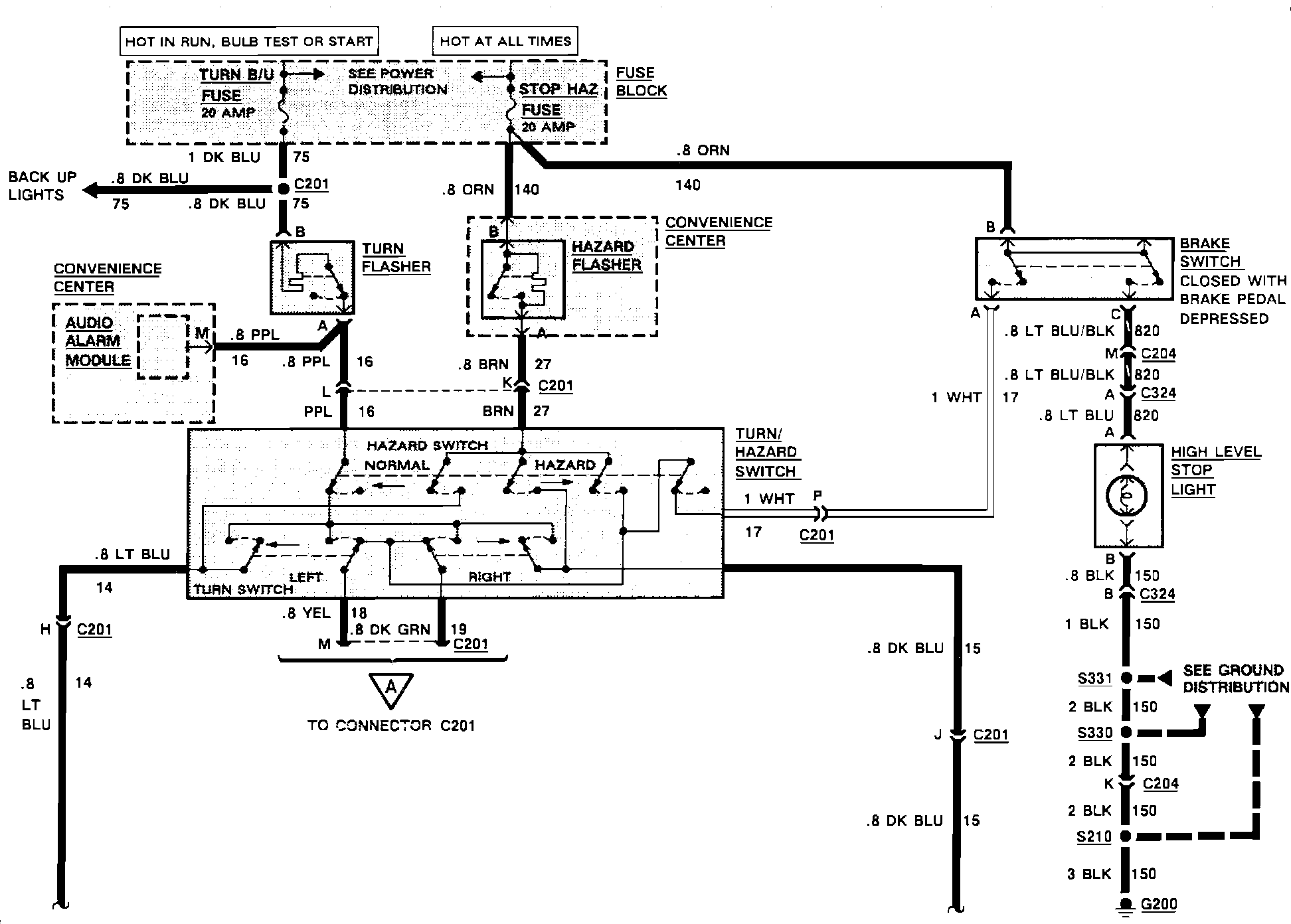

Exterior Lights (Turn, Hazard, Front Marker & Park):
