Home
>>
Oldsmobile
>>
1989
>>
Calais V6-3300 3.3L MFI VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

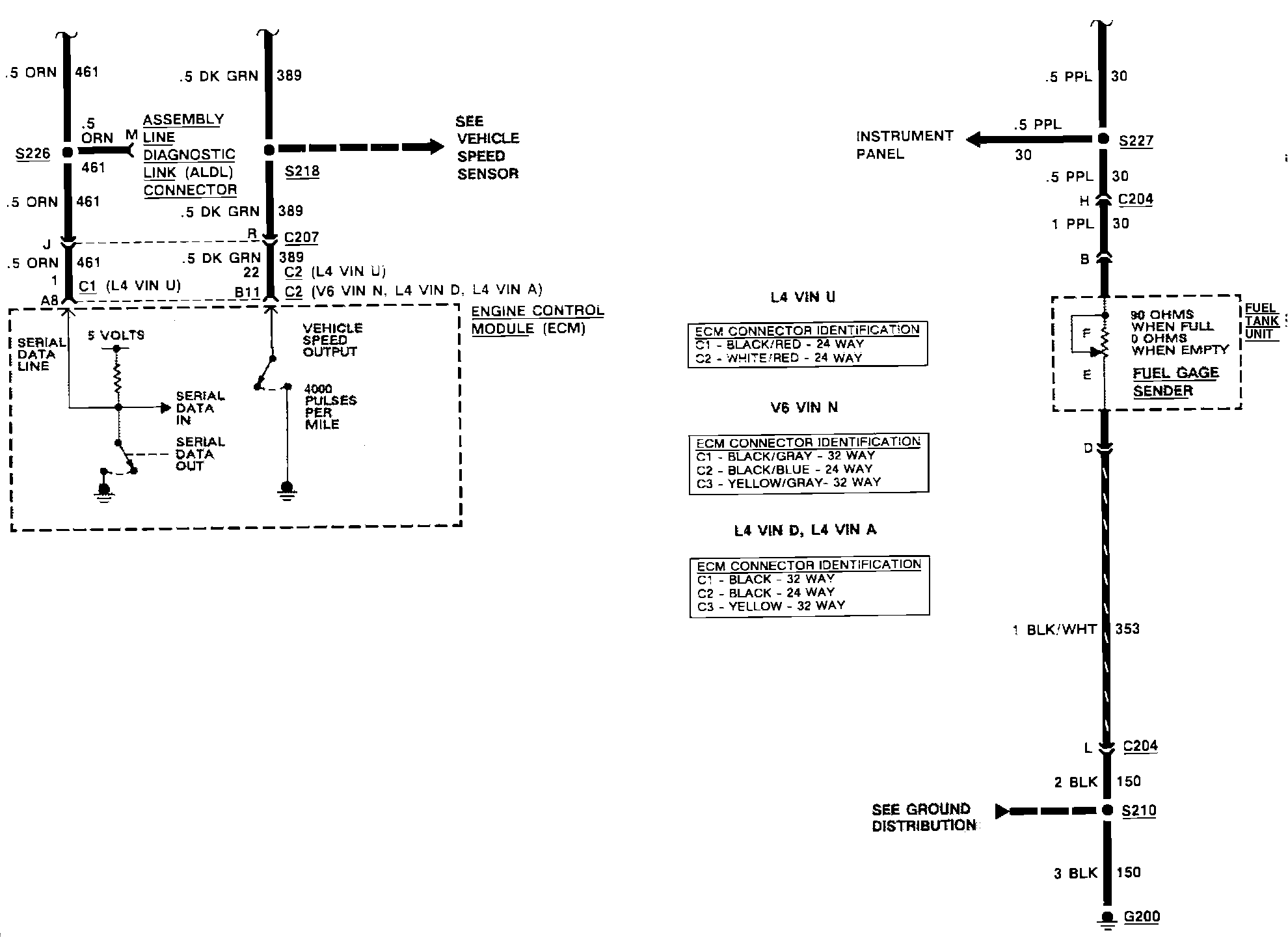

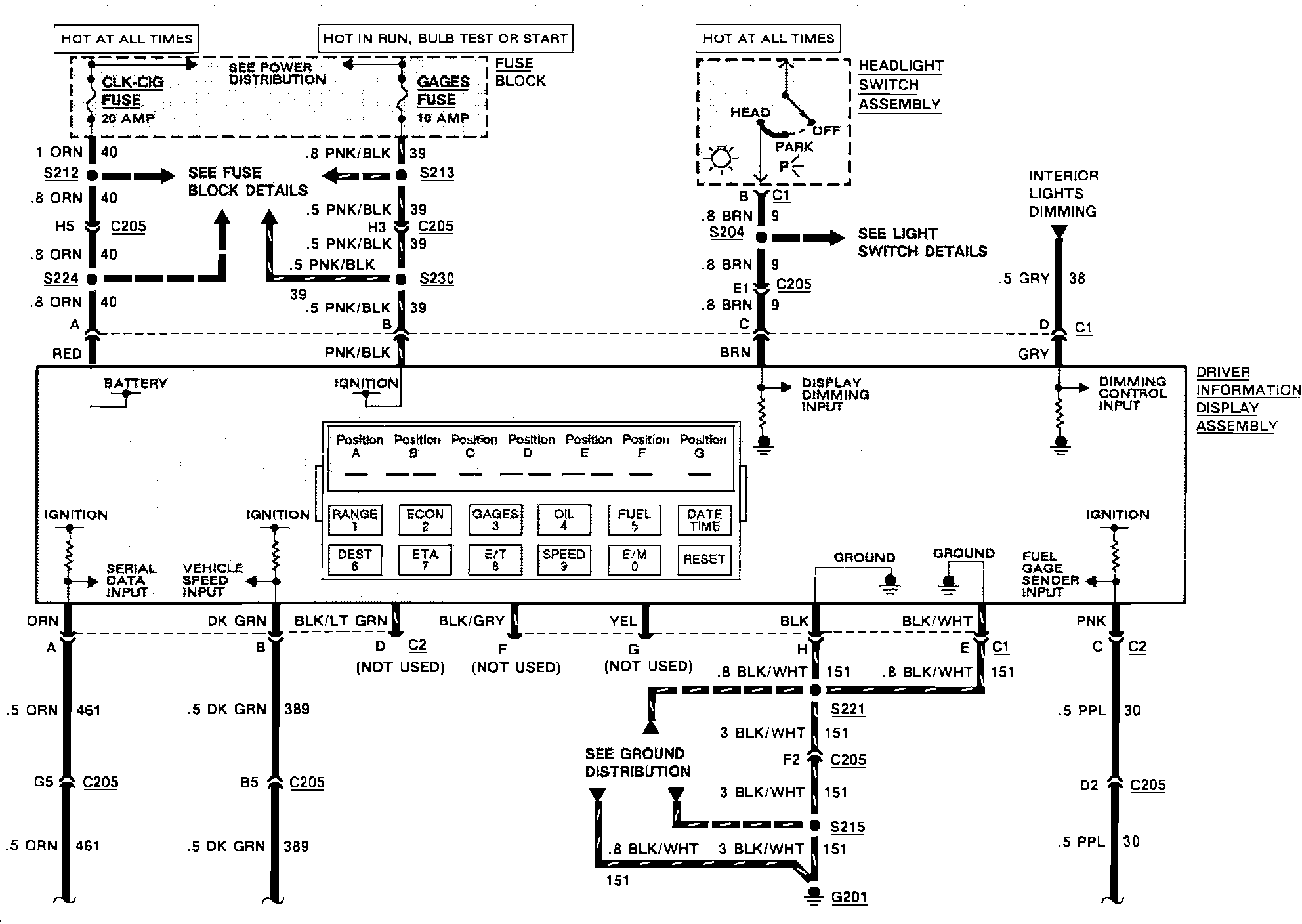

Driver/Vehicle Information Display
Driver/Vehicle Information Display
DIC:
DIC:
