Engine Specifications

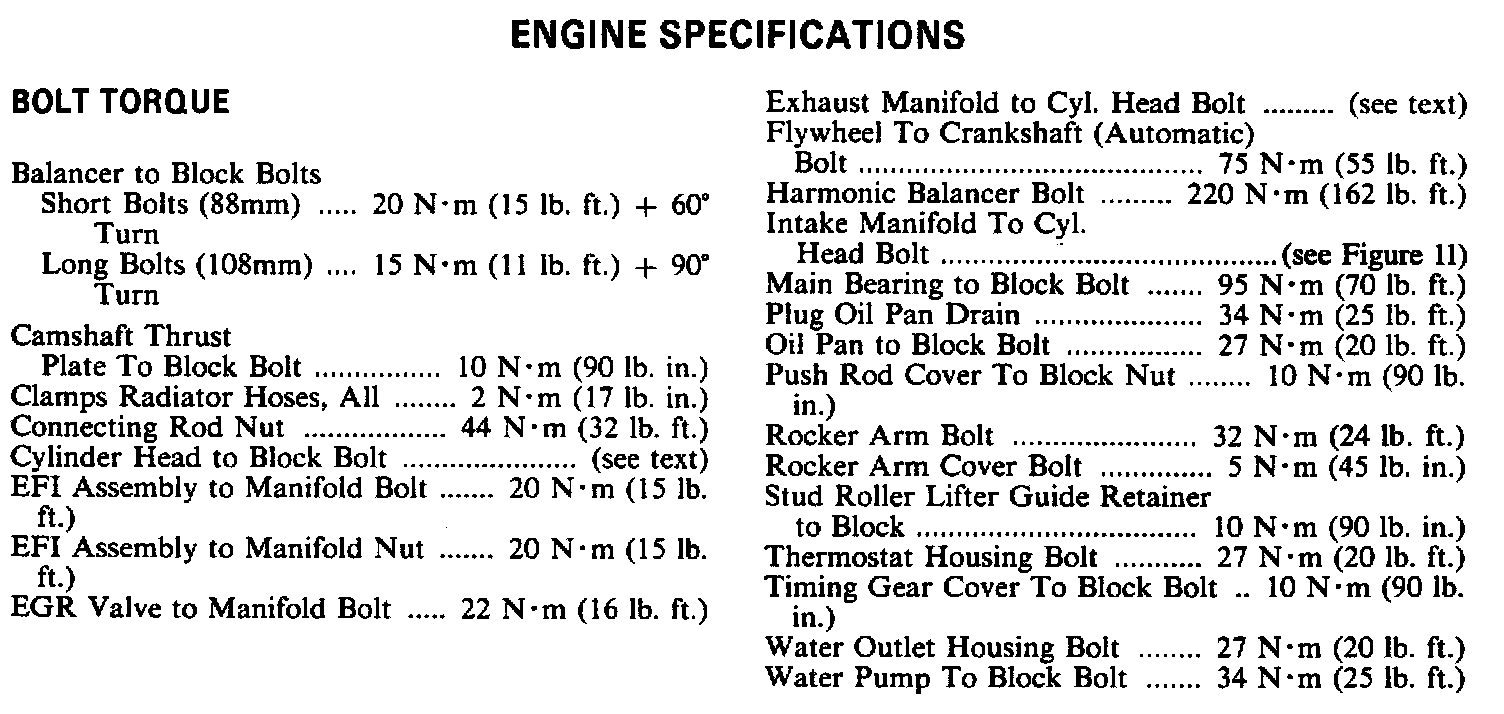

Torque Specifications:

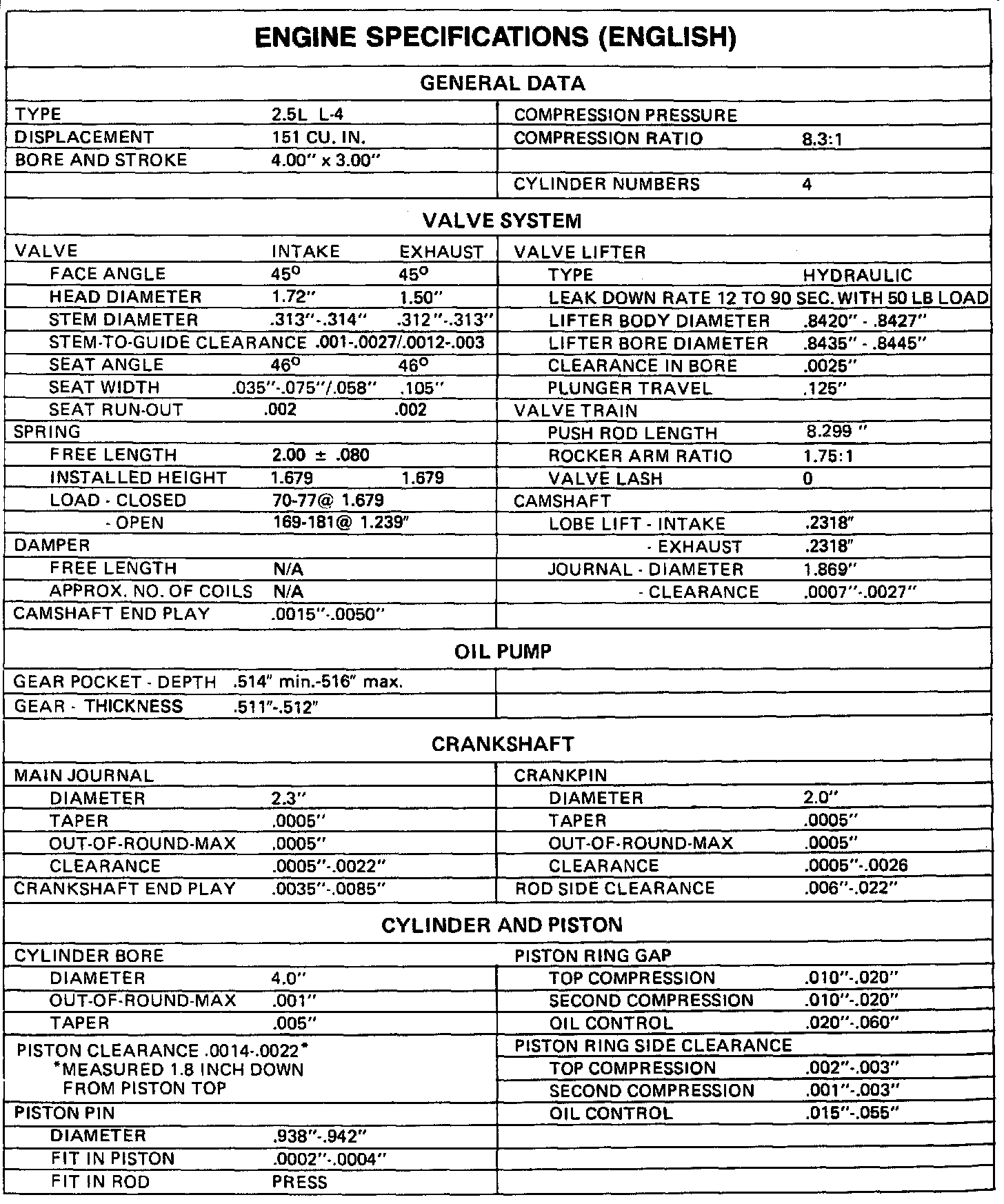

Engine Specifications:

Continued Engine Specifications:

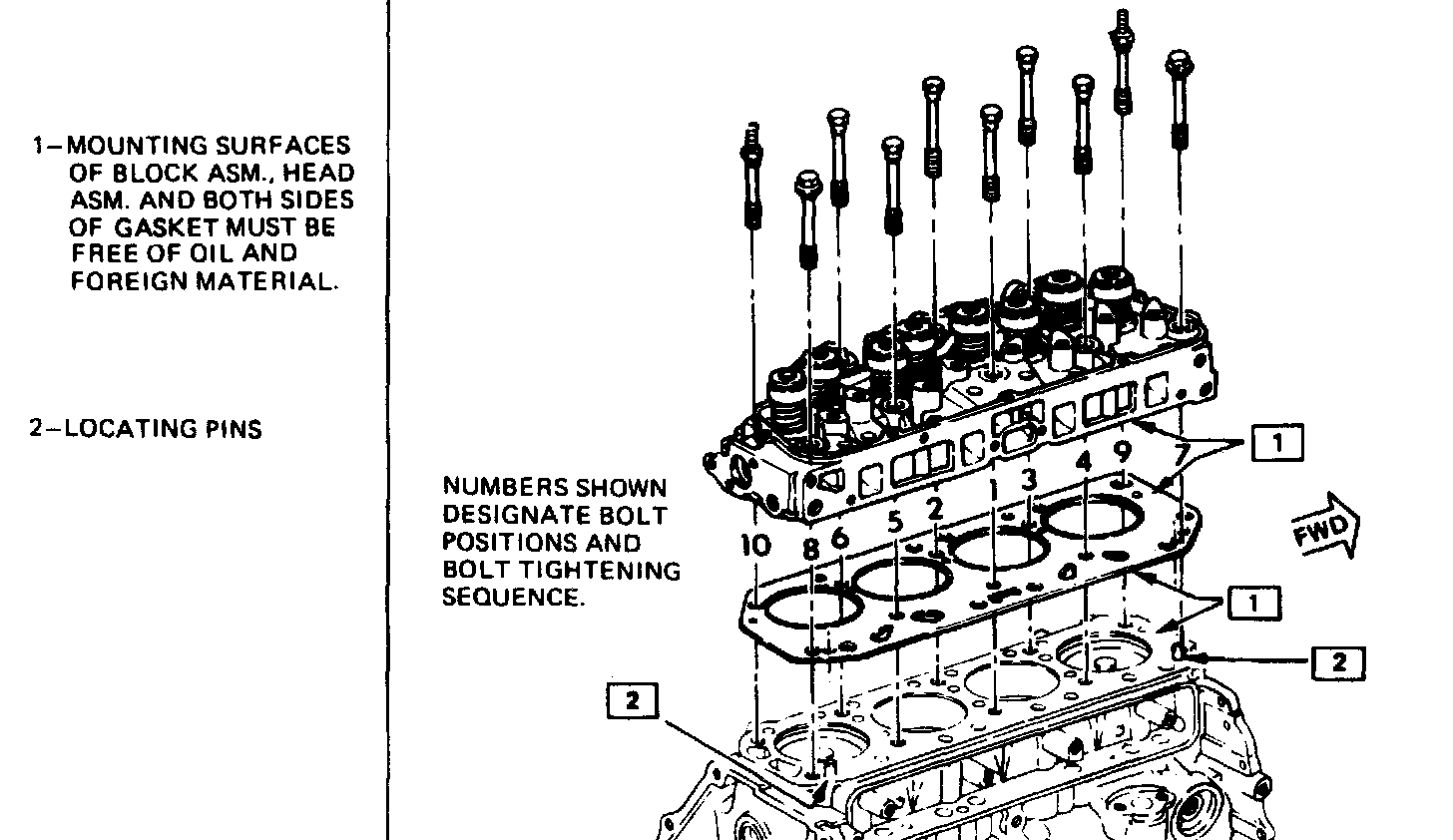

Cylinder Head Sequence:
