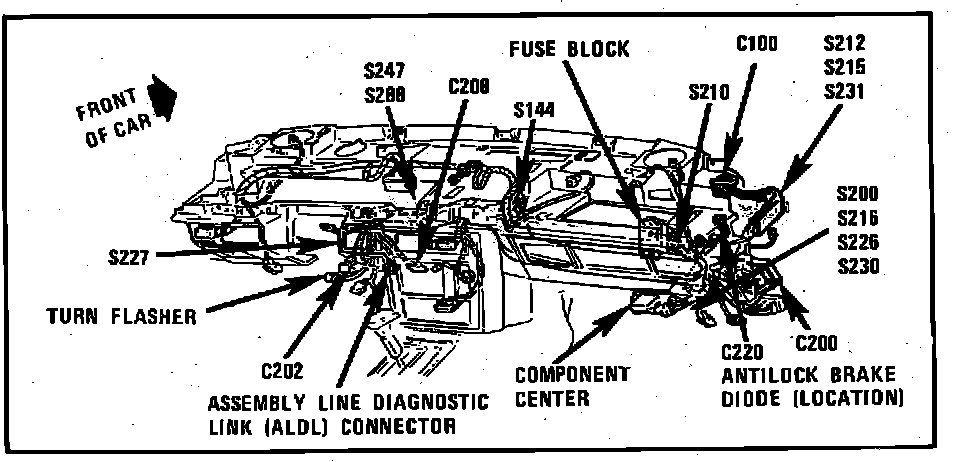

Anti-Lock Brake Diode
Anti-Lock Brake Diode
Assembly Line Diagnostic Link (ALDL) Connector.:
Behind RH Side Of I/P
Applicable to: 1989 Cutlass Supreme
