Engine Control Module

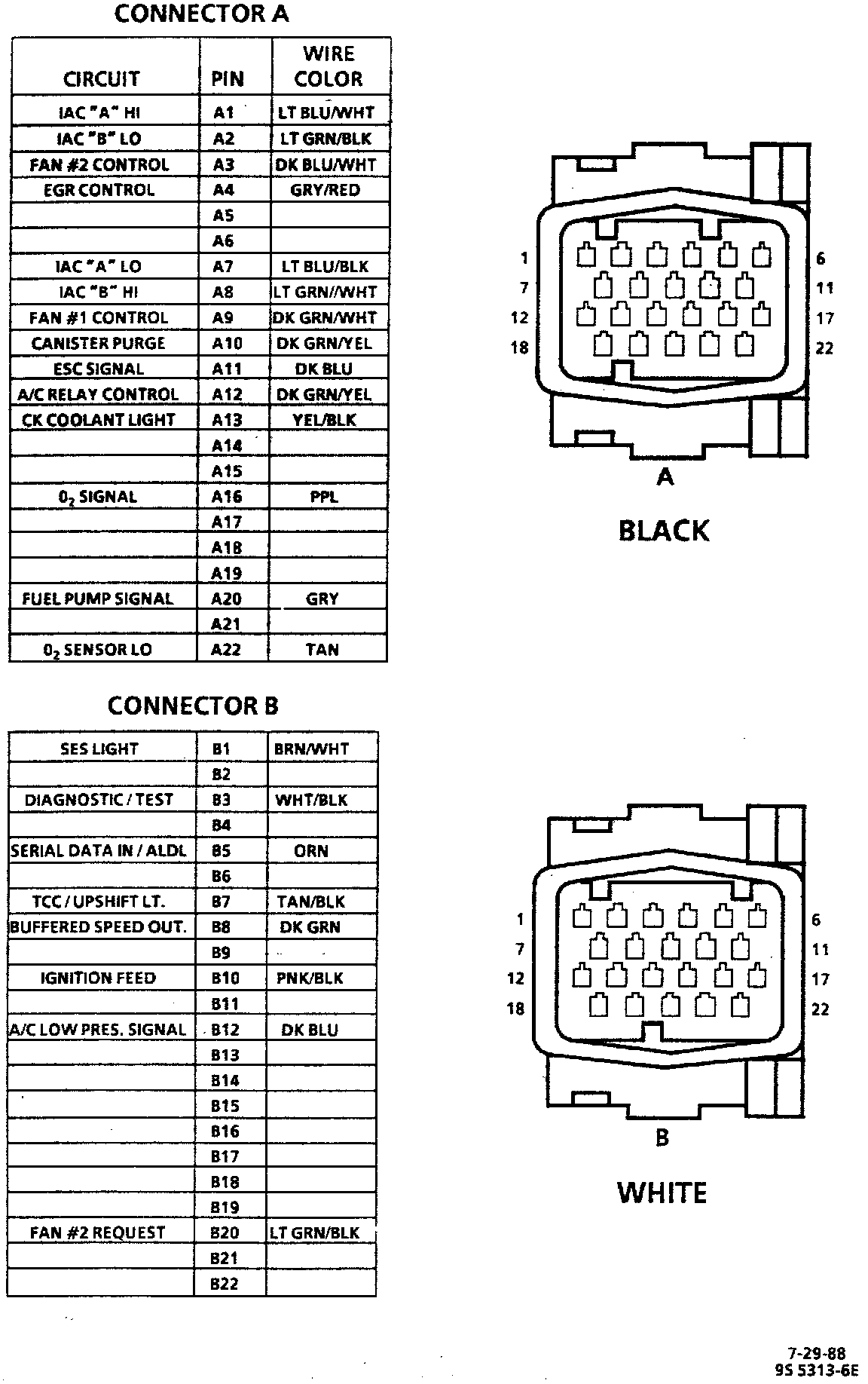

ECM Connector Terminal End View (1 Of 2):

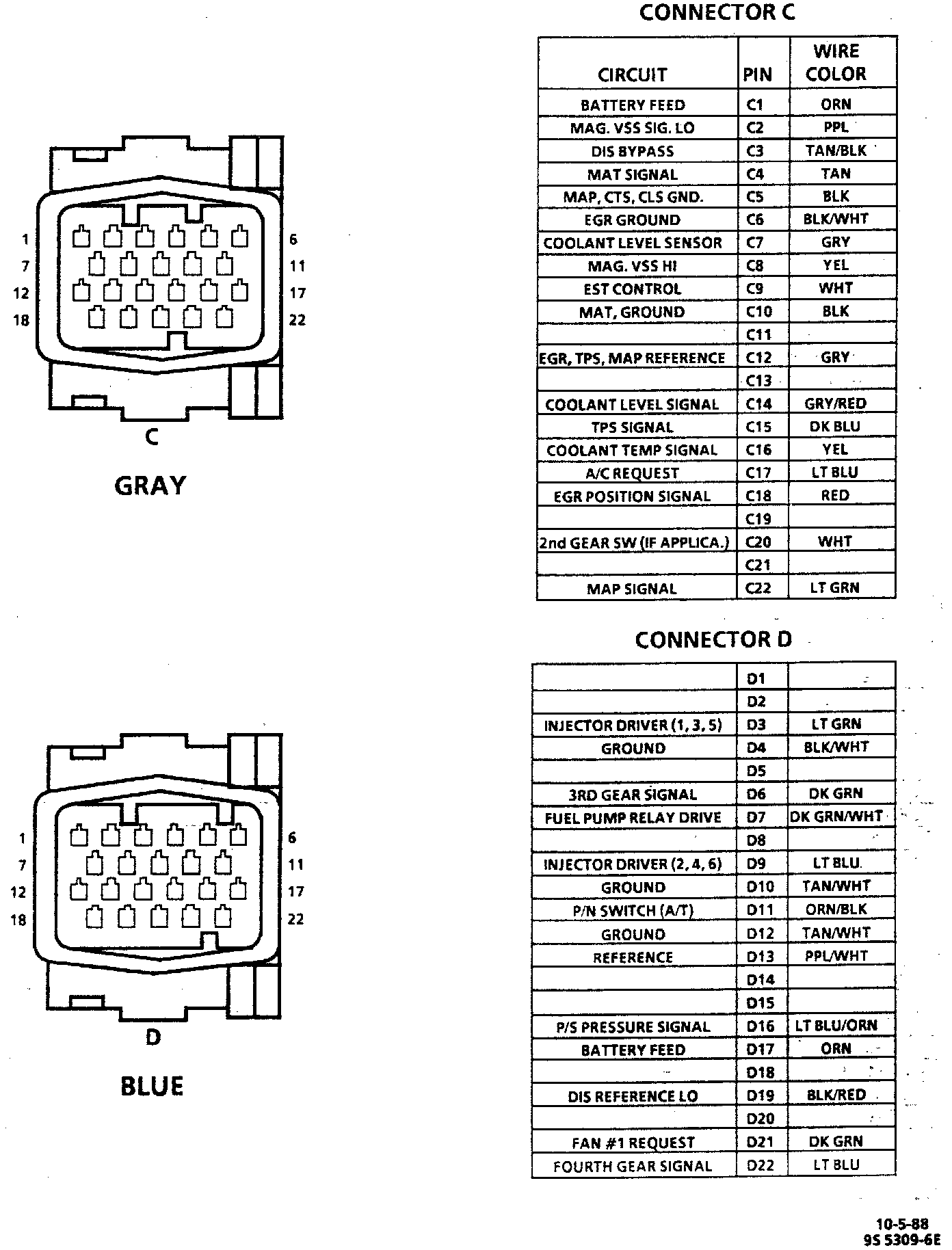

ECM Connector Terminal End View (2 Of 2):
