Instrument Panel, Gauges and Warning Indicators
>>
Base (Without Gages)
Base (Without Gages)

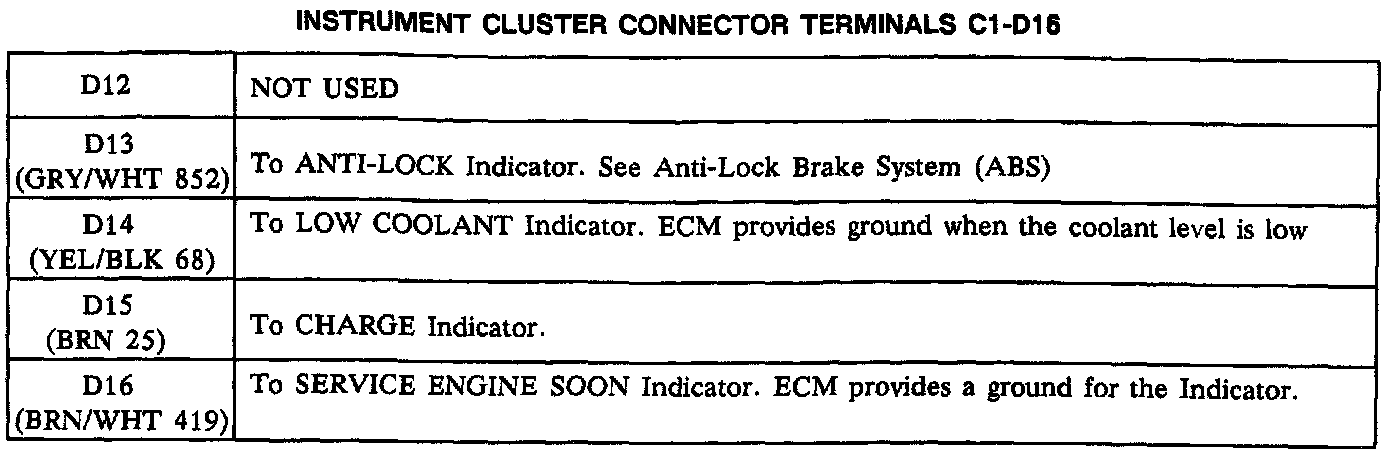

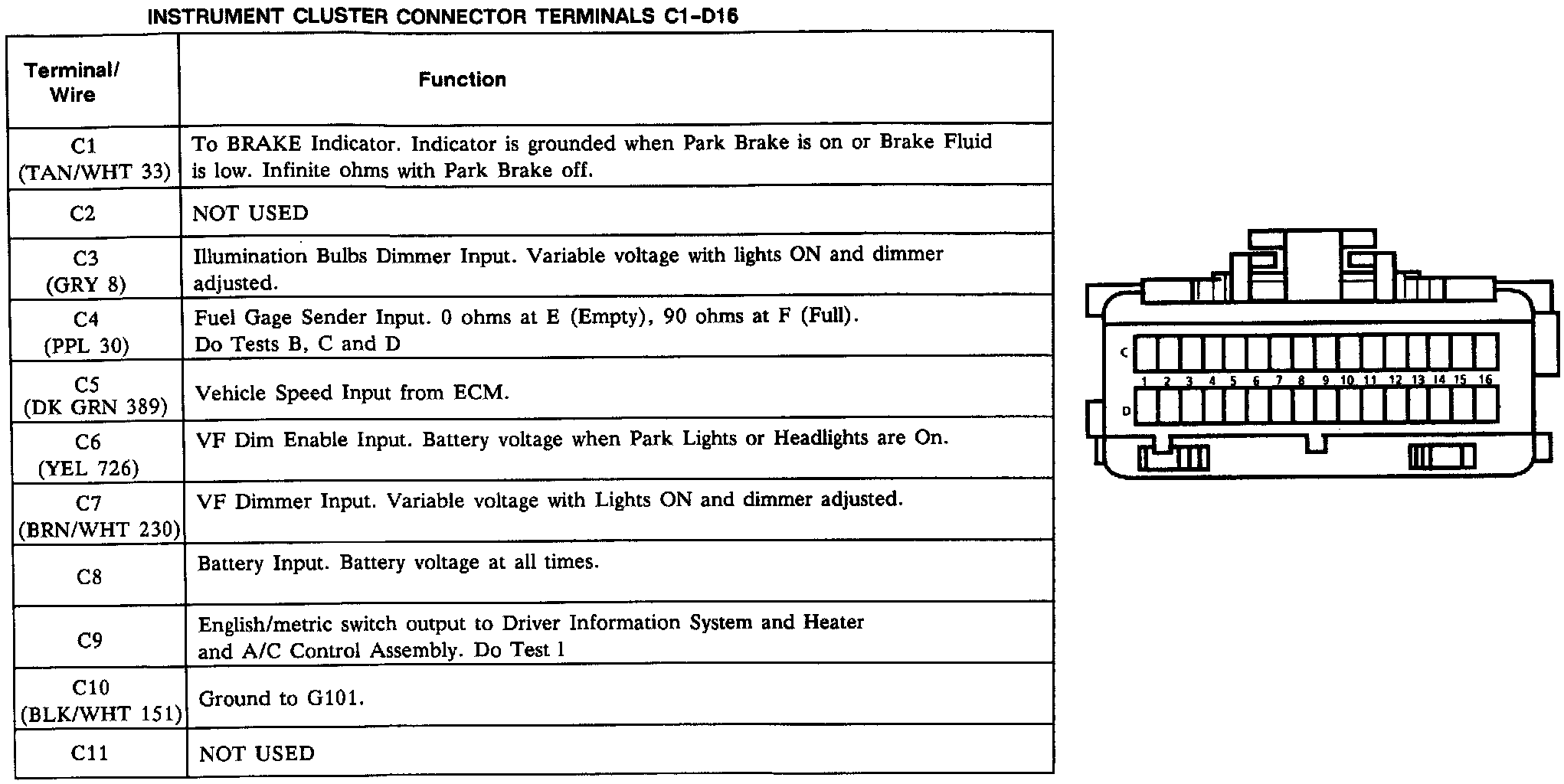

Connector View:
