Home >> Oldsmobile >> 1989 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn >> Less Fog Lights

Less Fog Lights

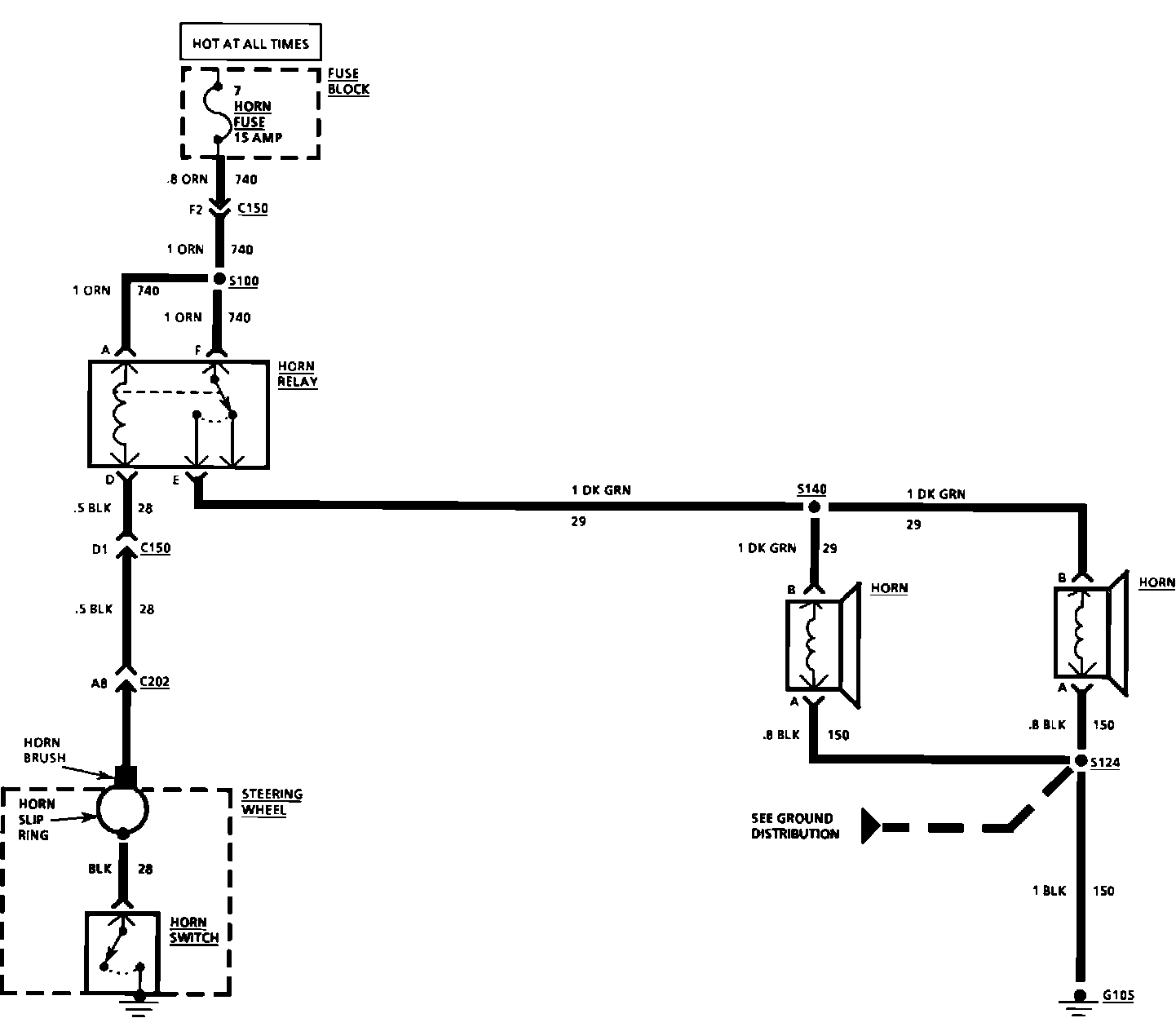

Horns System Wiring Circuit:
