Home >> Oldsmobile >> 1989 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn >> With Fog Lights

With Fog Lights

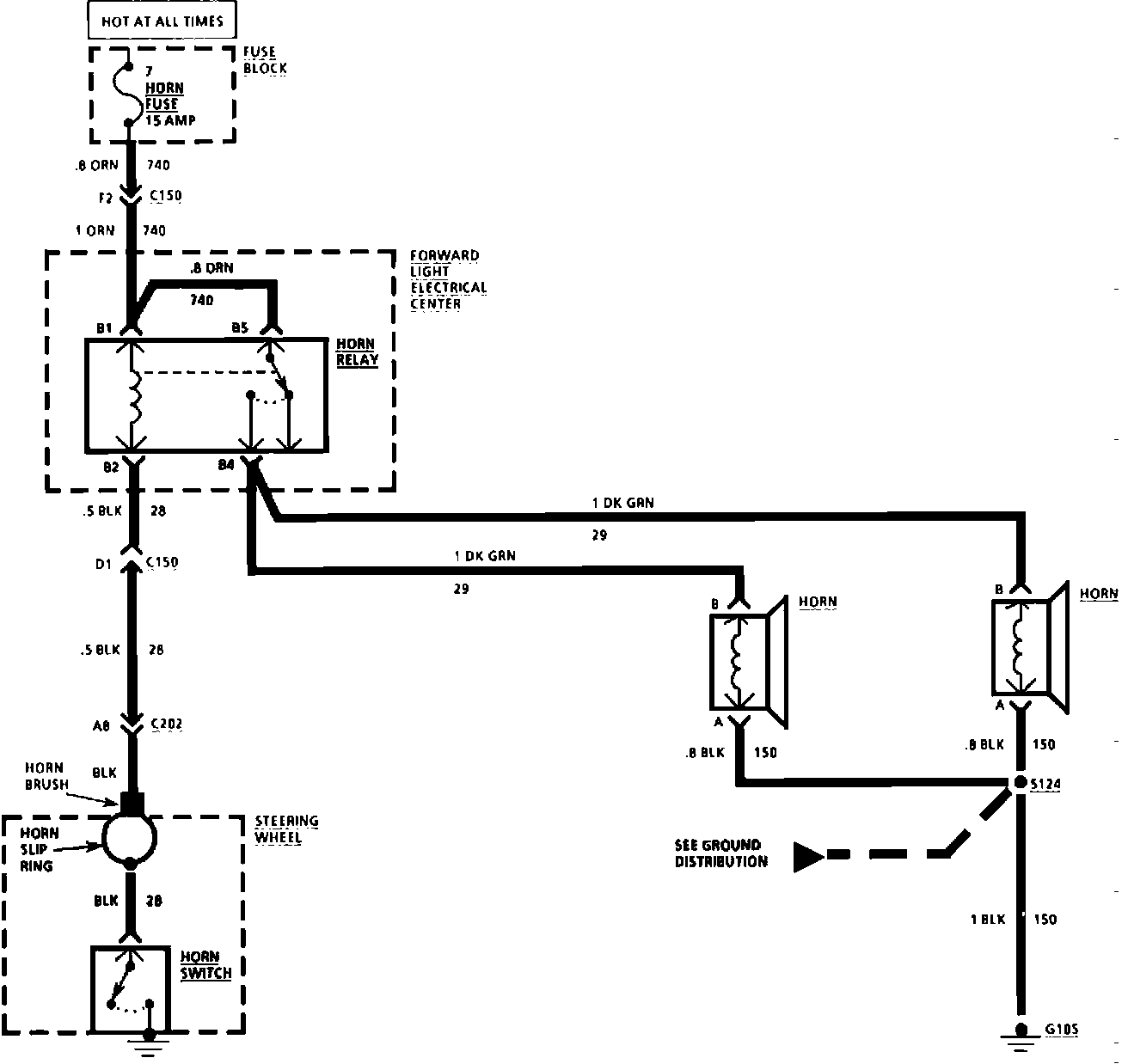

Horn w/Fog Lamps:
