Driver/Vehicle Information Display

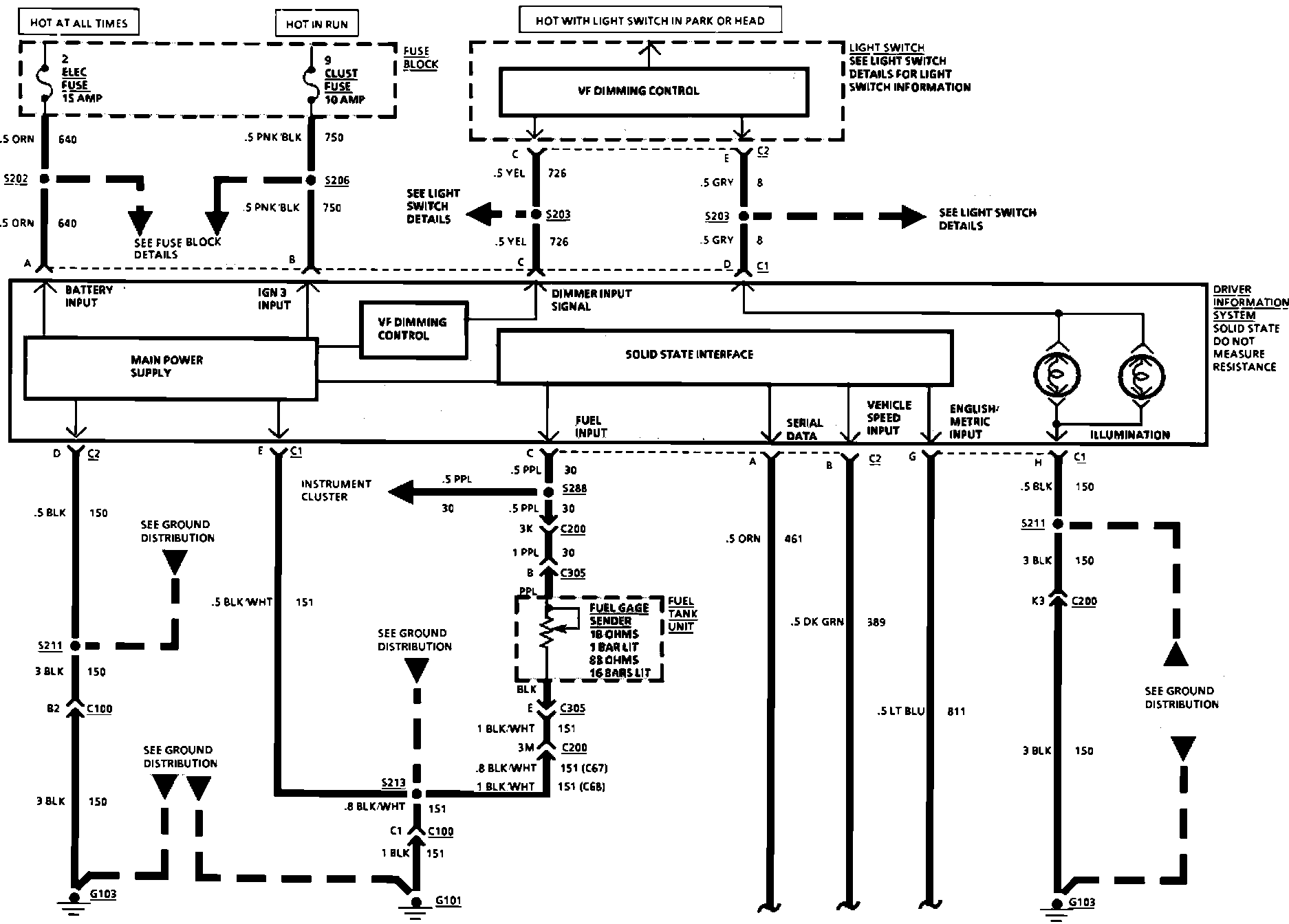

Driver Information System Part 1 Of 2:

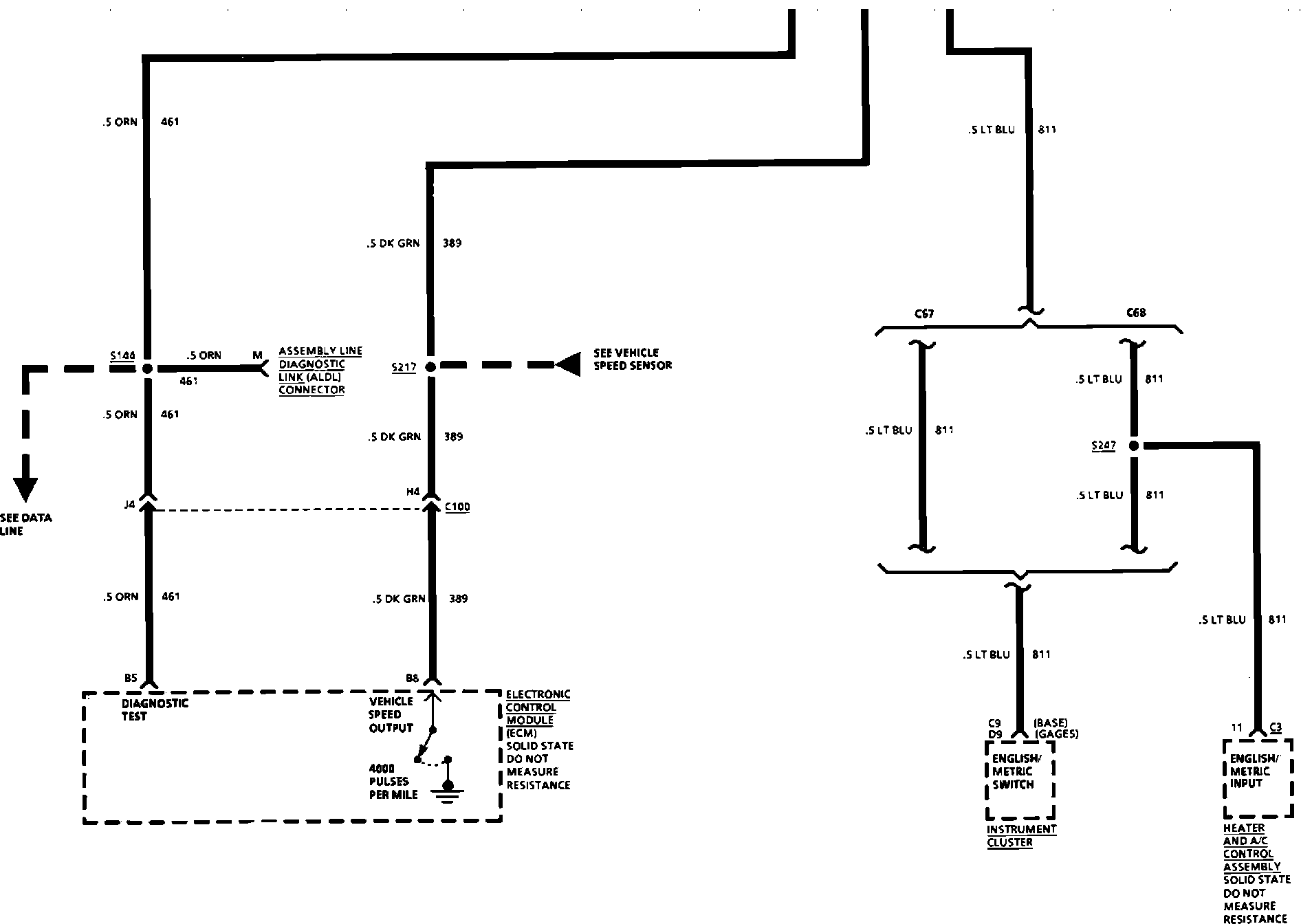

Driver Information System Part 2 Of 2:
