Home >> Oldsmobile >> 1989 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Six Speakers

Six Speakers

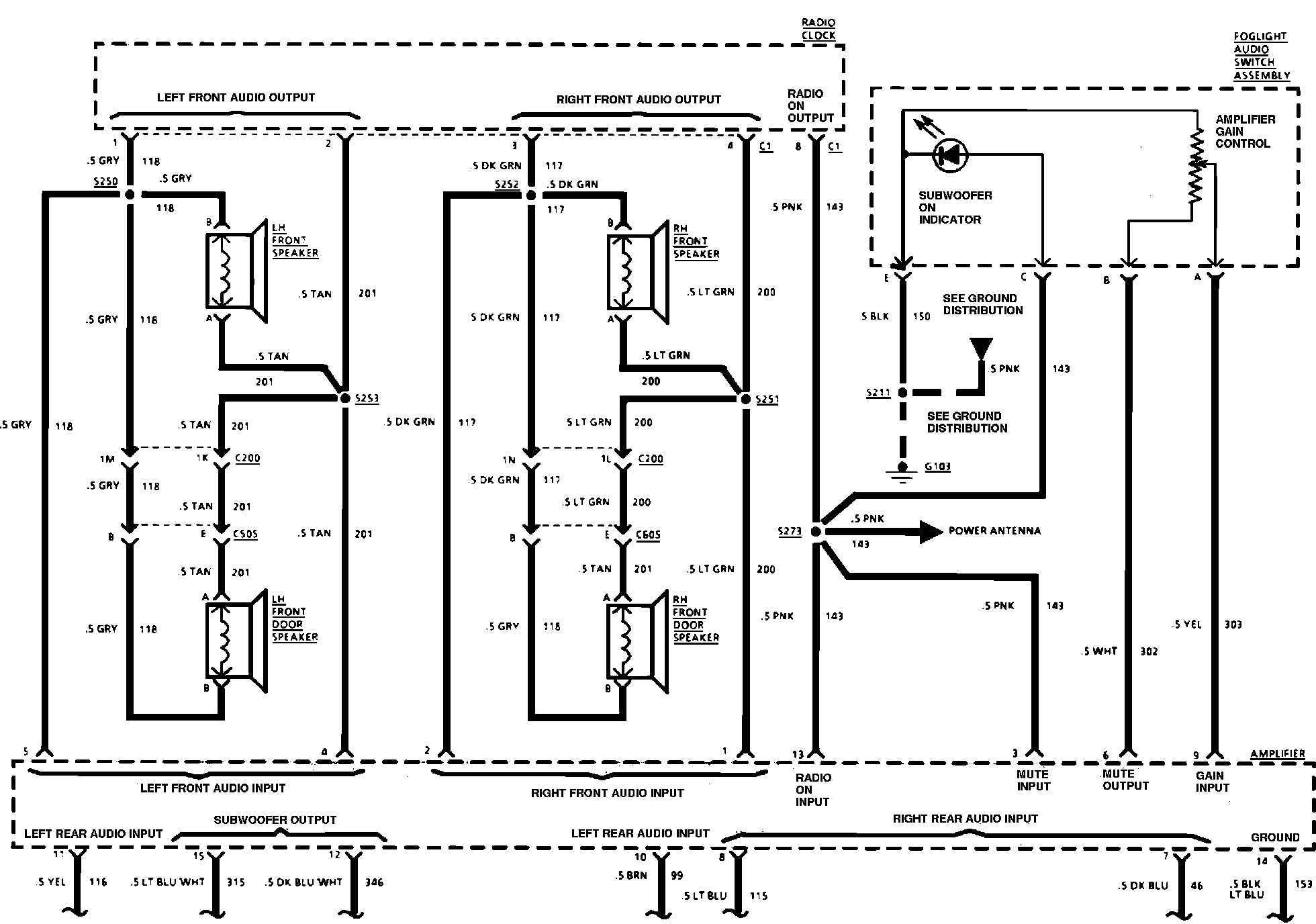

Radio w/6-Speakers (Part 1 of 2):

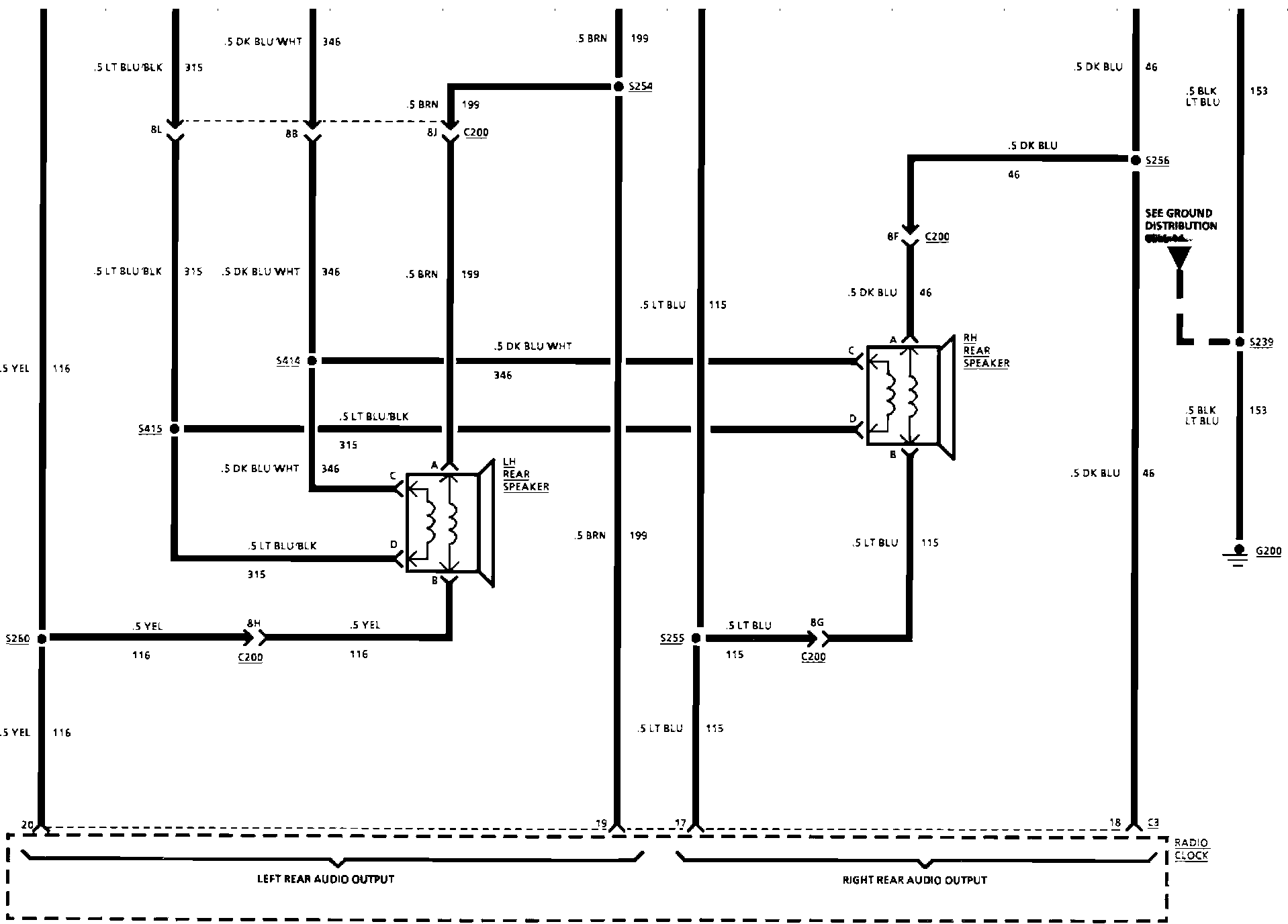

Radio w/6-Speakers (Part 2 of 2):
