System Diagram
System Diagram

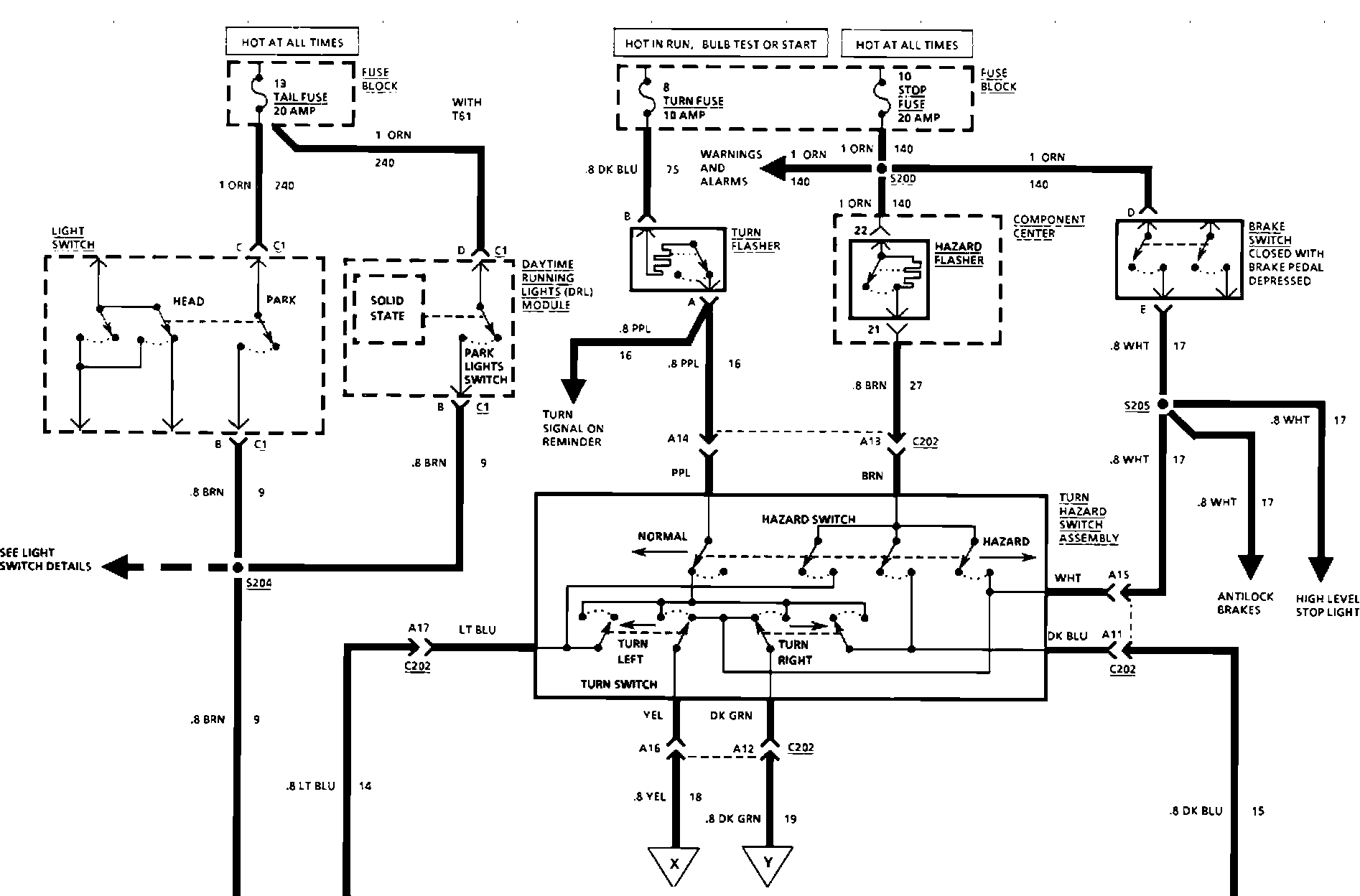

Exterior Lights Turn, Stop & Hazard Part 1 Of 2:

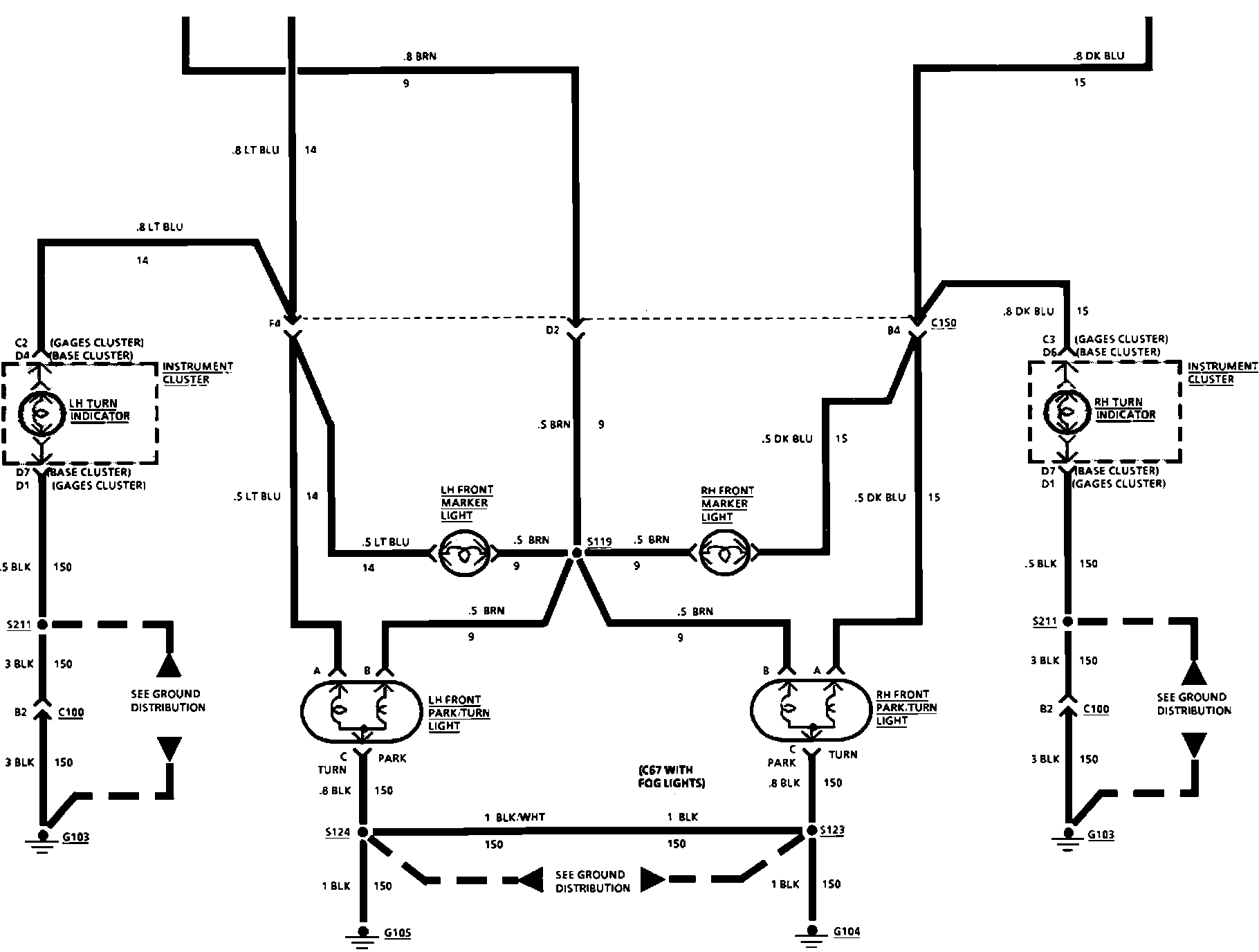

Exterior Lights Turn, Stop & Hazard Part 2 Of 2:
