Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

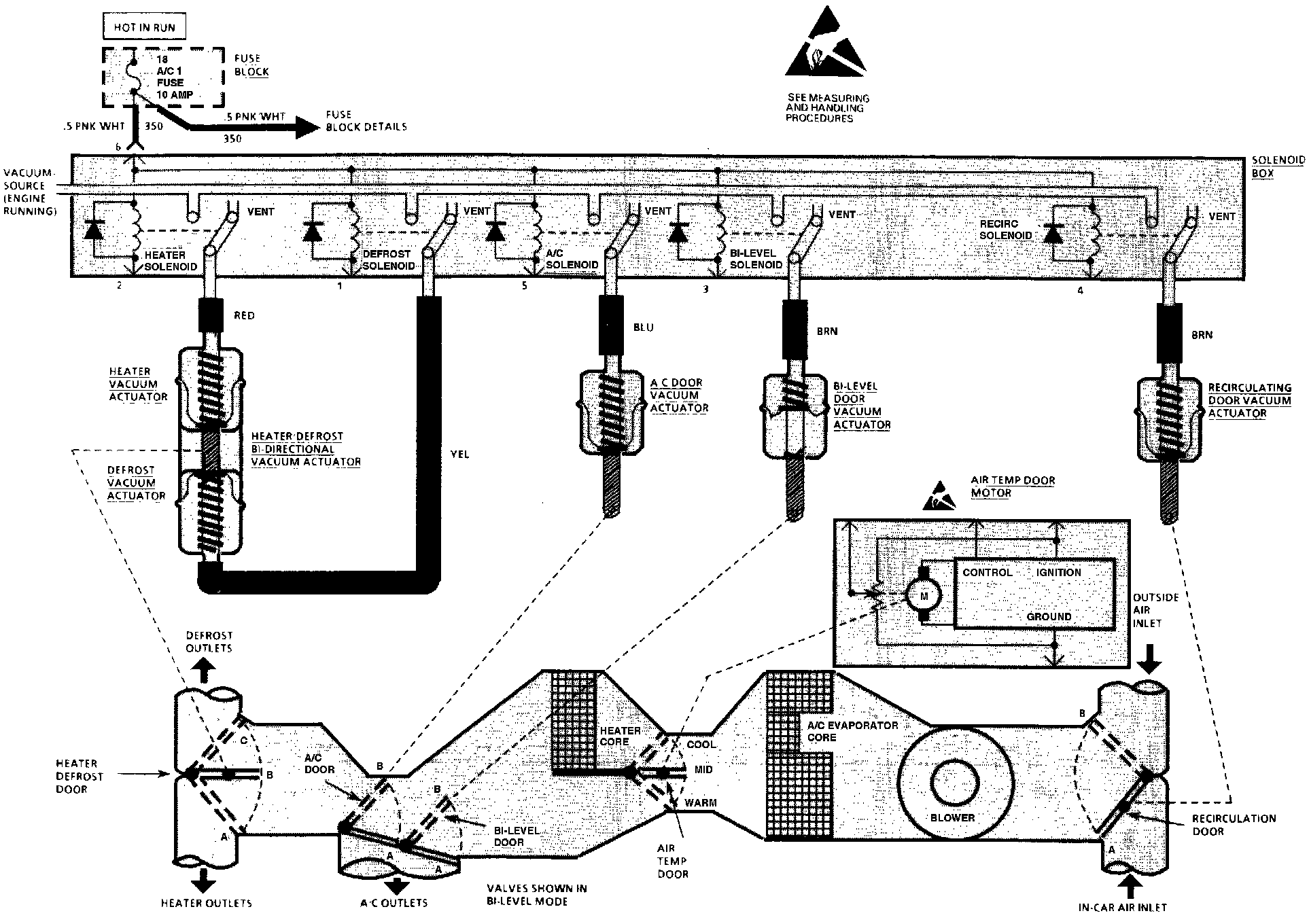

Air Delivery & temperature Controls Part 2 Of 3:
