Home >> Oldsmobile >> 1989 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

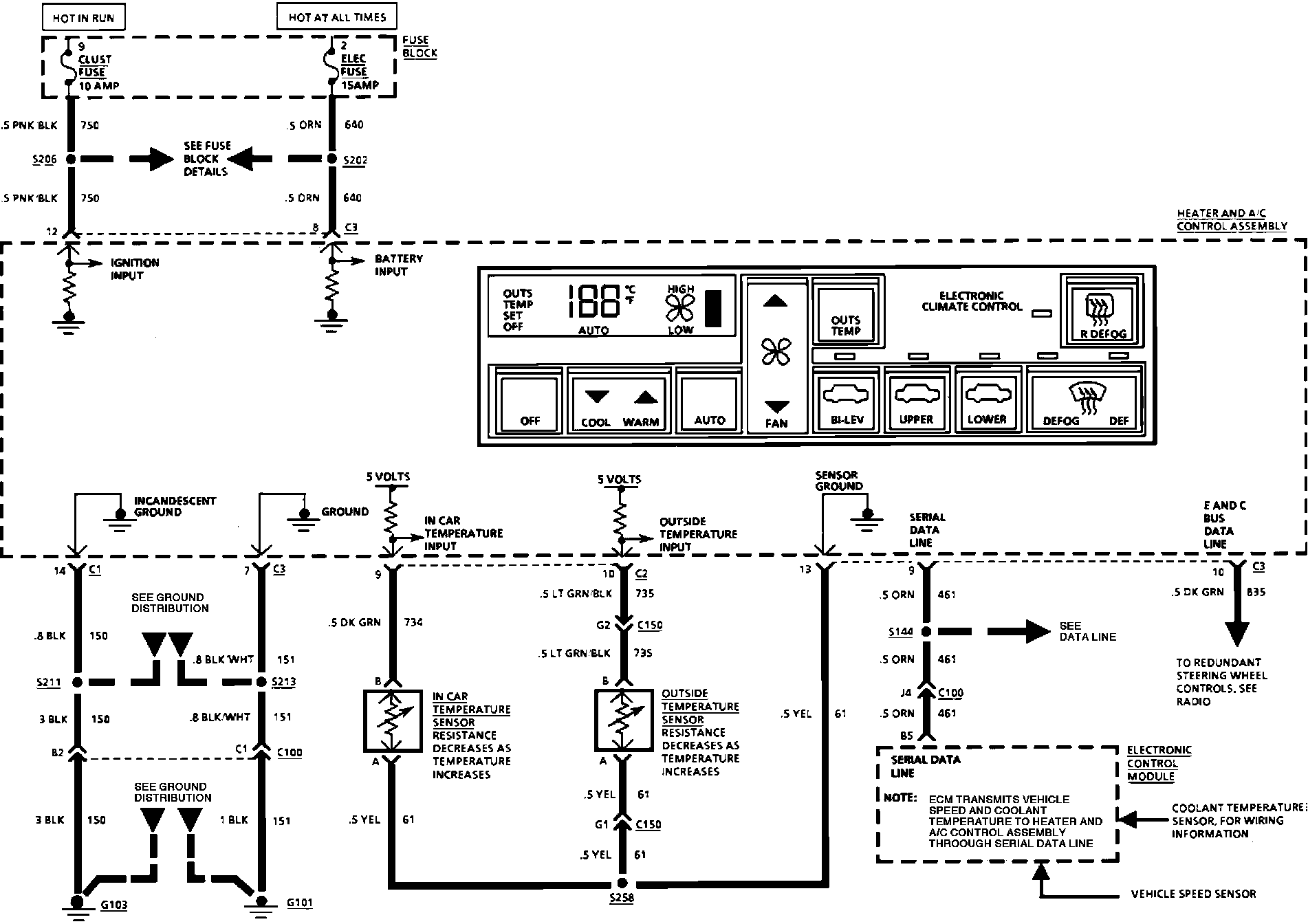

Air Delivery & temperature Controls Part 1 Of 2:
