Home
>>
Oldsmobile
>>
1989
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Diagnostic Charts/Tests
>>
Air Delivery & Temperature Controls
>>
With HVAC System - Manual
>>
Test C - Air Temperature Valve Motor
>>
Table 1 of 2
Table 1 of 2

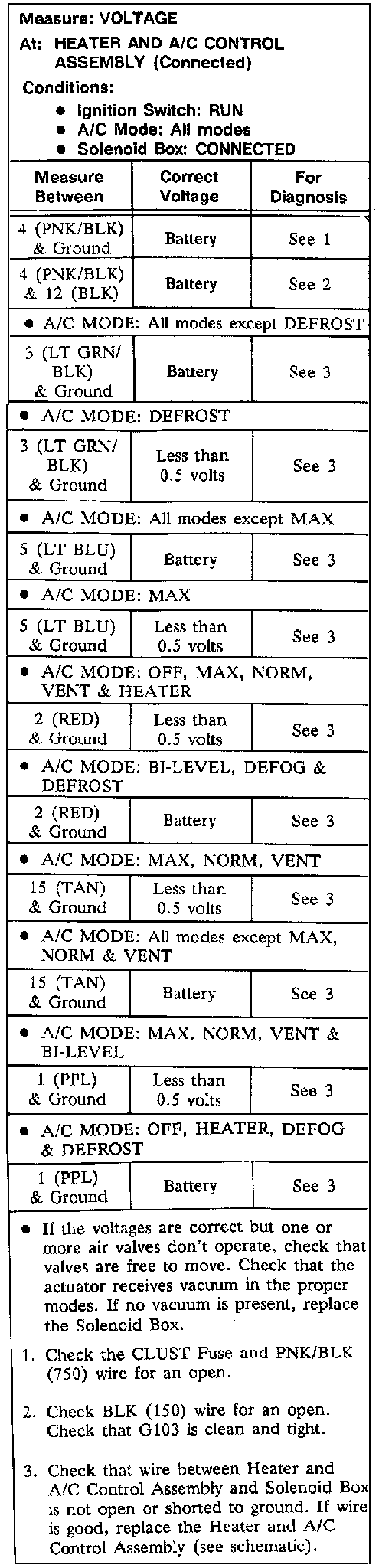

Heater & A/C Control Assembly Solenoid Control Test:
