Engine Controls

Power, Ground, ALDL, and Service Engine Soon Indicator:

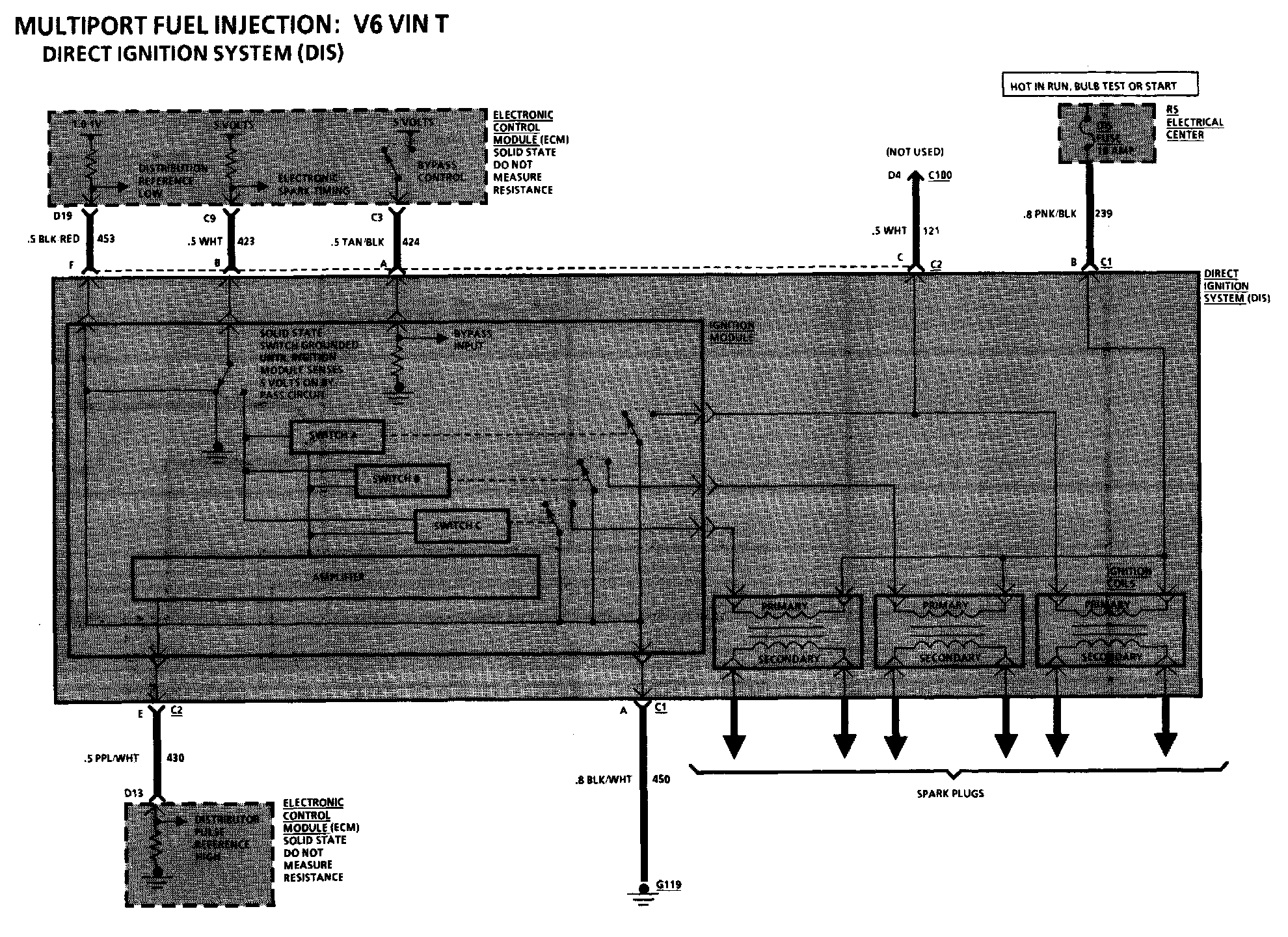

Direct Ignition System (DIS):

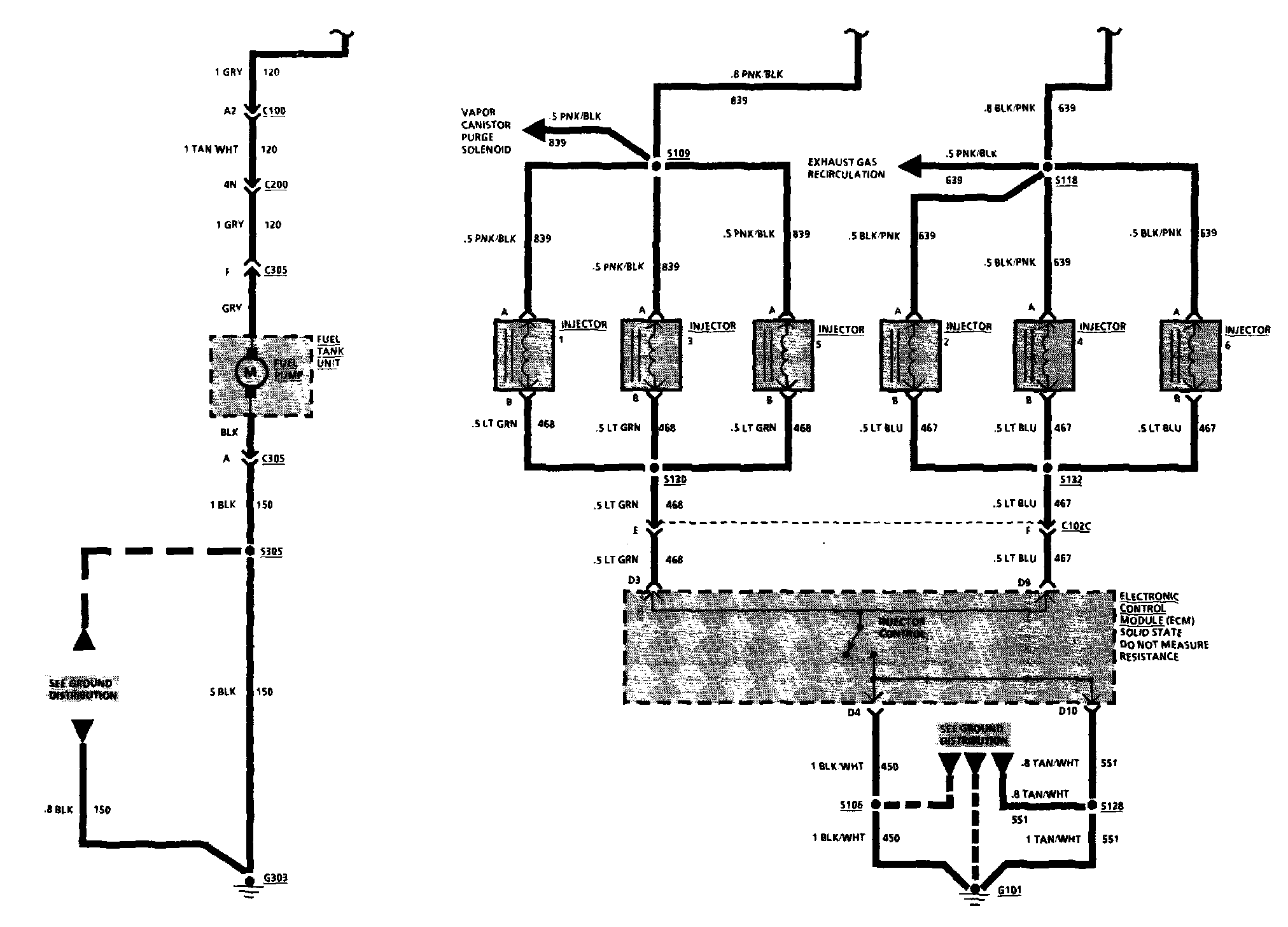

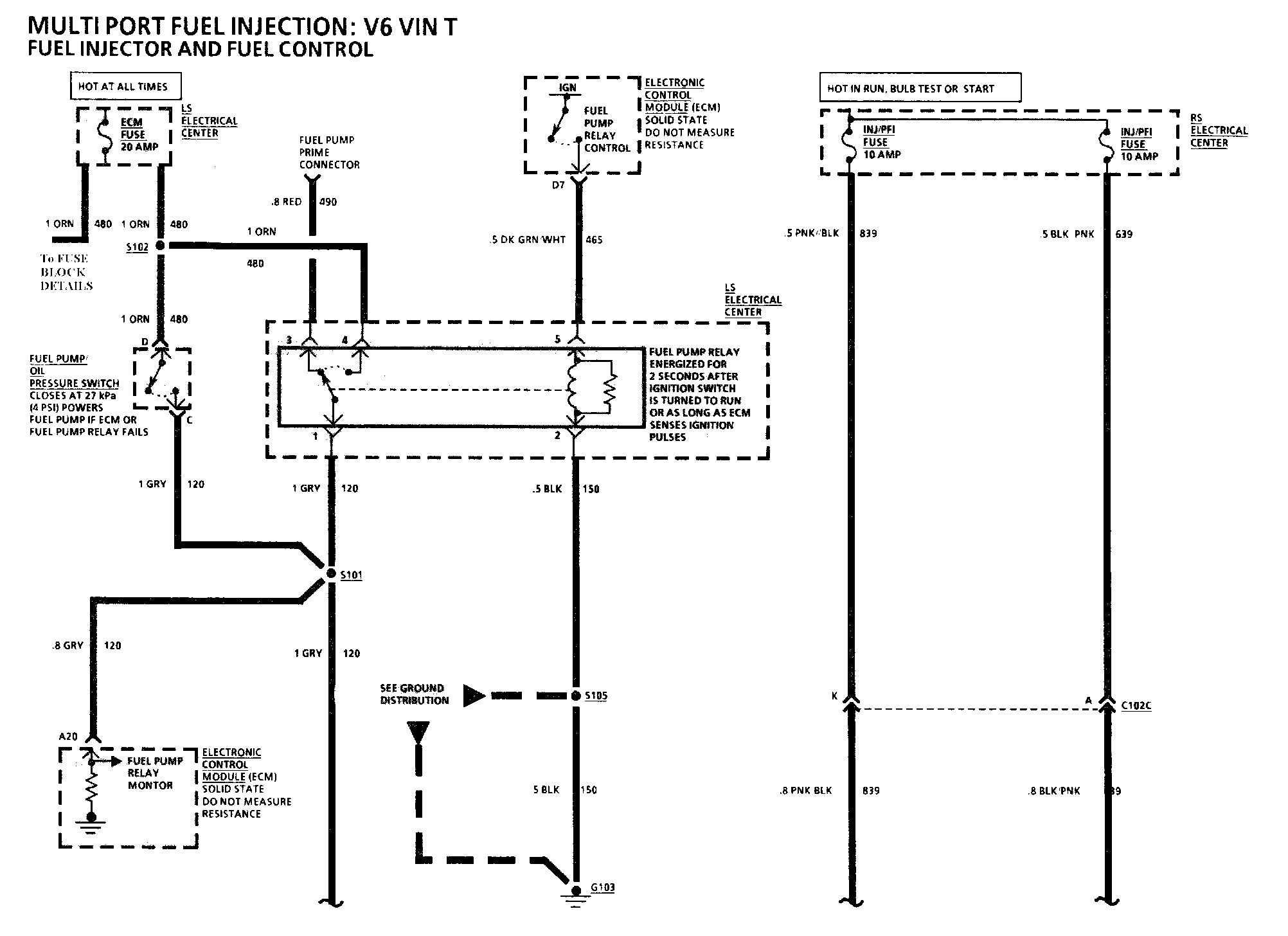

Fuel Injectors and Fuel Control:

Fuel Injectors and Fuel Control:

Engine Data Sensors:

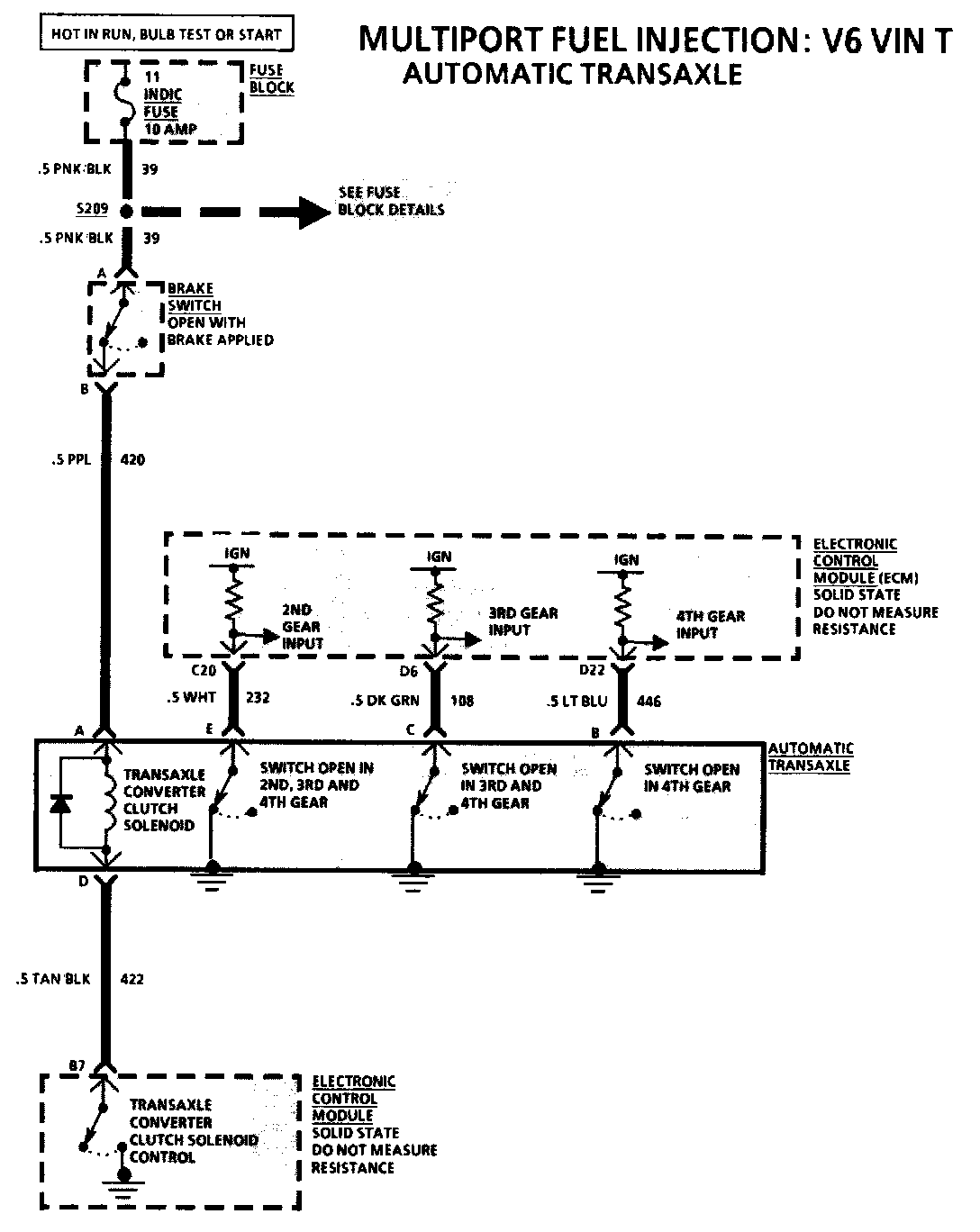

Automatic Transaxle:

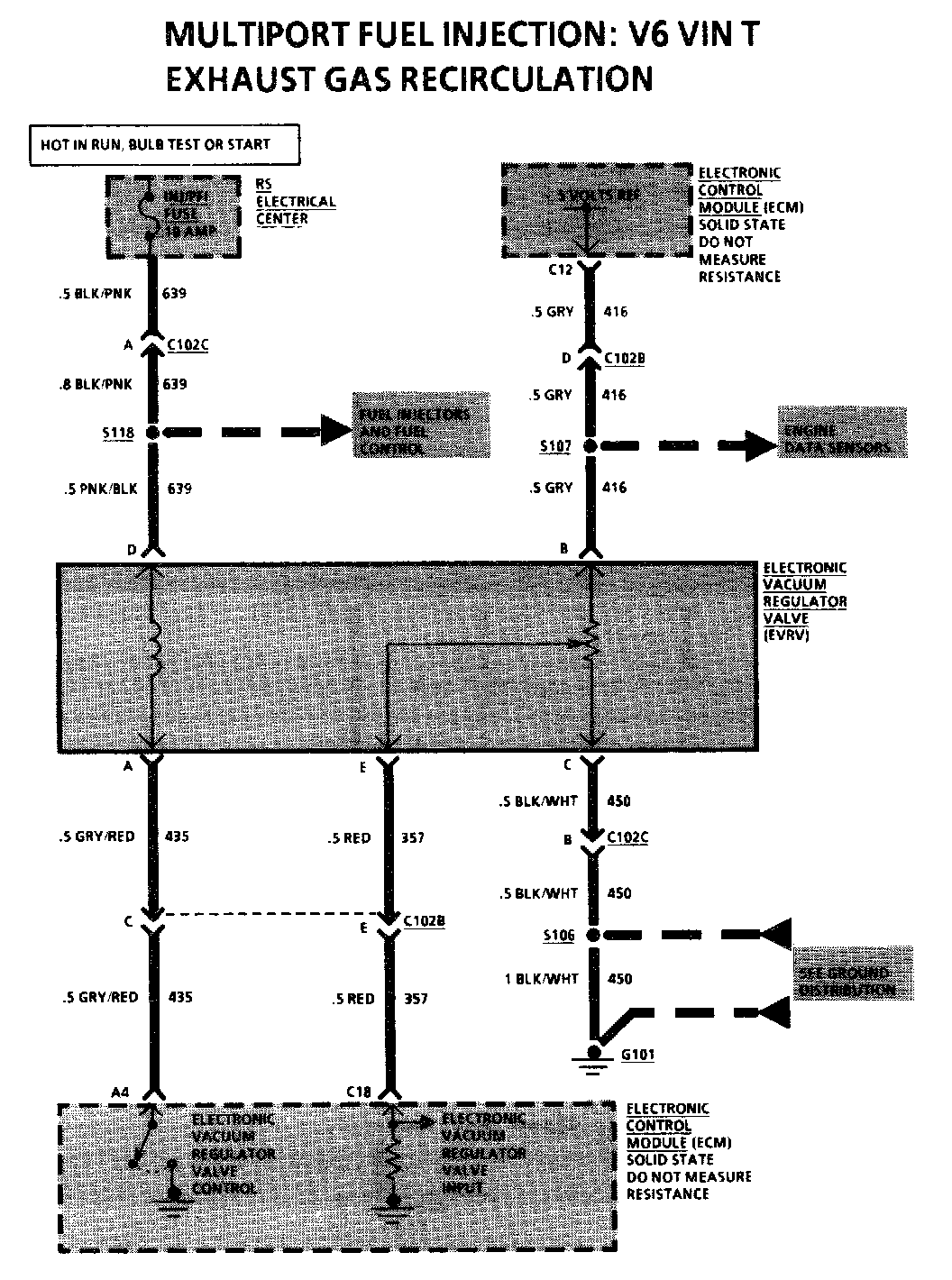

Exhaust Gas Recirculation:

Vapor Cannister Purge Solenoid and Upshift Indicator:

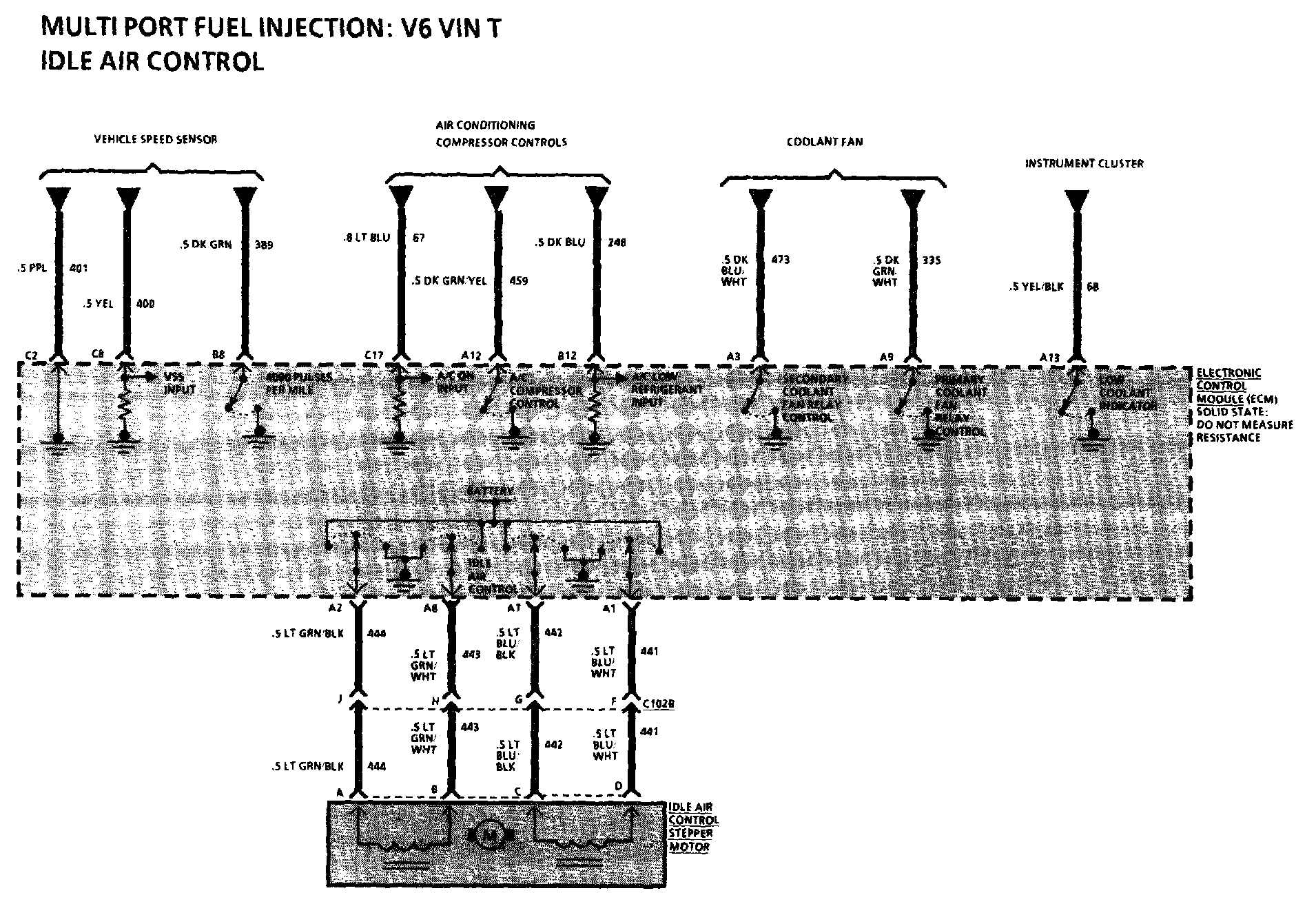

Idle Air Control:
