Power Locks
>>
Without 36 Way Door Connector
Without 36 Way Door Connector

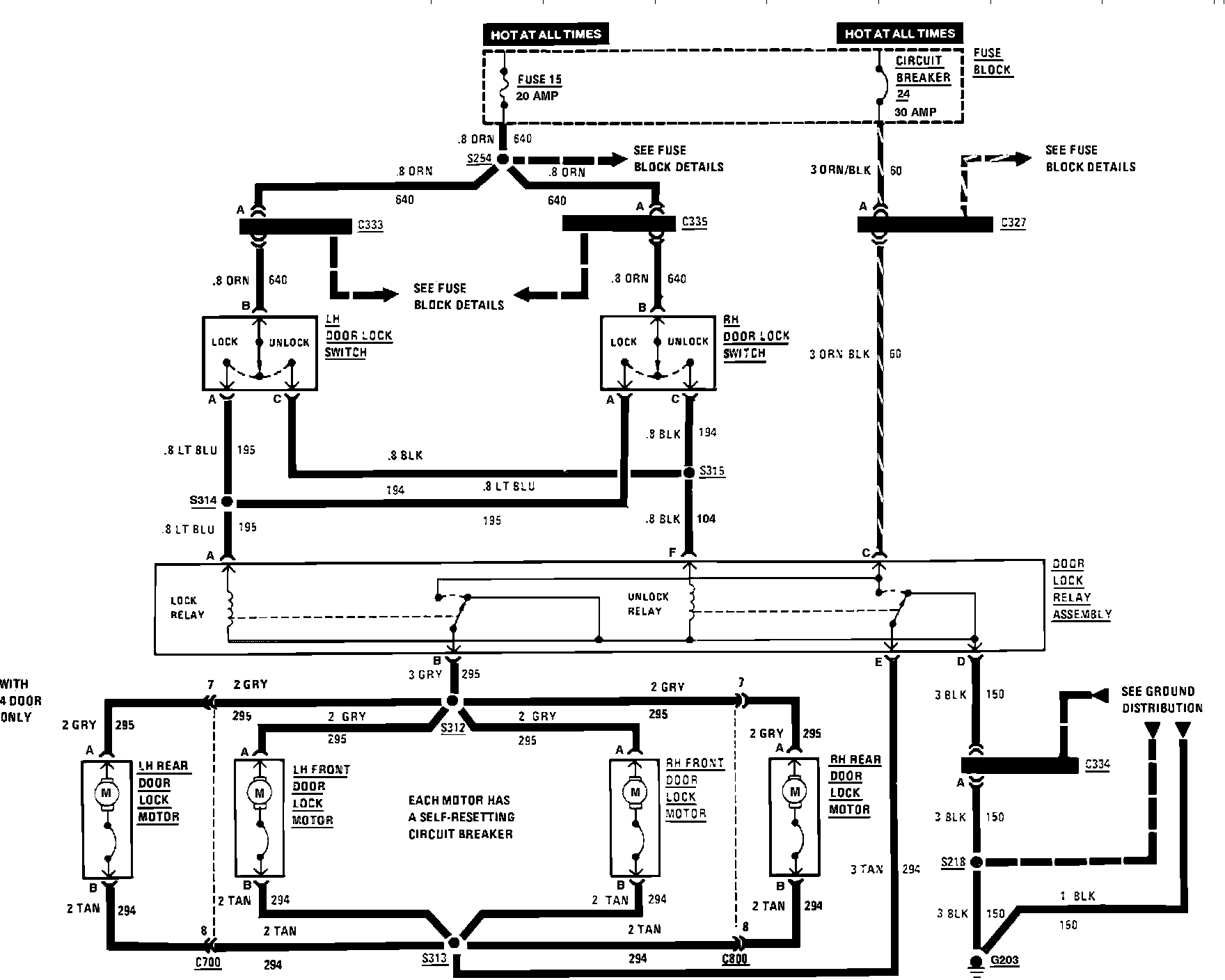

Power Door Locks Less 36-Way Door Connector:
