Brake Warning Indicator
>>
With Reminder Package
With Reminder Package

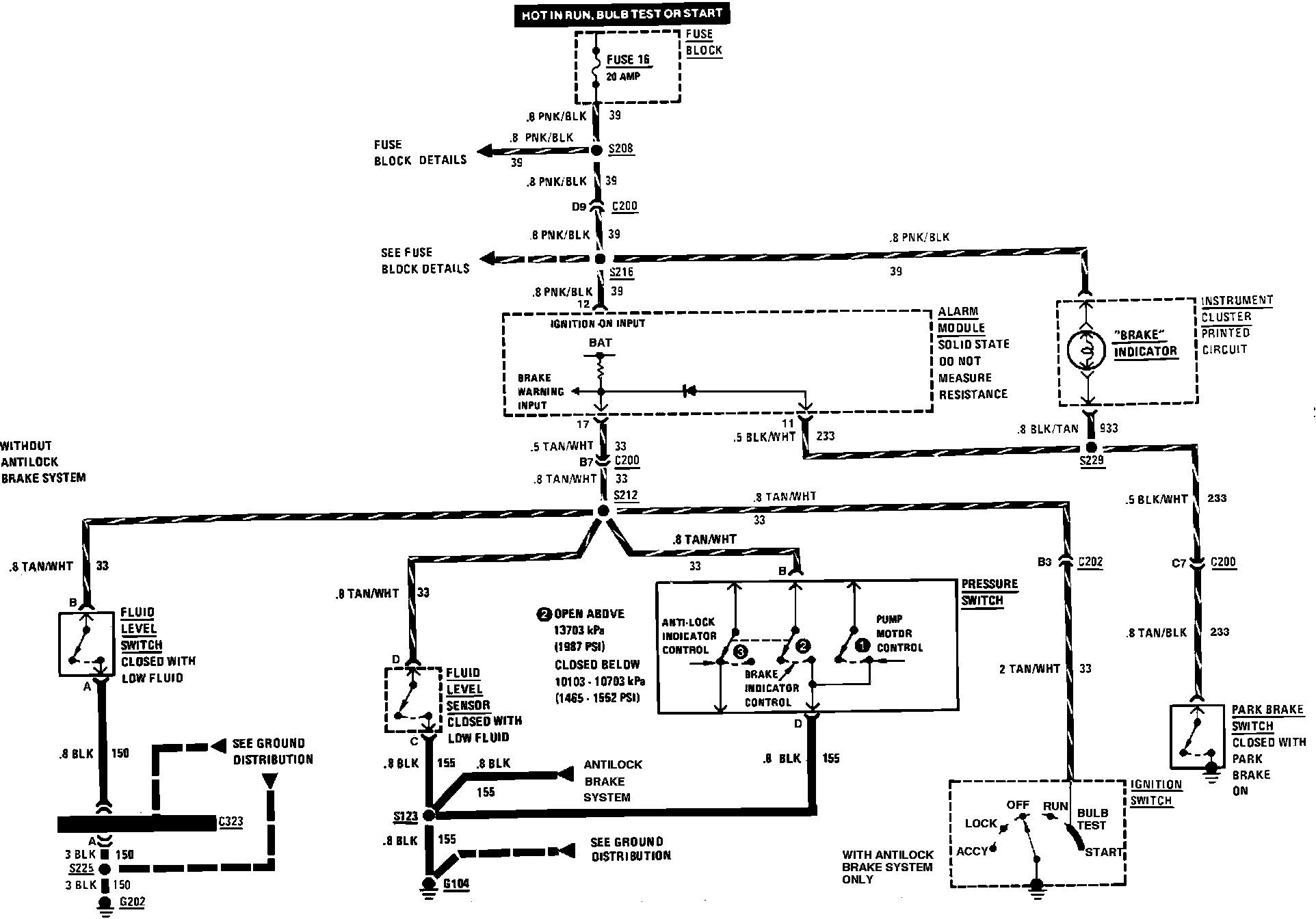

Brake Warning System (W/Reminder Package):
