Transmission Shift Position Indicator Lamp

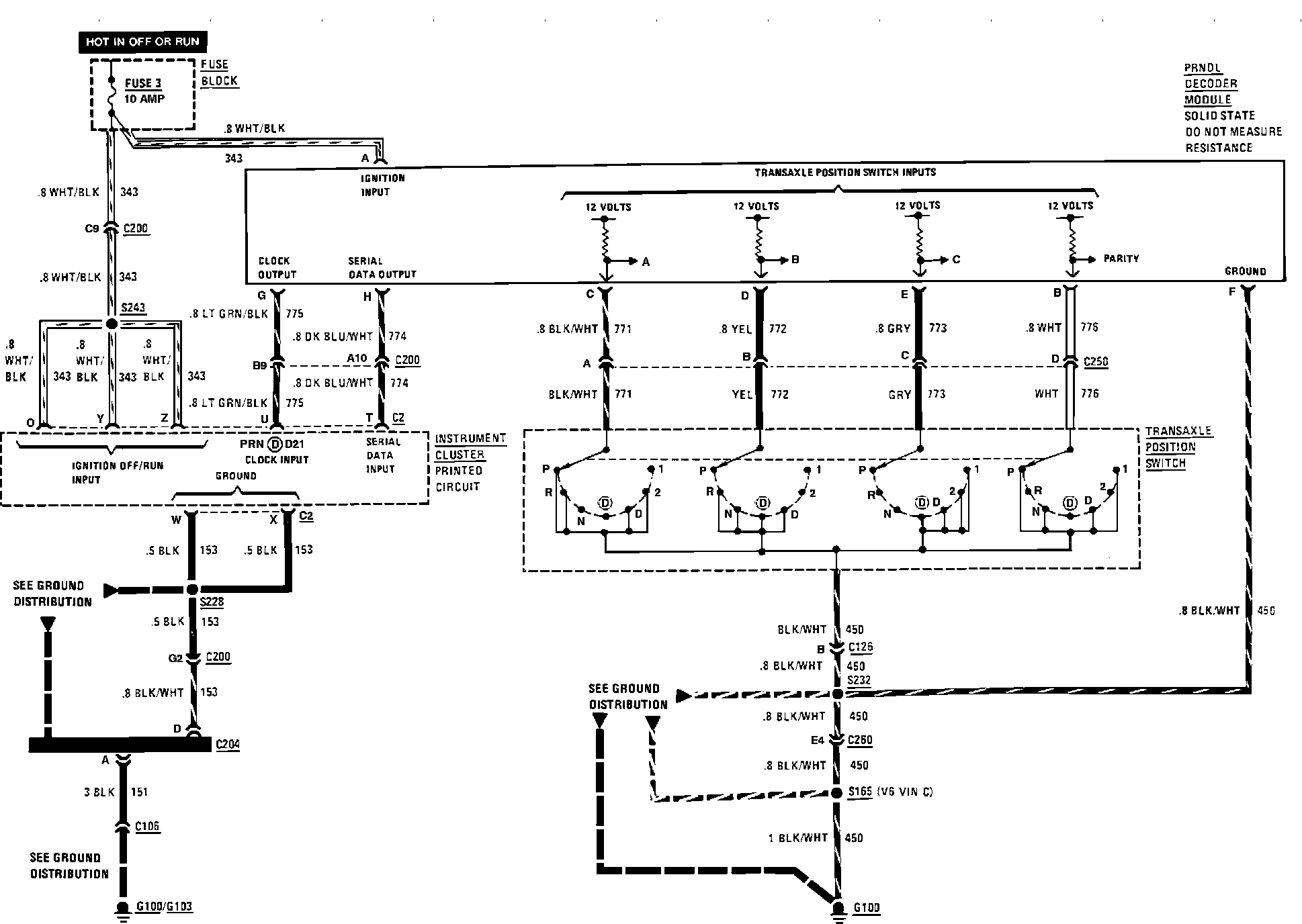

I/P Digital Cluster (Decoder Module, Indicators & transaxle Positon Switch):
