Oil Pressure Warning Lamp/Indicator
>>
Digital Cluster
Digital Cluster

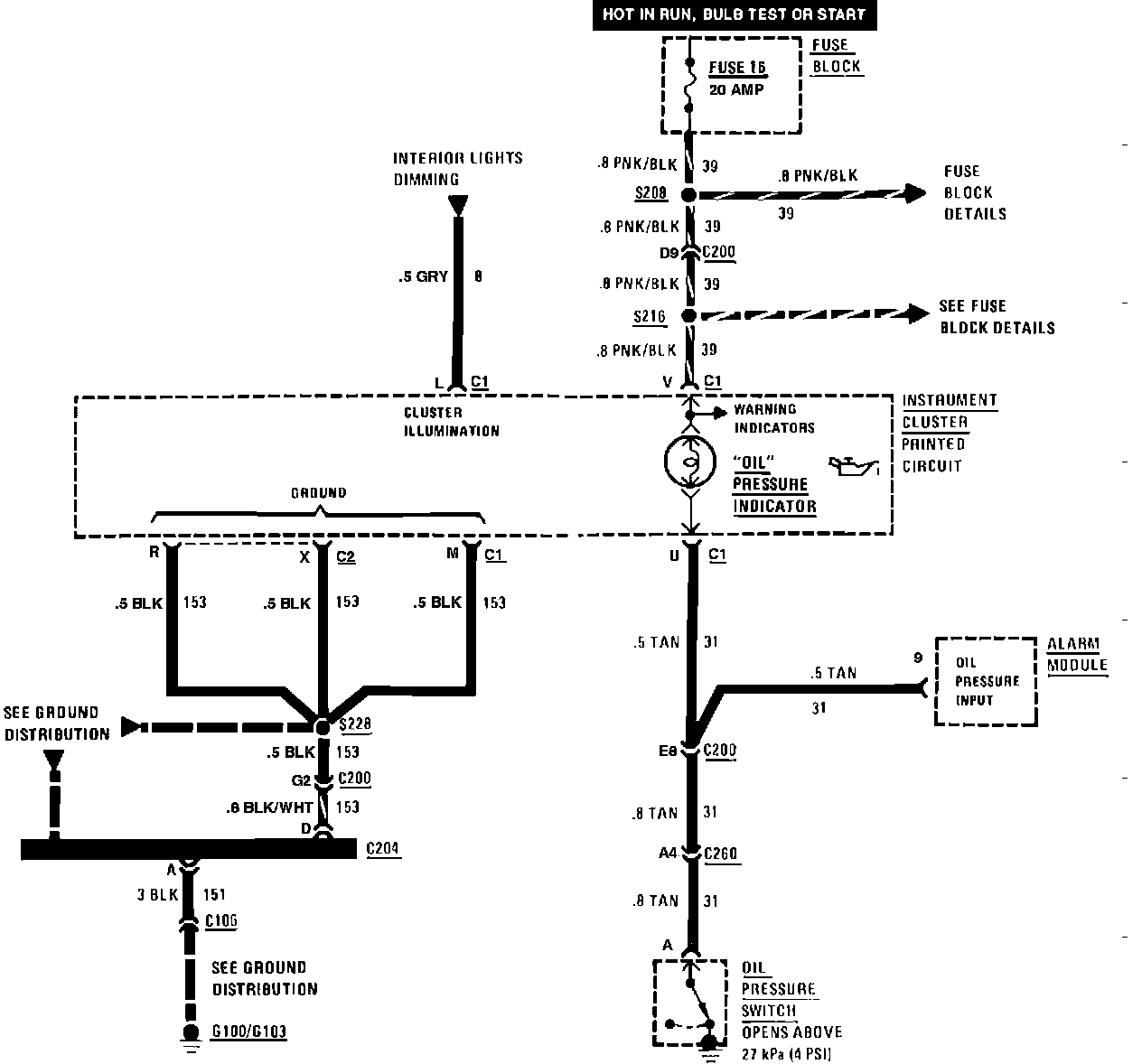

I/P Digital Cluster (Cluster Illumination & Oil Pressure Indicator):
