Instrument Panel, Gauges and Warning Indicators
>>

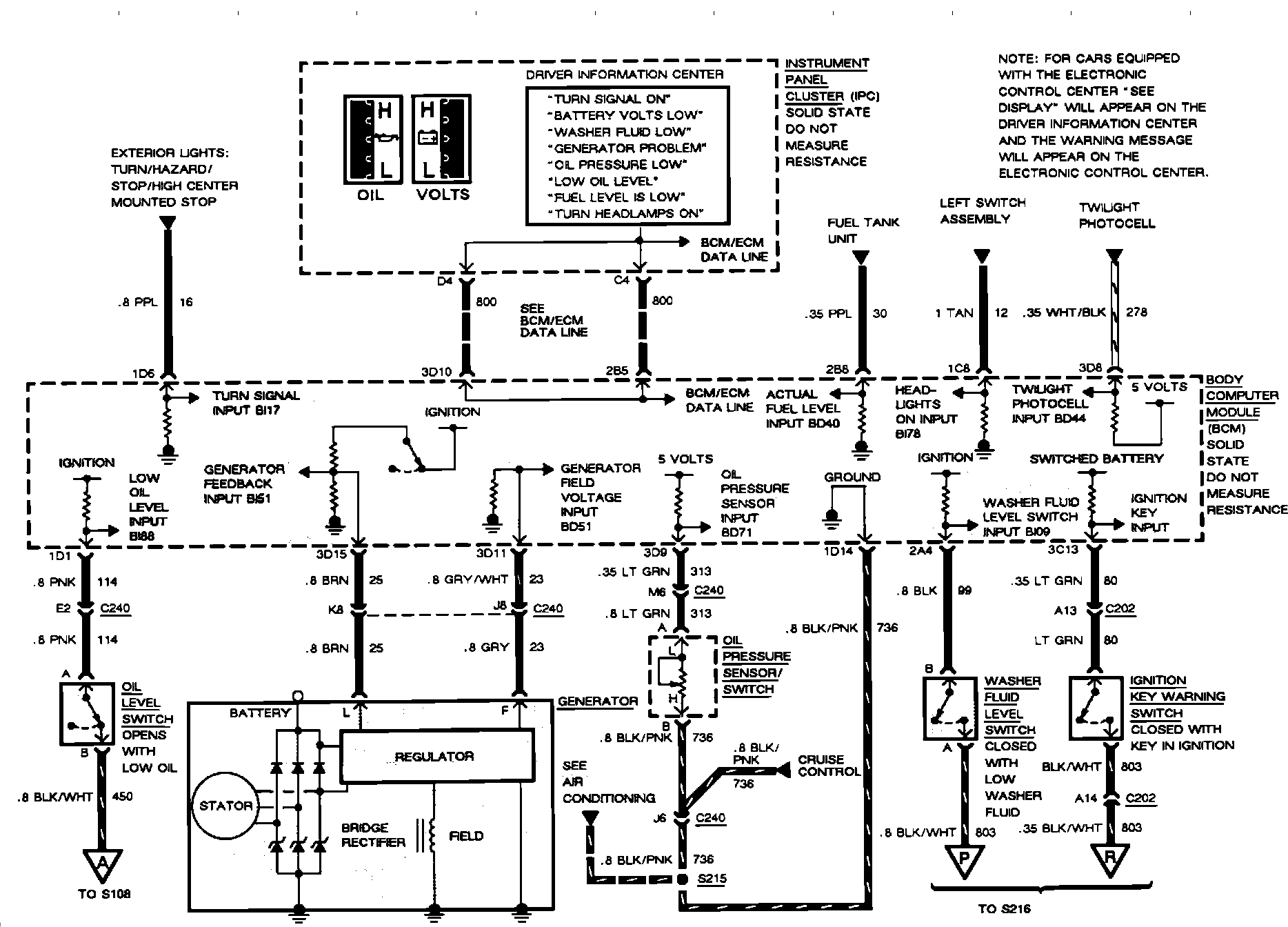

Key Reminder Switch
Key Reminder Switch
Alarms & Warnings (Ignition Key, Oil Pressure, Volts & Washer Fluid Level):
