Brake Lamp
Brake Lamp

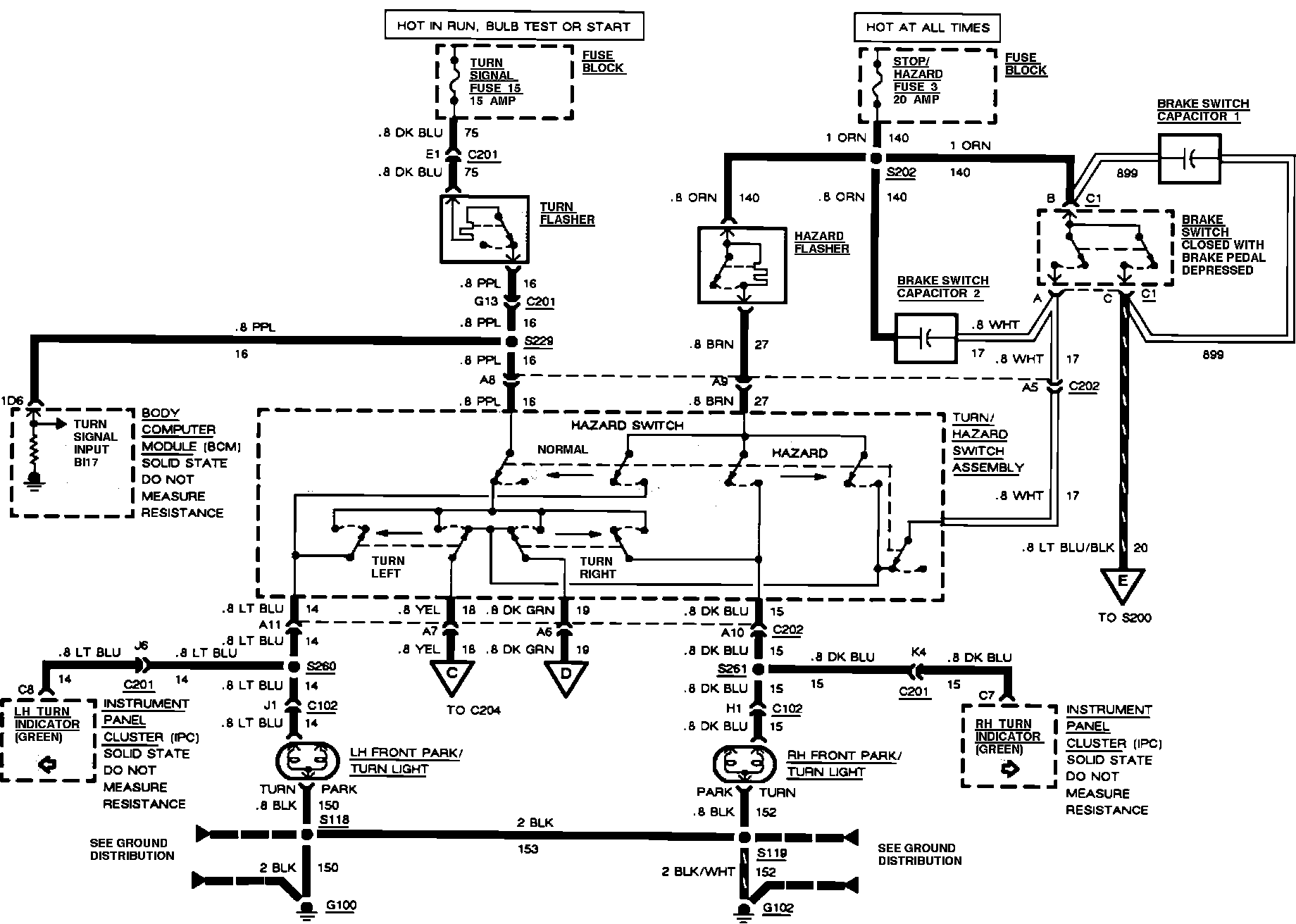

Exterior Lights (Hazard, High Mounted Stop, Stop & Turn) (Part 1 Of 2):

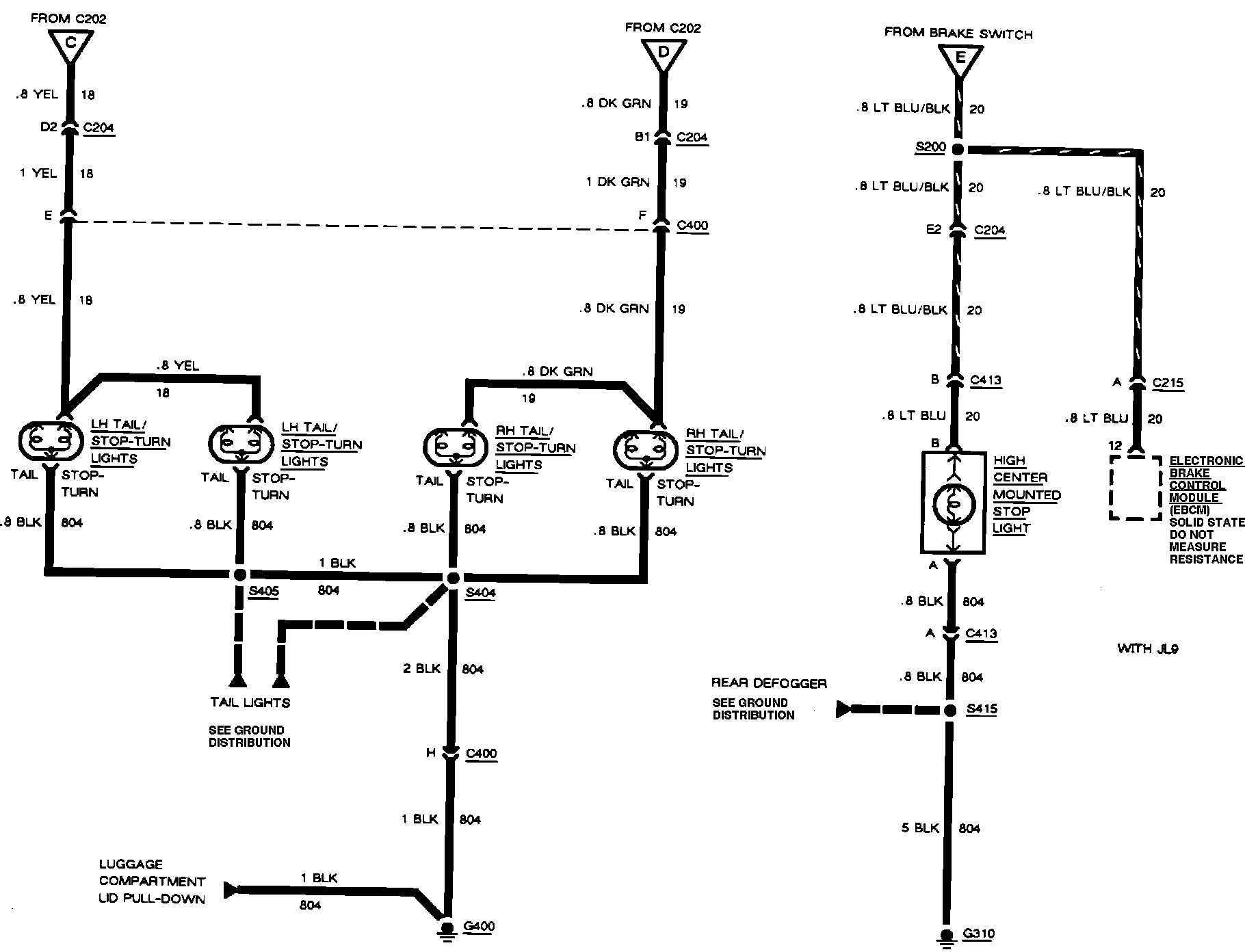

Exterior Lights (Hazard, High Mounted Stop, Stop & Turn) (Part 2 Of 2):
