Dimmer Switch

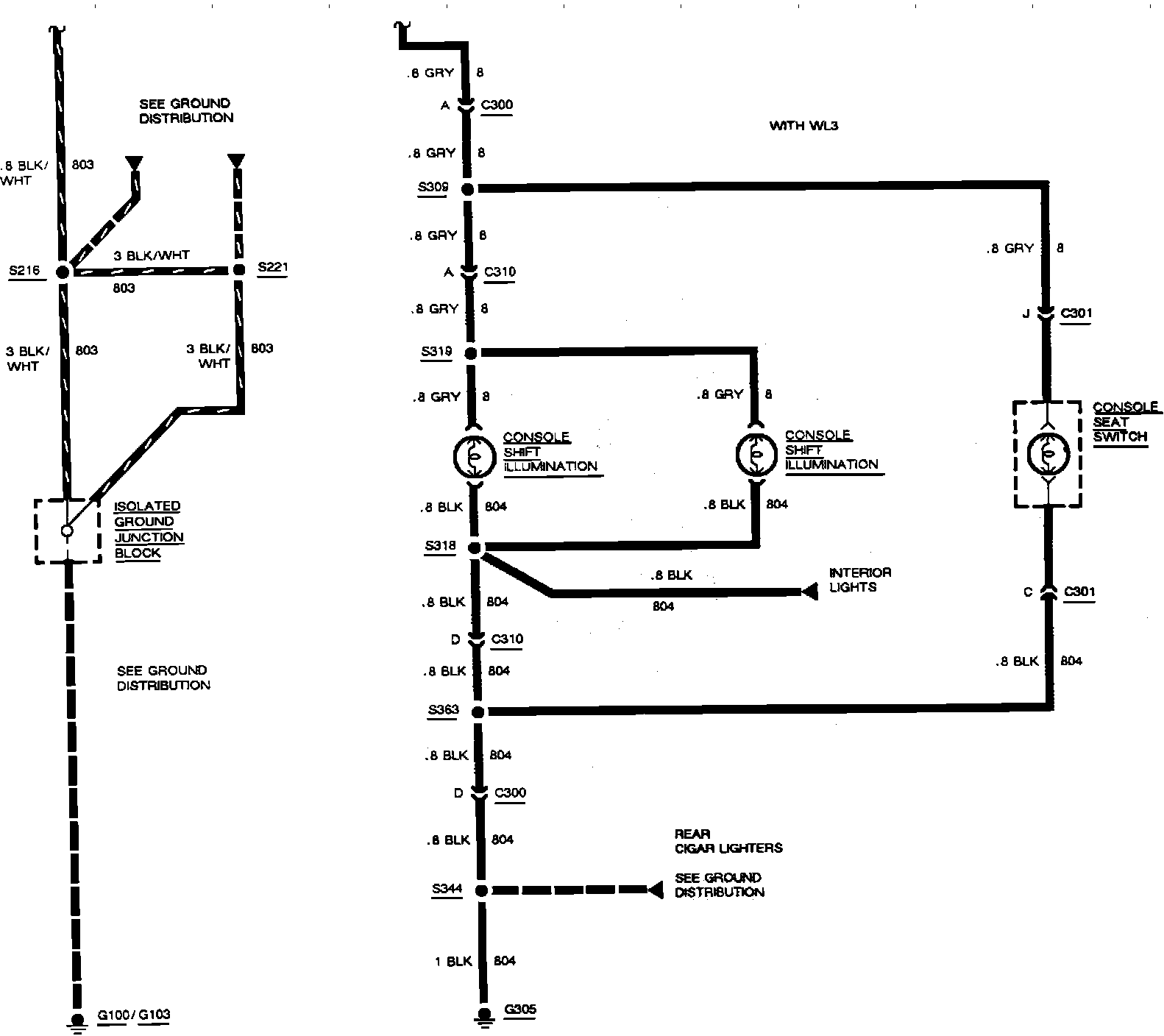

Instrument Panel Dimming Wiring Circuit (Part 1a Of 2):

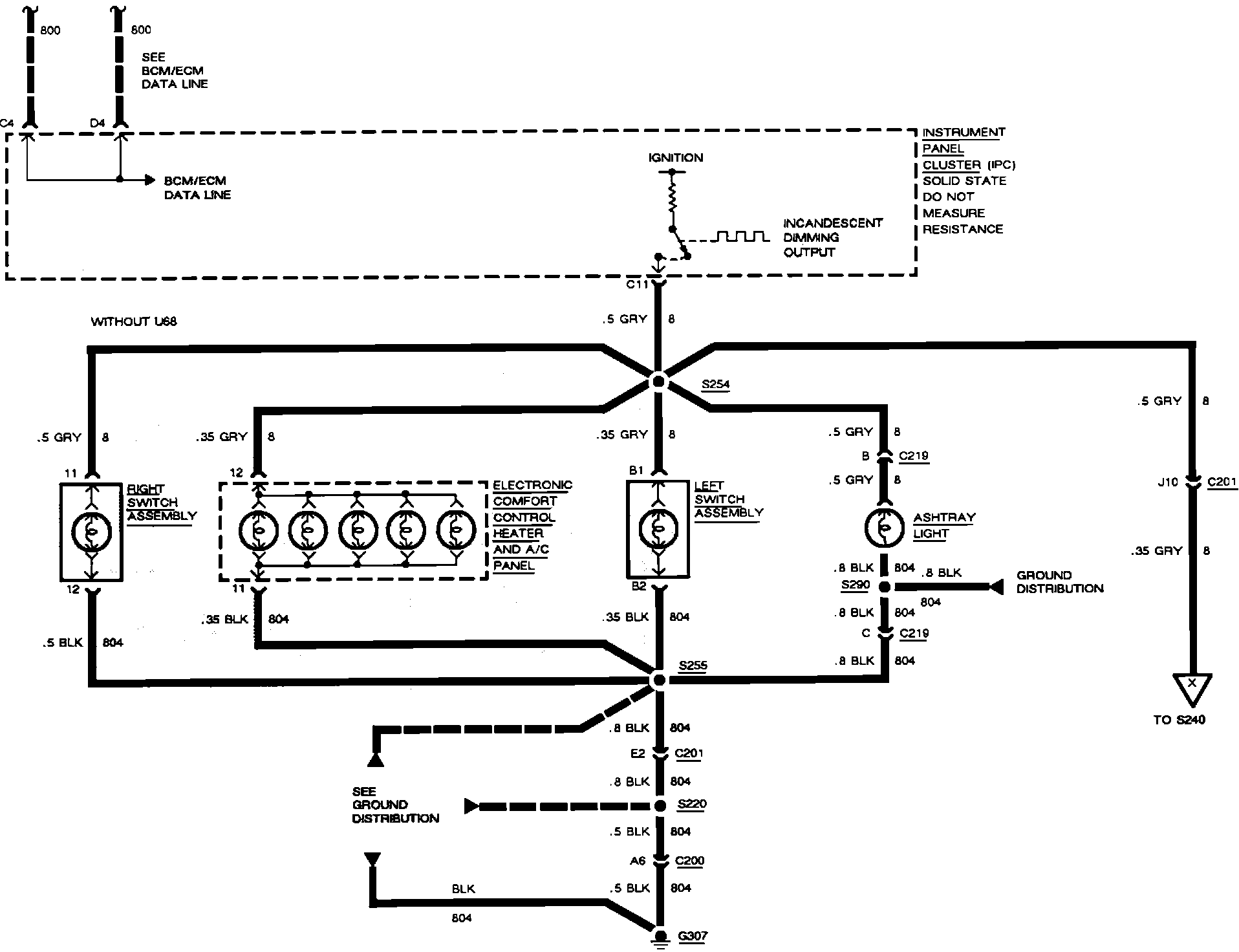

Instrument Panel Dimming:



Instrument Panel Dimming:



Instrument Panel Dimming:
