Cylinder Head Assembly: Specifications
Cylinder Head Bolts

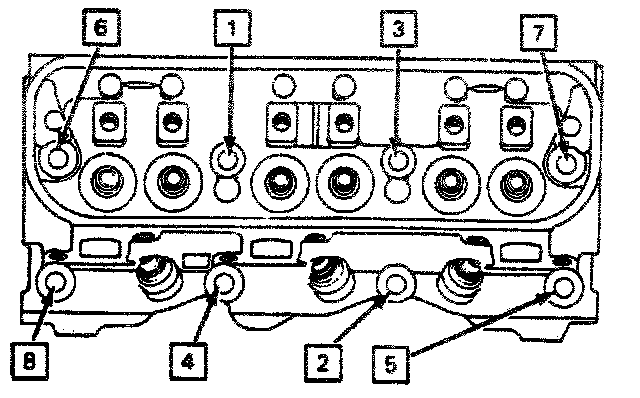

In the sequence shown (refer to image):
^ Torque bolts to 47 N.m (35 lbs. ft.)
^ Rotate bolts 130°
^ Rotate bolts an additional 30°
In the sequence shown (refer to image):
^ Torque bolts to 47 N.m (35 lbs. ft.)
^ Rotate bolts 130°
^ Rotate bolts an additional 30°
