Home
>>
Oldsmobile
>>
1989
>>
Toronado V6-3800 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery
Air Delivery

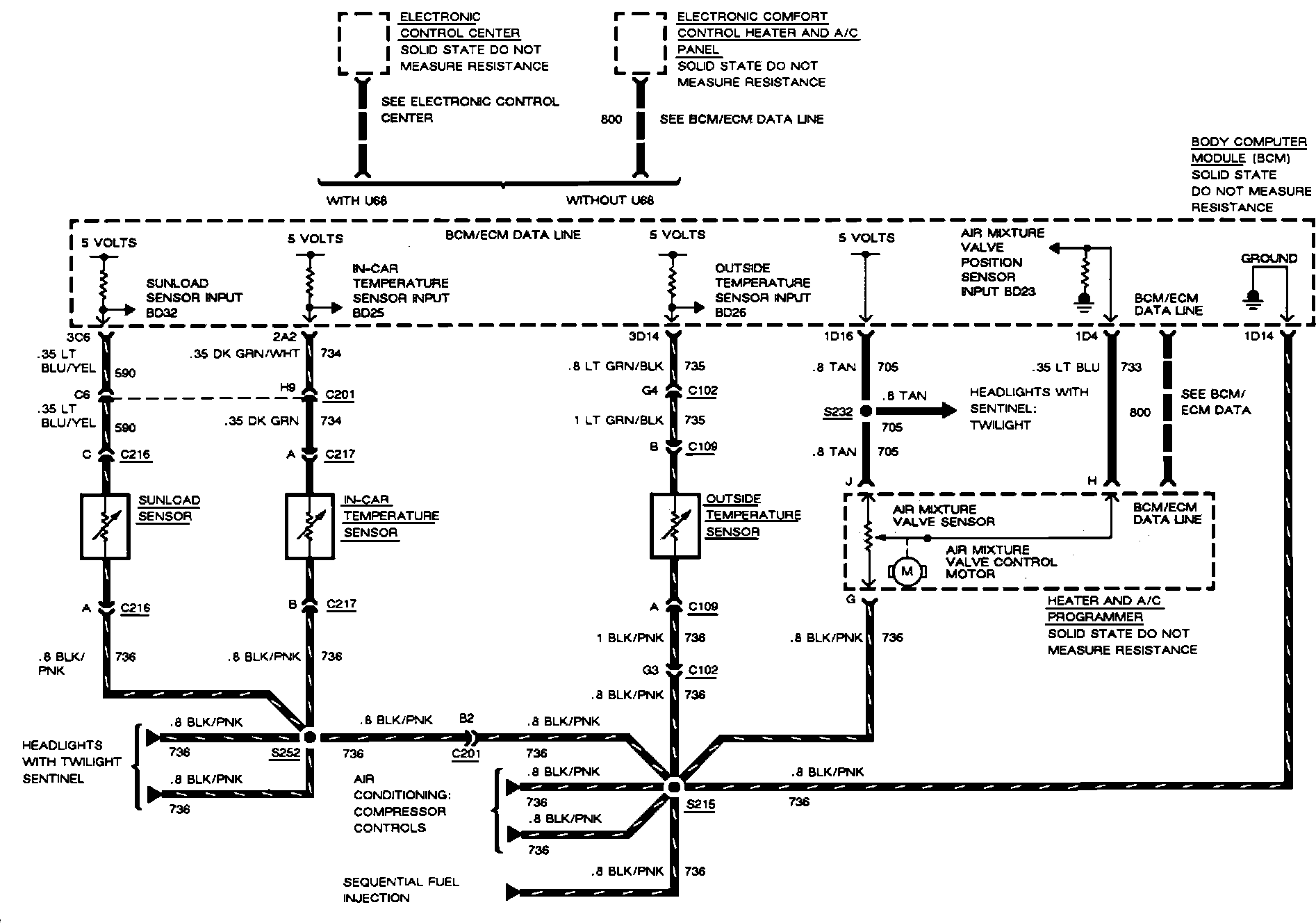

Air Conditioning Air Delivery & temperature Control:
