Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Motor

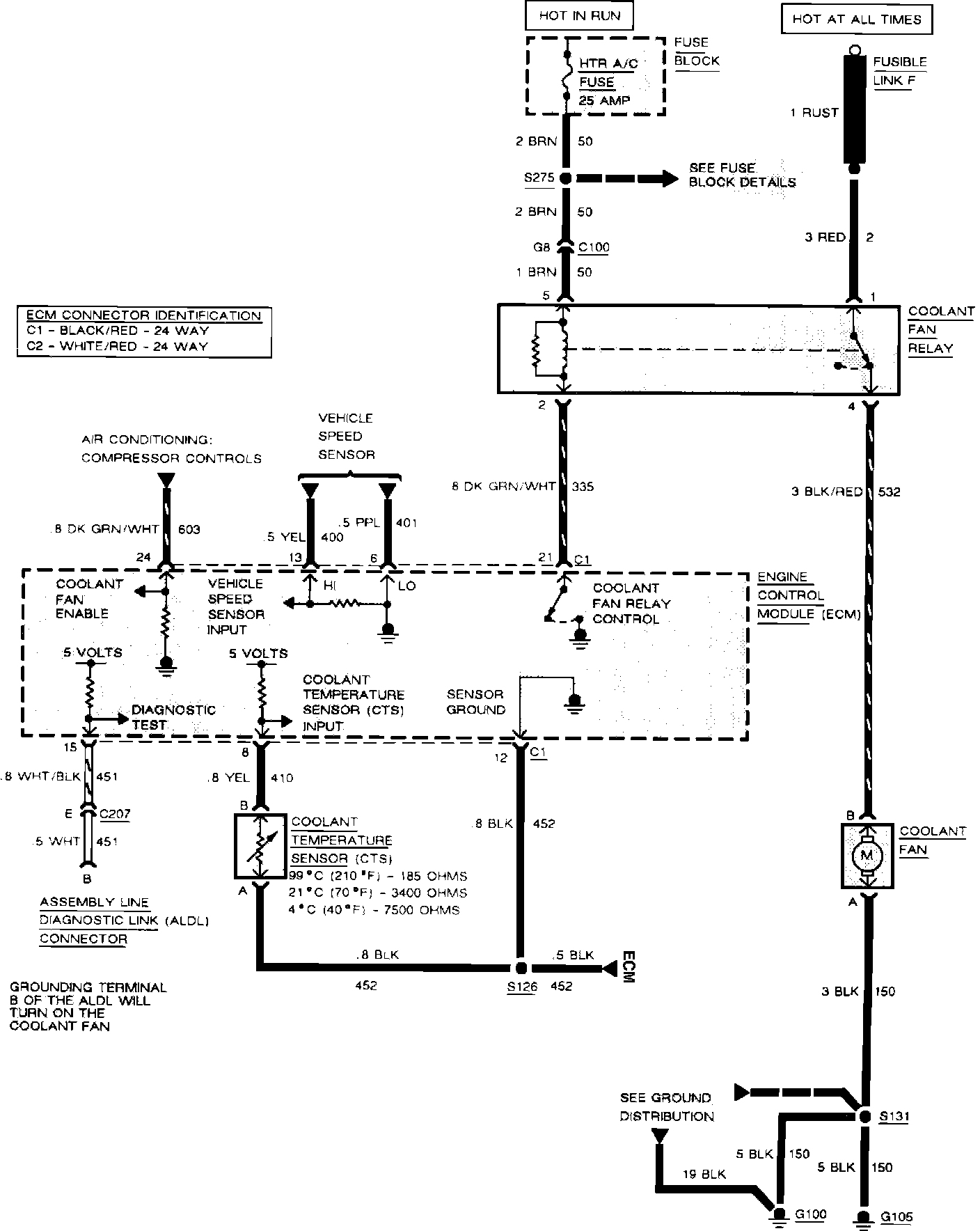

Radiator Cooling Fan Motor
Cooling Fan. Engine:
Cooling Fan. Engine:
