Home >> Oldsmobile >> 1990 >> Calais L4-151 2.5L VIN U TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display

Driver/Vehicle Information Display

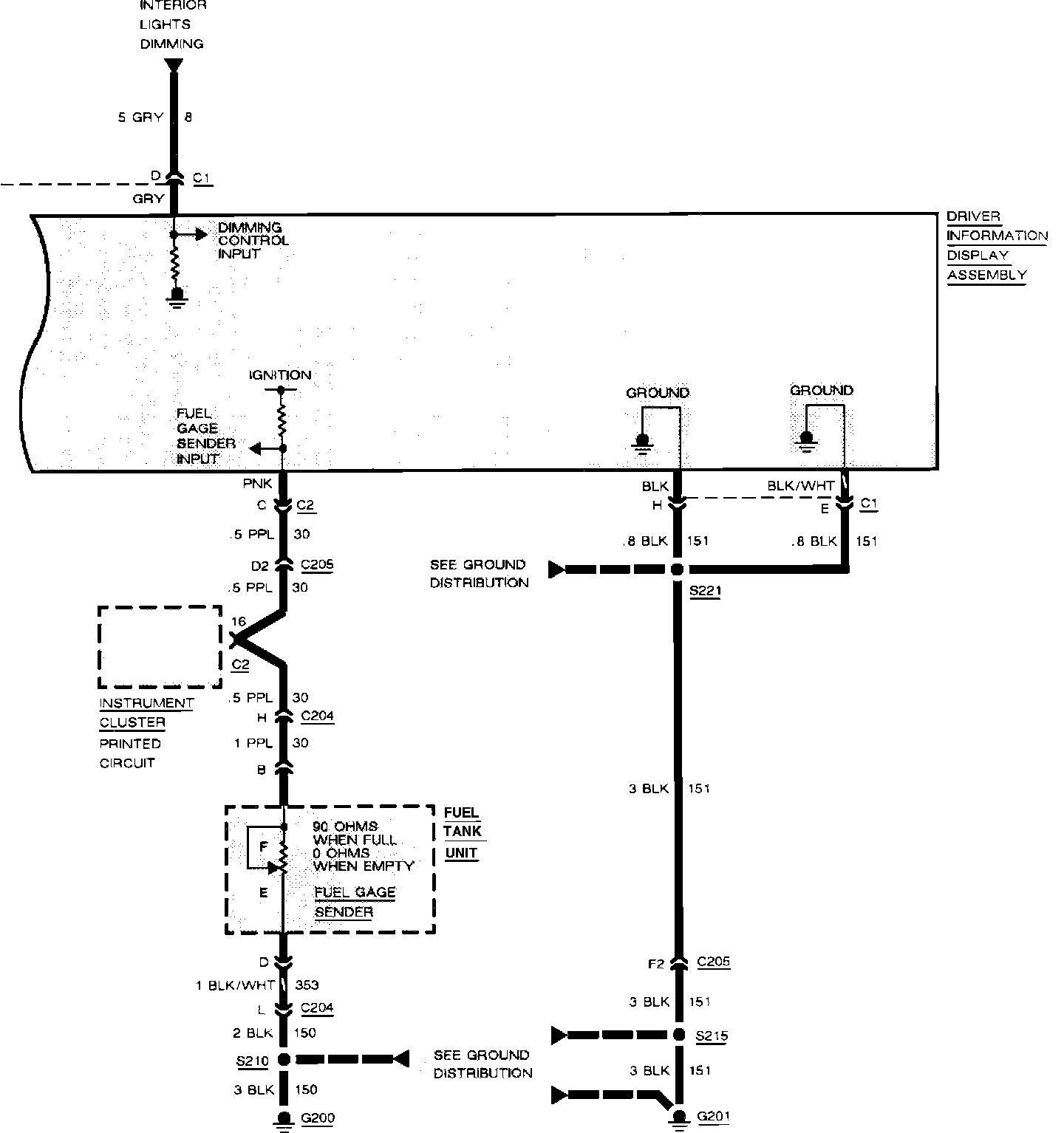

Driver Information Center:



Driver Information Center:
