Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

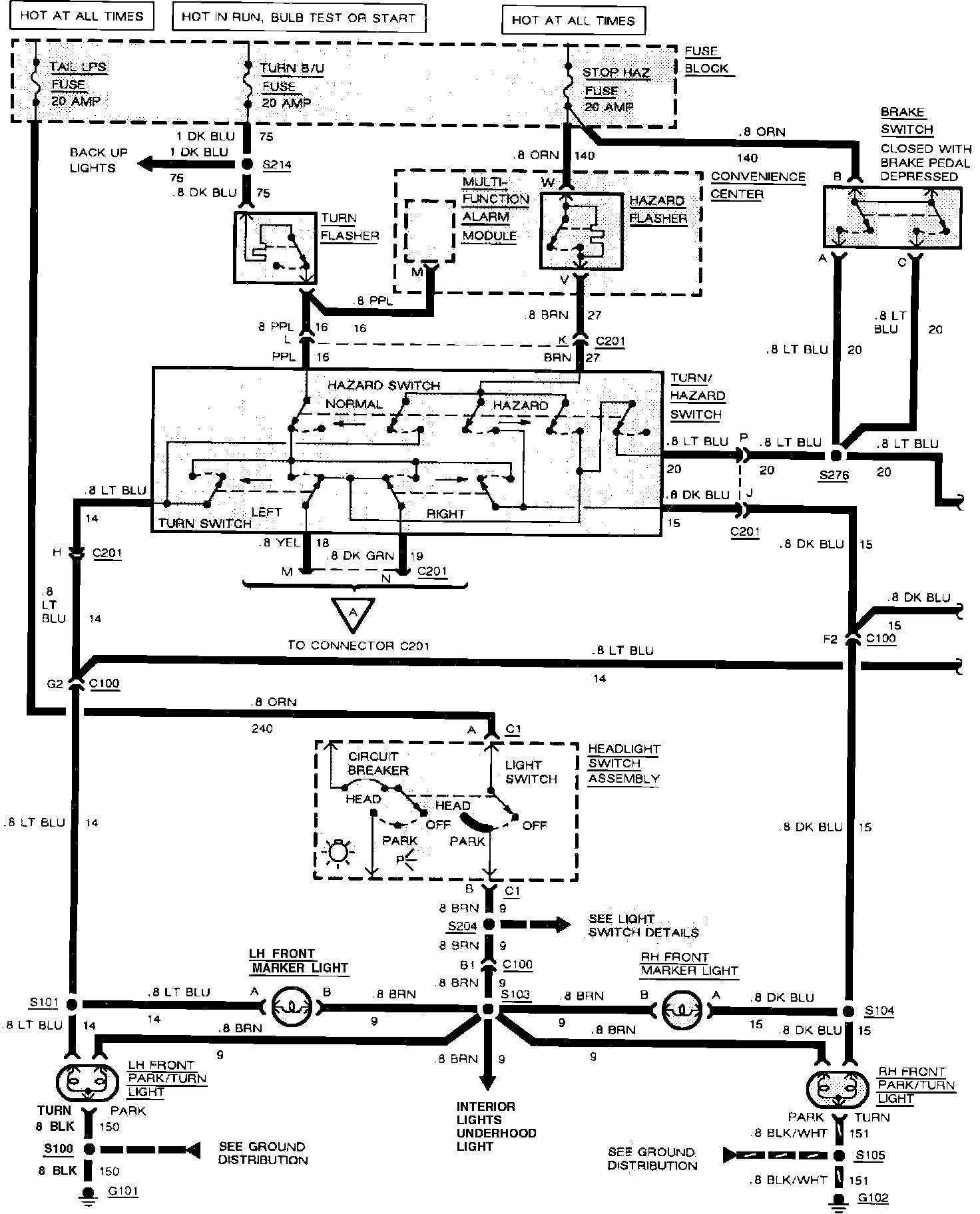

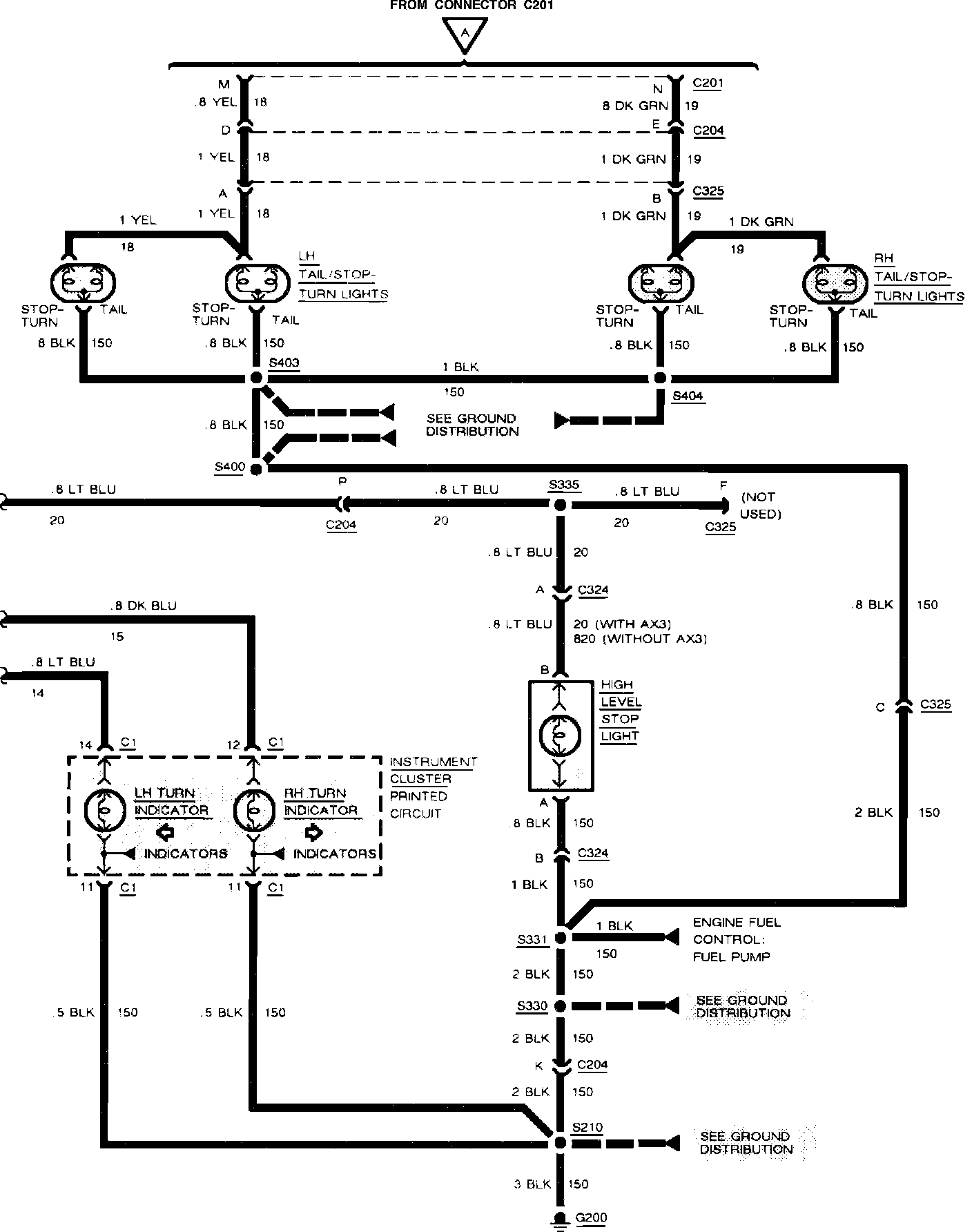

Exterior Lamps (Front Marker, Hazard, Park & Turn):
Exterior Lamps (Front Marker, Hazard, Park & Turn):
