Marker Lamp

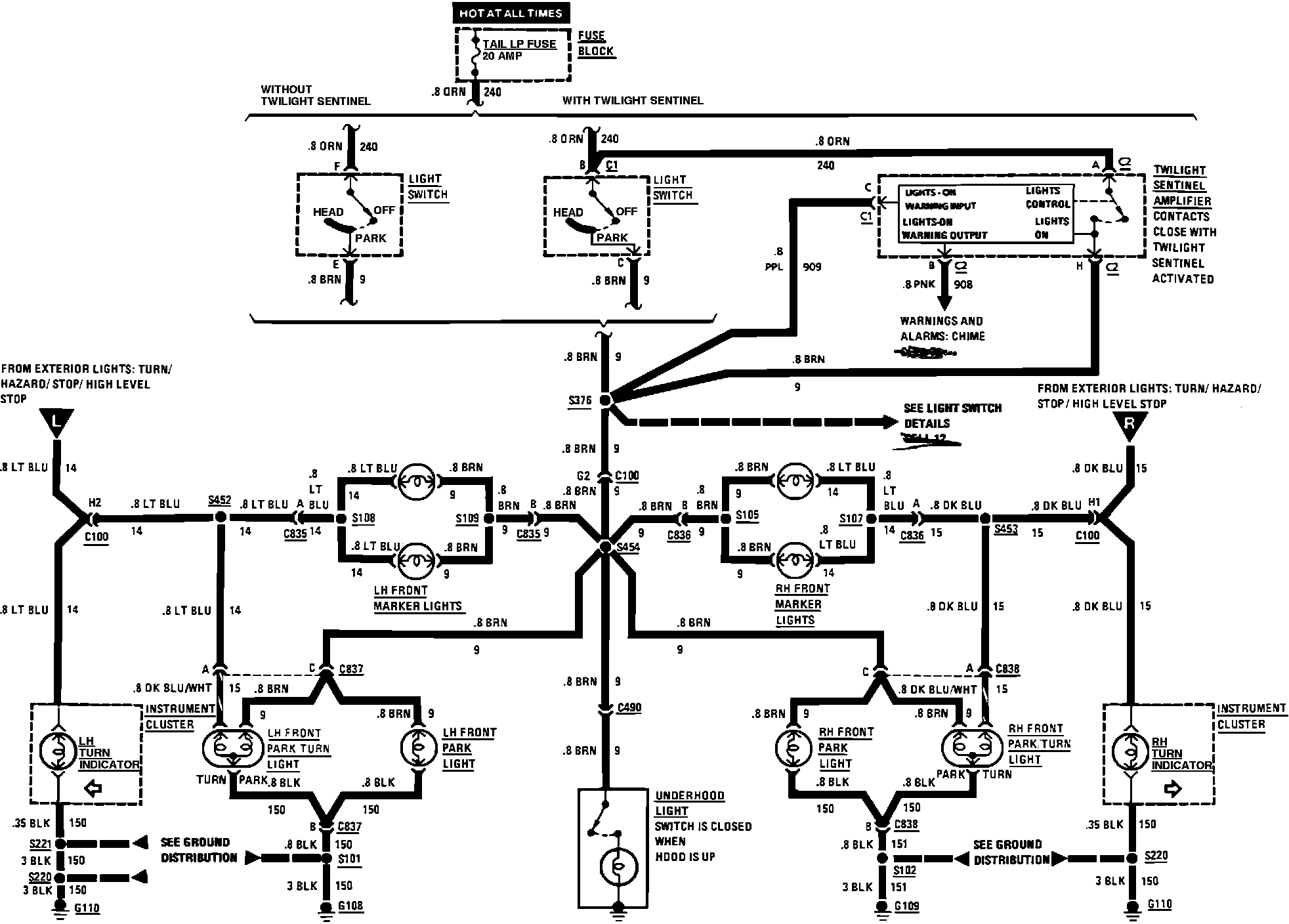

Exterior Lamps. Front Turn, Marker, Park & Underhood:

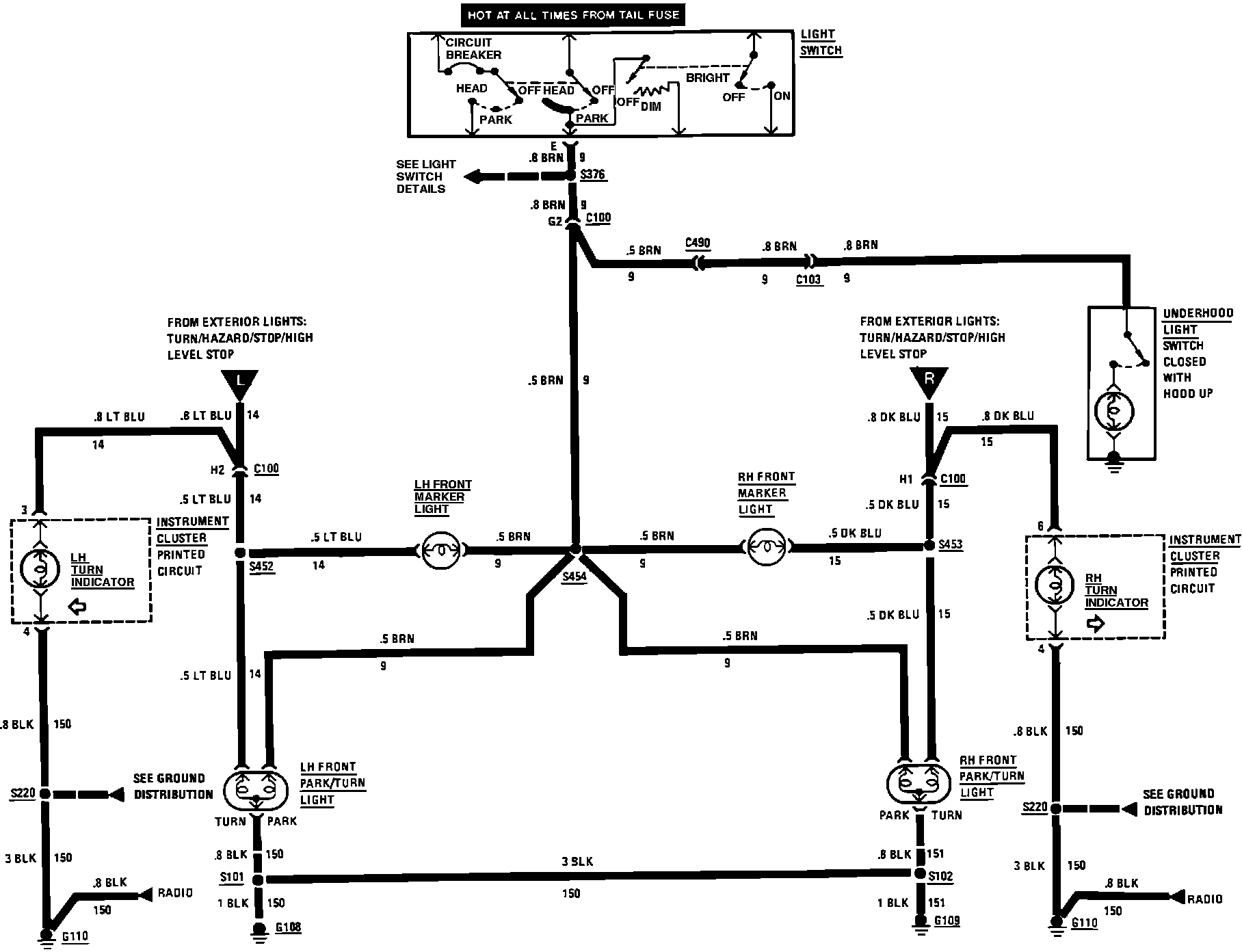

Exterior Lamps. Front Turn, Marker, Park & Underhood:
