Home >> Oldsmobile >> 1990 >> Cutlass Ciera V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fuel Pump Inline Fuse

Fuel Pump Inline Fuse

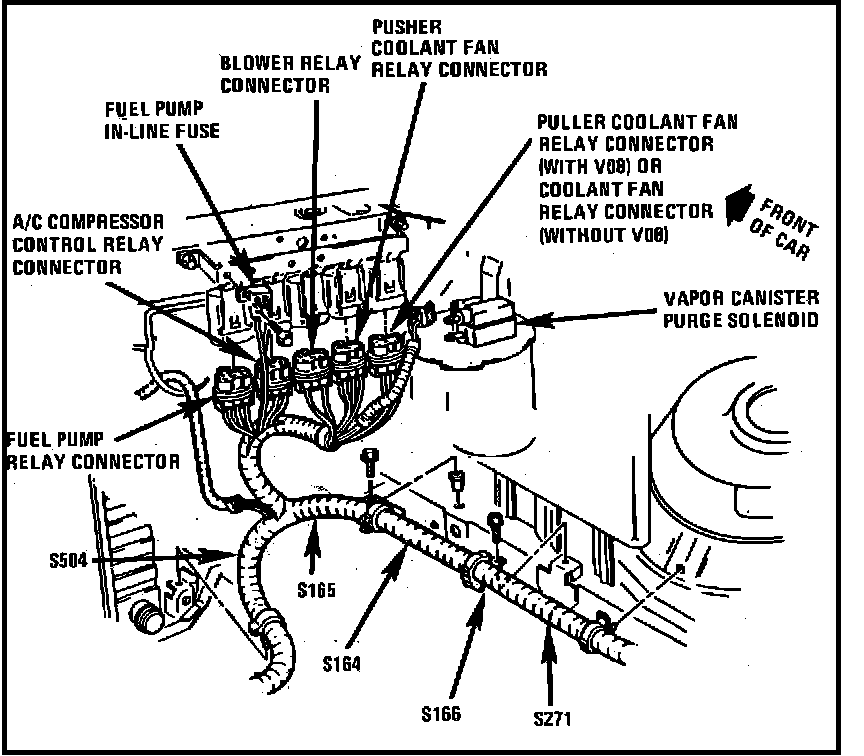

RH Front Engine Compartment.:




RH Front Of Engine Compartment

Applicable to: 1990 Cutlass Ciera & Cutlass Cruiser w/V6-231/3.3L
