Oldsmobile
>>
1990
>>
Cutlass L4-138 2.3L VIN A FI HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

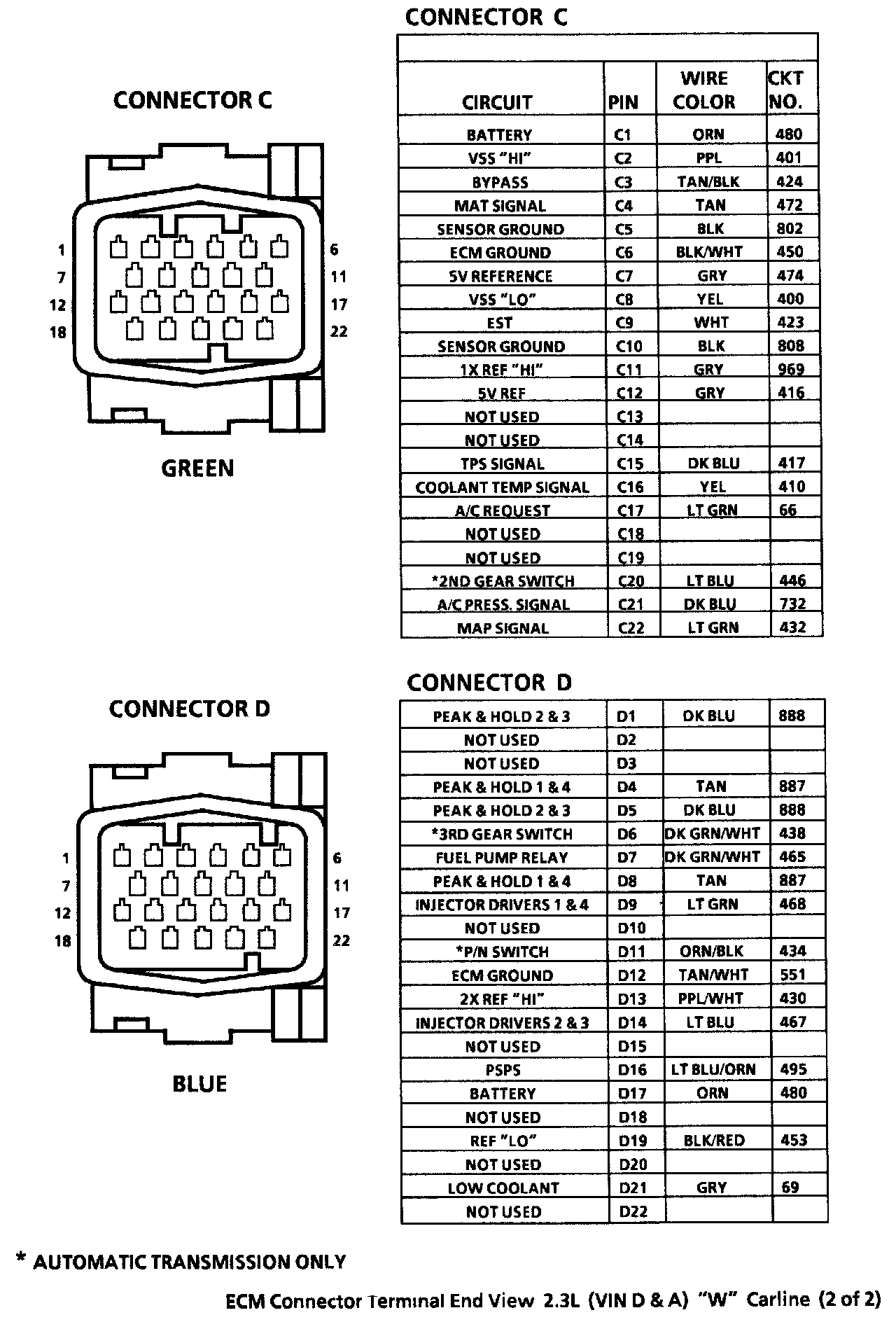

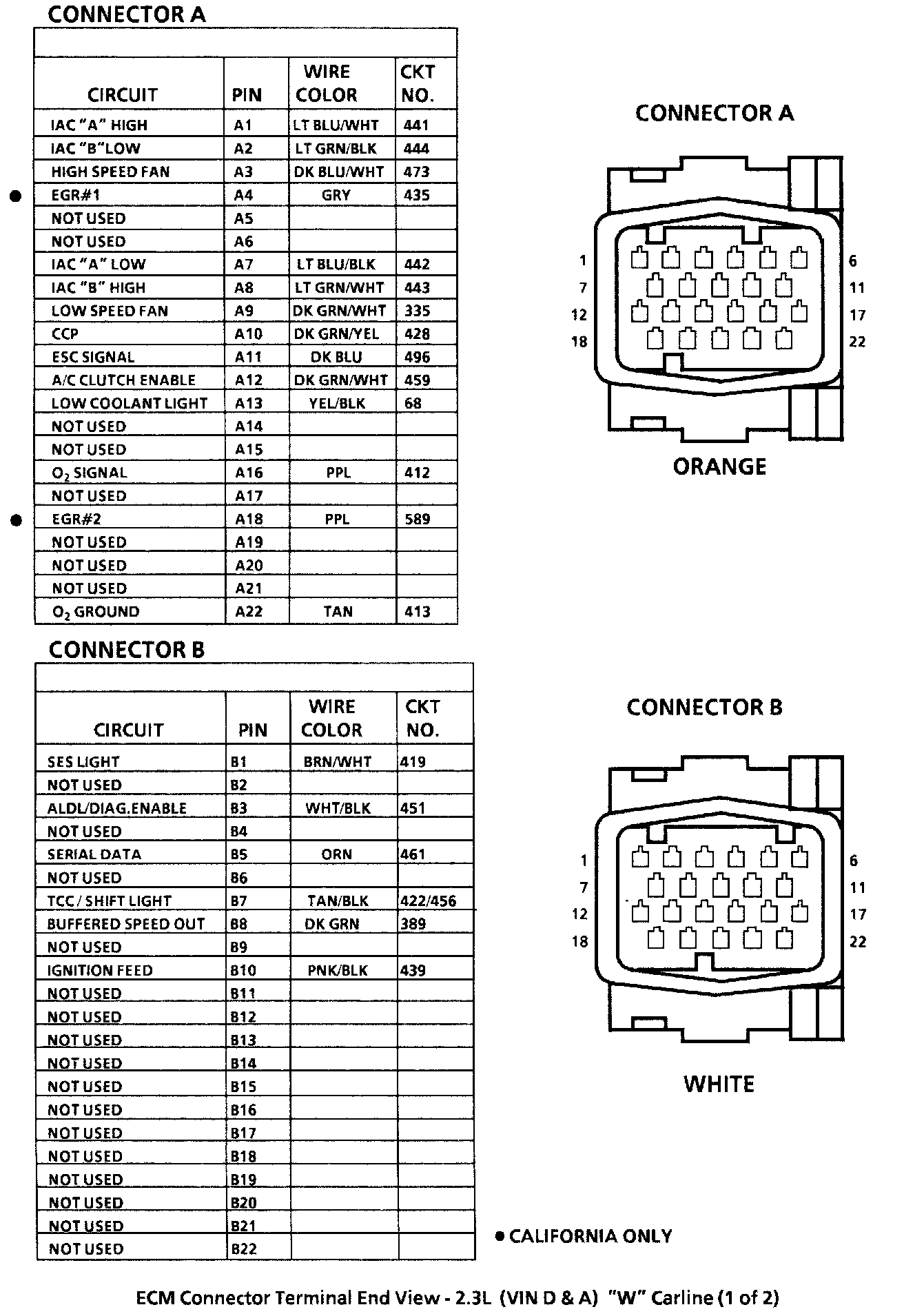

Harness Connector
Harness Connector
