Home >> Oldsmobile >> 1990 >> Cutlass L4-138 2.3L VIN A FI HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> HVAC, Radio & Redundant Steering Controls Data Line

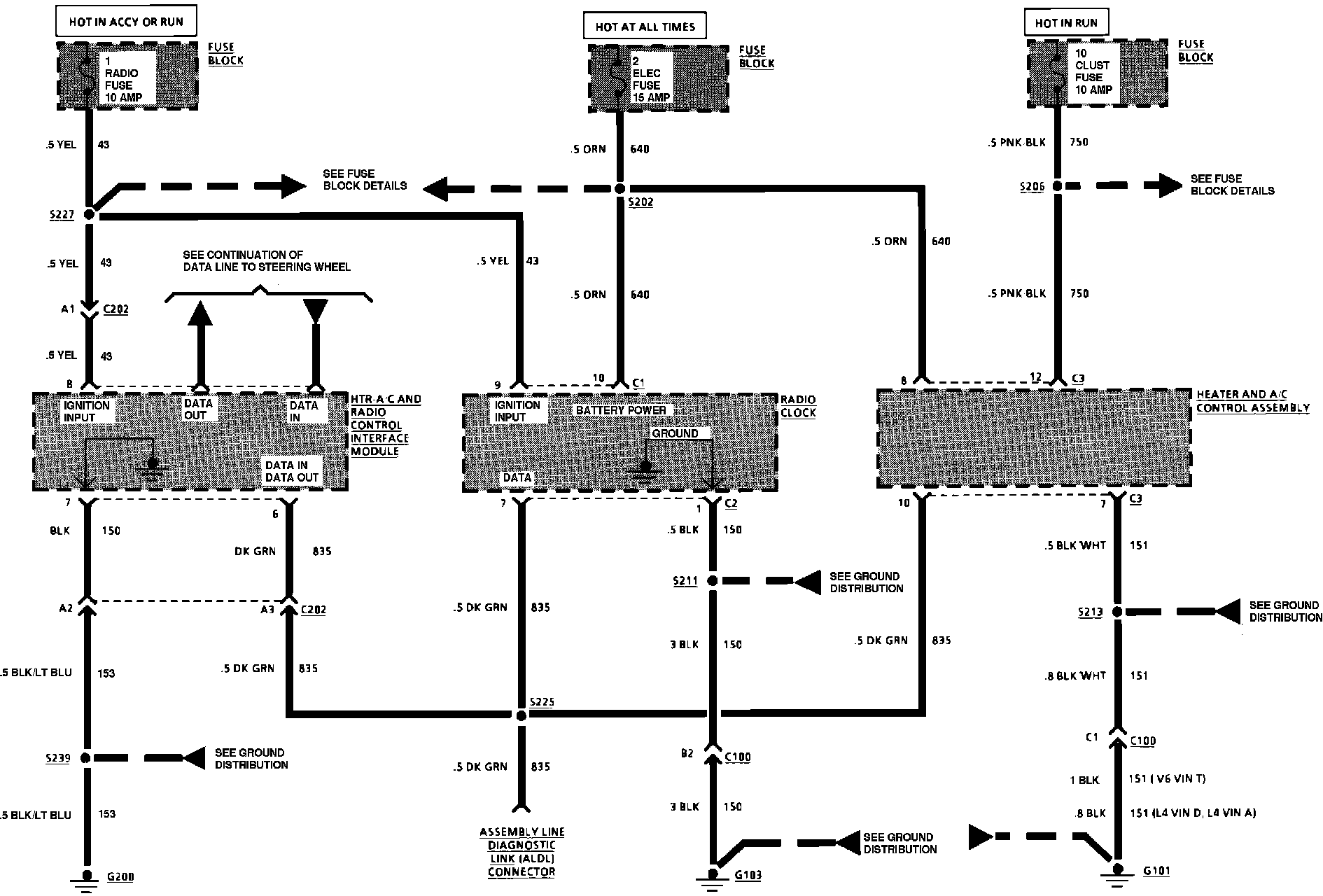

HVAC, Radio & Redundant Steering Controls Data Line

Data Line. HVAC, Radio & Redundant Steering Controls:
