Oldsmobile
>>
1990
>>
Cutlass V6-189 3.1L VIN T FI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
System Diagnosis
System Diagnosis

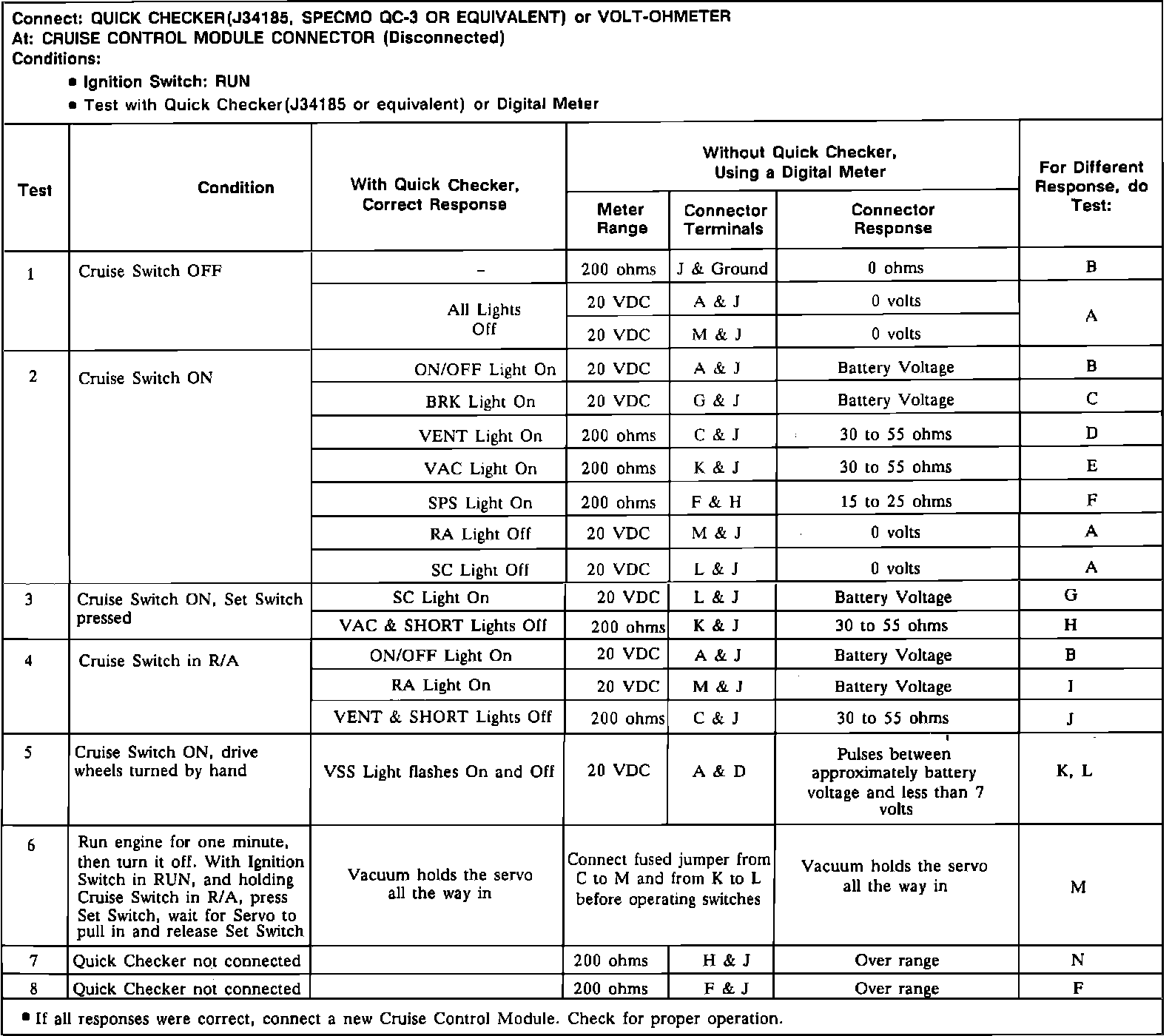

Fig. 43 Cruise Control System Diagnostic Chart:
