Power Door Lock Relay

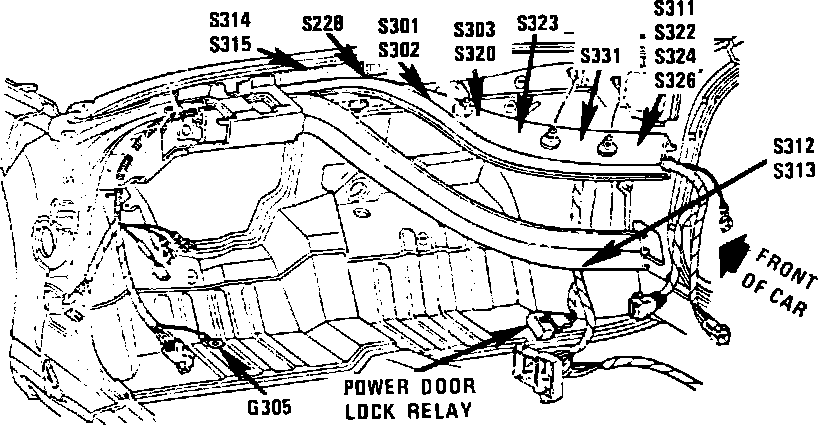

Power Door Lock Relay.:




Behind I/P, Near RH Shroud

Applicable to: 1990 Cutlass Supreme
