Headlamp Switch

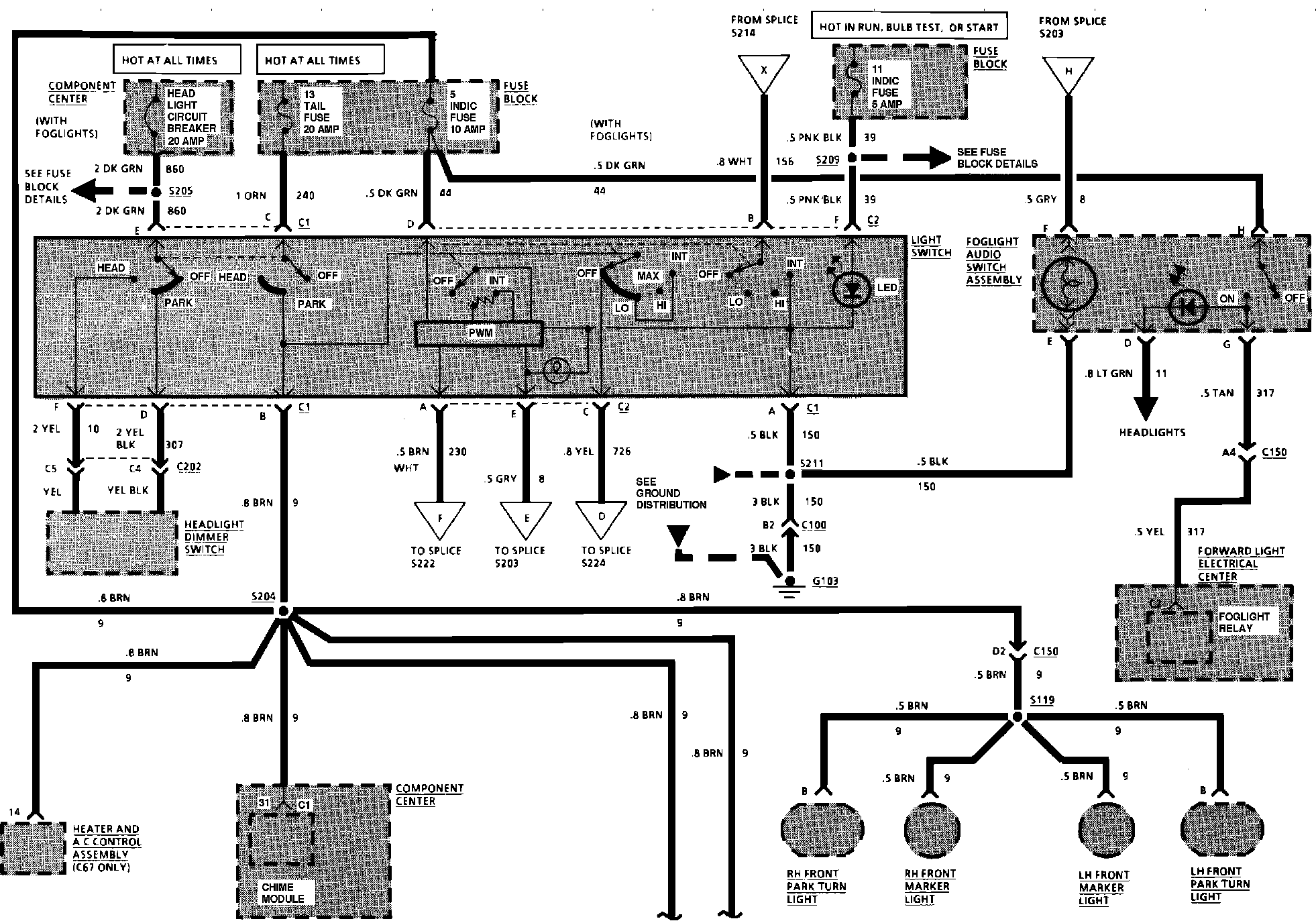

Light Switch Details:

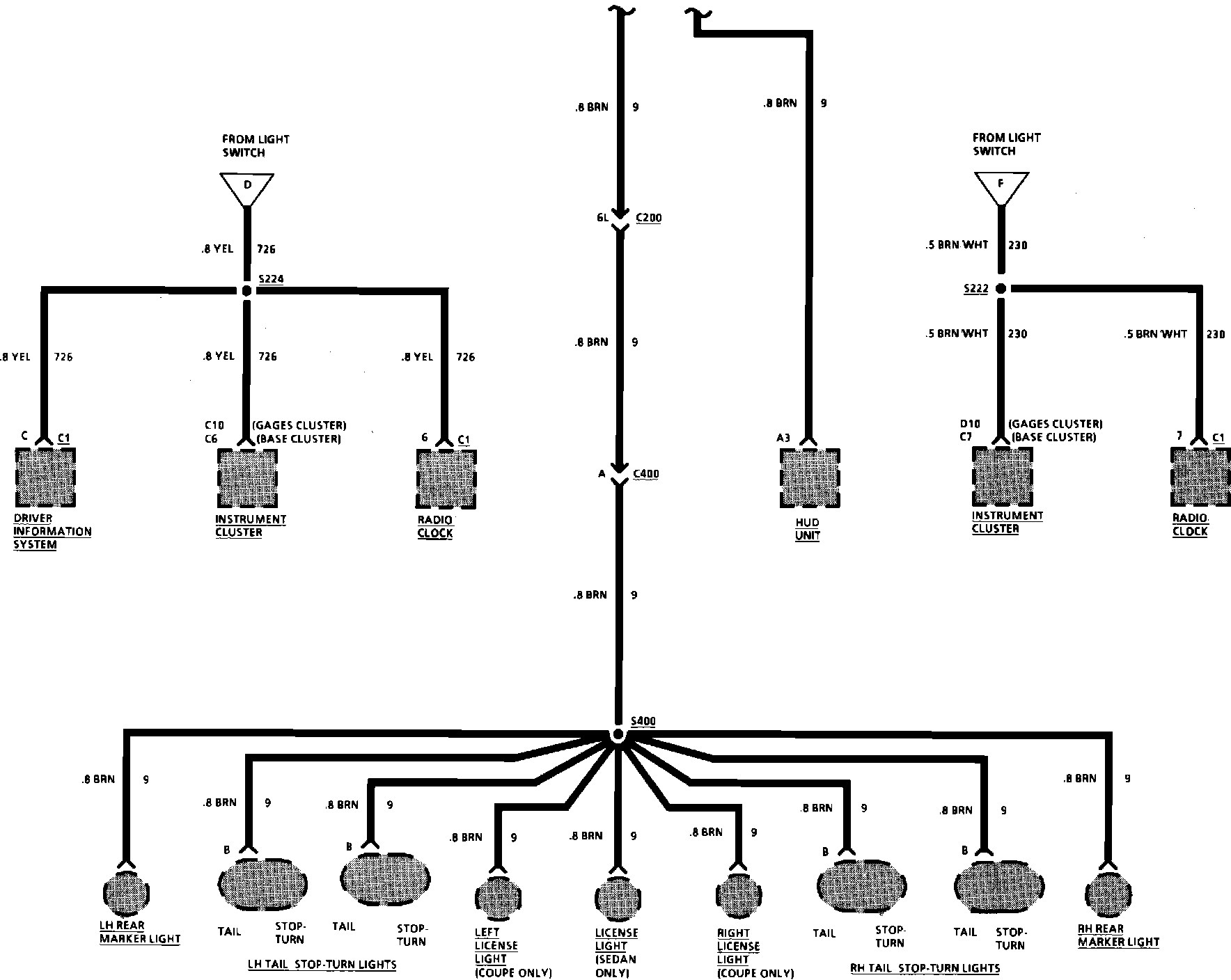

Light Switch Details:

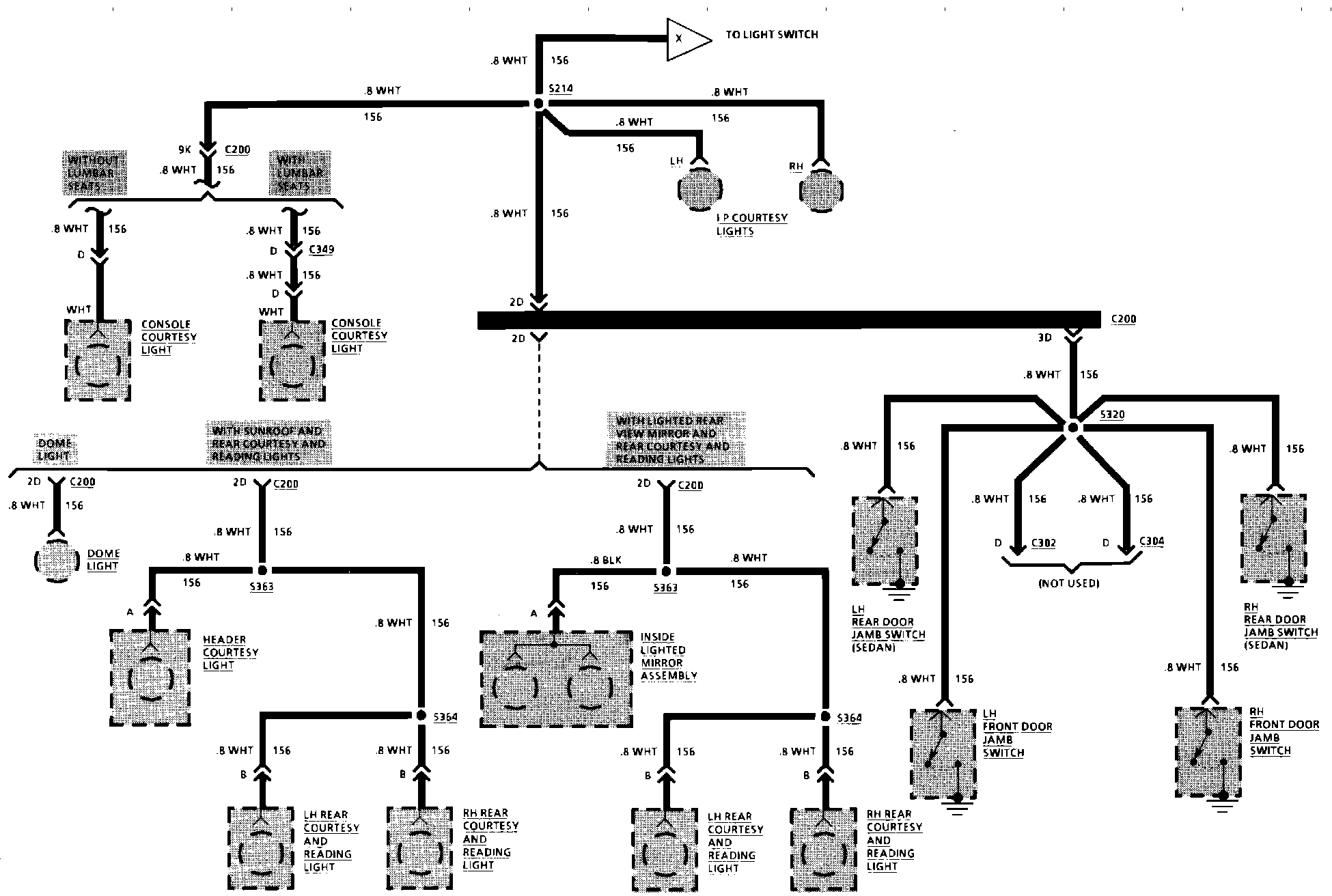

Light Switch Details:



Light Switch Details:
