Home >> Oldsmobile >> 1990 >> Cutlass V6-189 3.1L VIN T FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Horn >> Less Foglight & Four Door

Less Foglight & Four Door

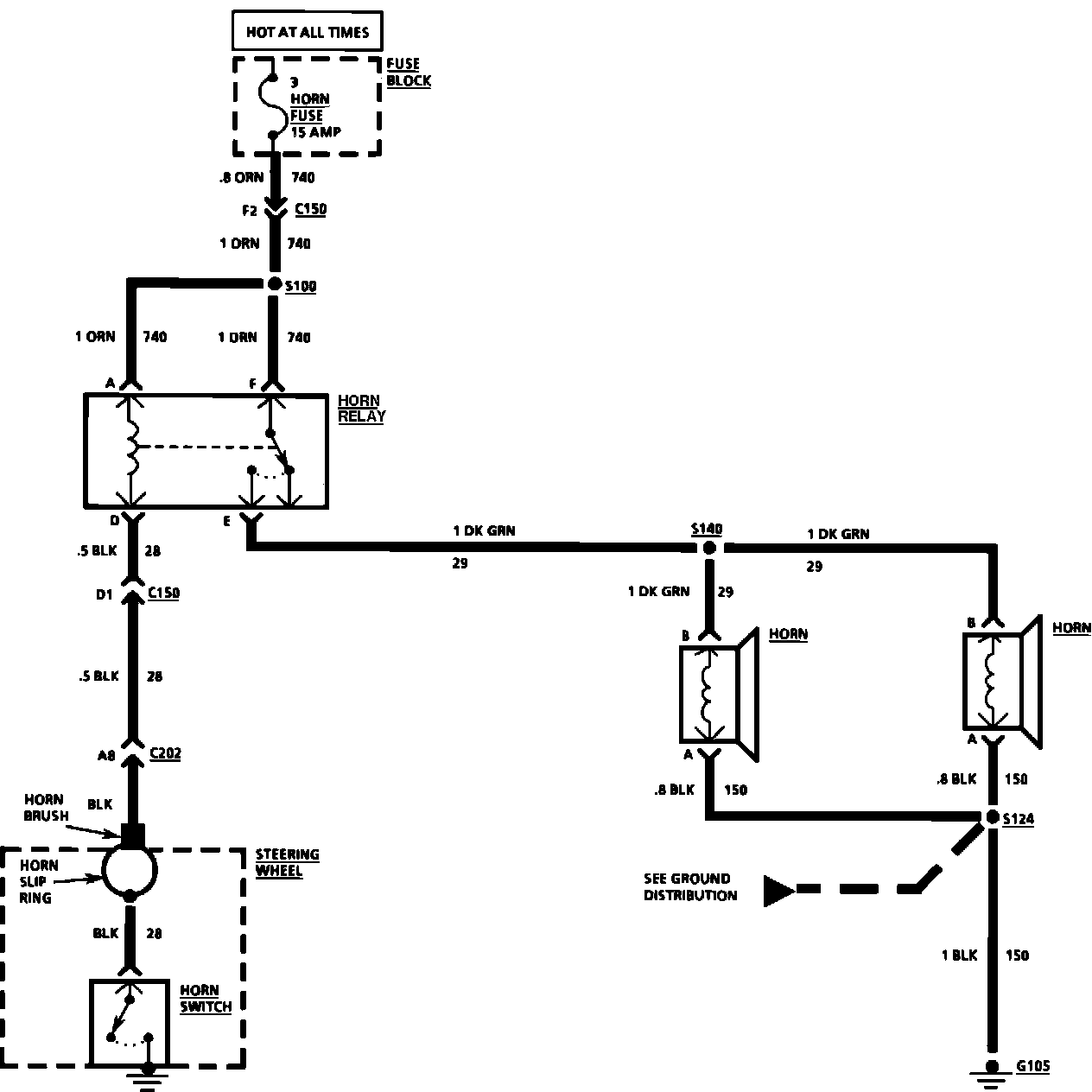

Horn, Less Fog Lights & Four Door:
