Home
>>
Oldsmobile
>>
1990
>>
Cutlass V6-189 3.1L VIN T FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>

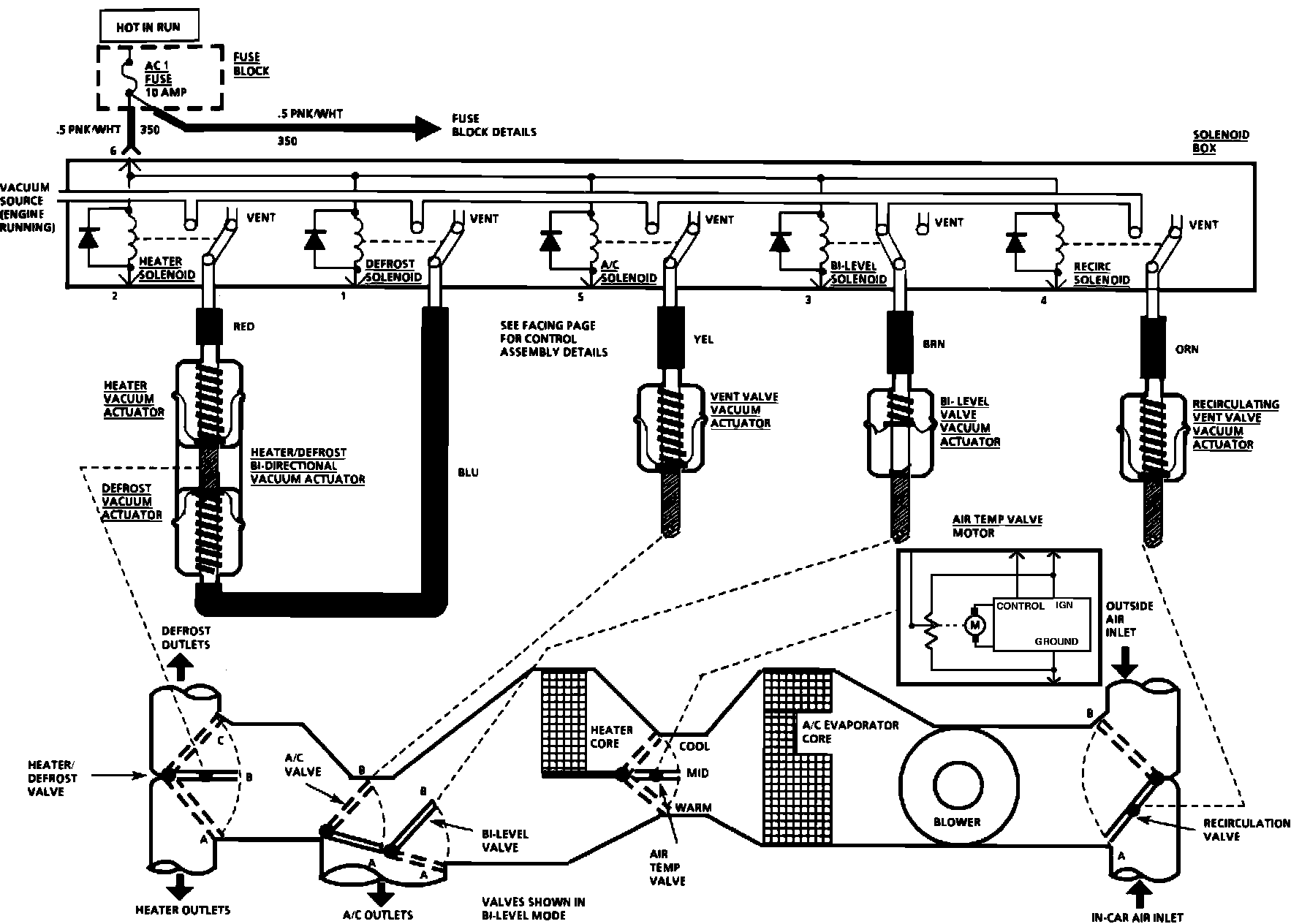

Vacuum and Vapor Hose Diagrams
>>
With C68 (Air Conditioner, Front Electronic Controls)
With C68 (Air Conditioner, Front Electronic Controls)
