Information Bus (Data Line)

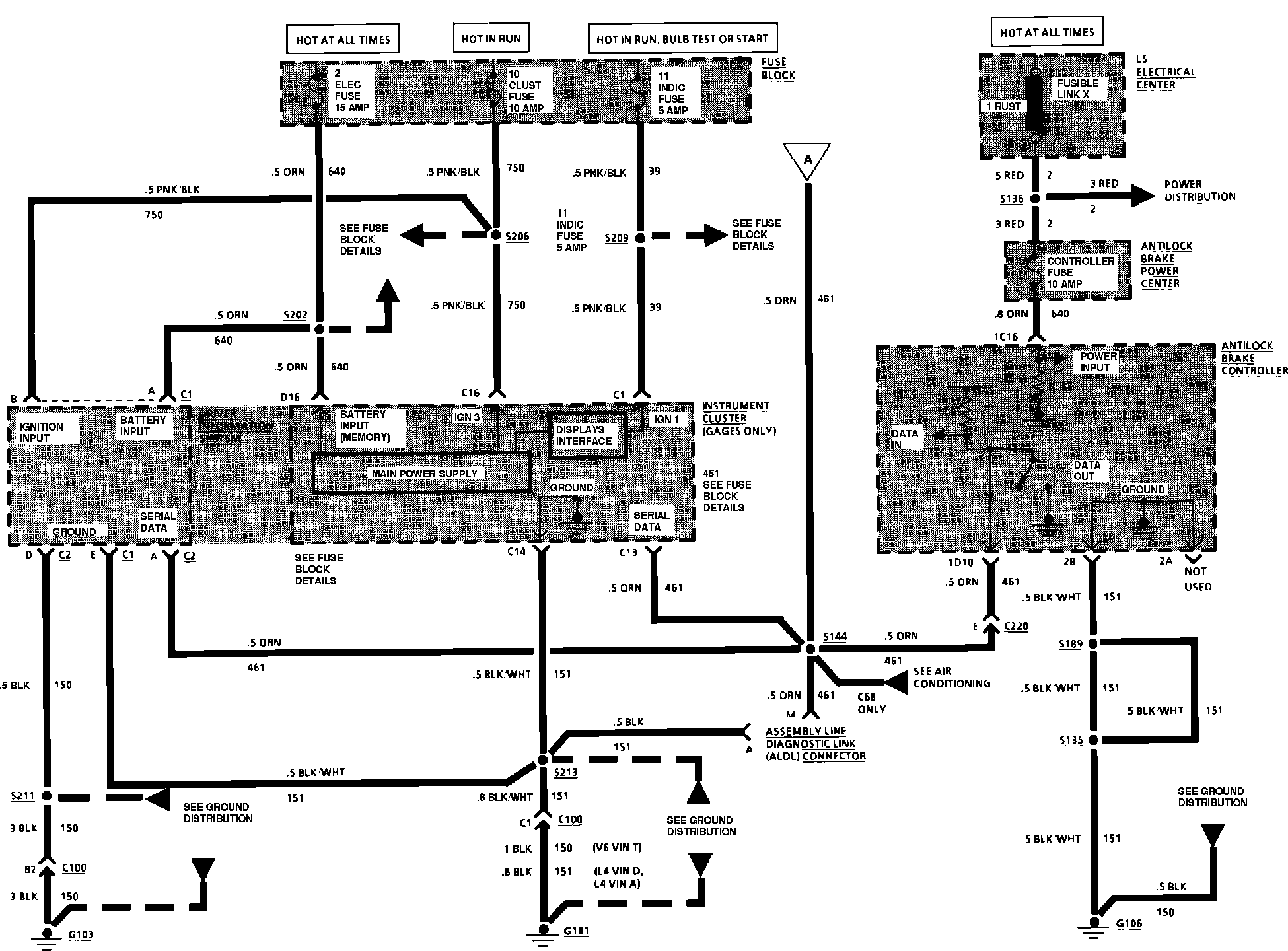

Data Line. Electronic Control Module:



Data Line. Electronic Control Module:
