Home >> Oldsmobile >> 1990 >> Cutlass V6-189 3.1L VIN T FI >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

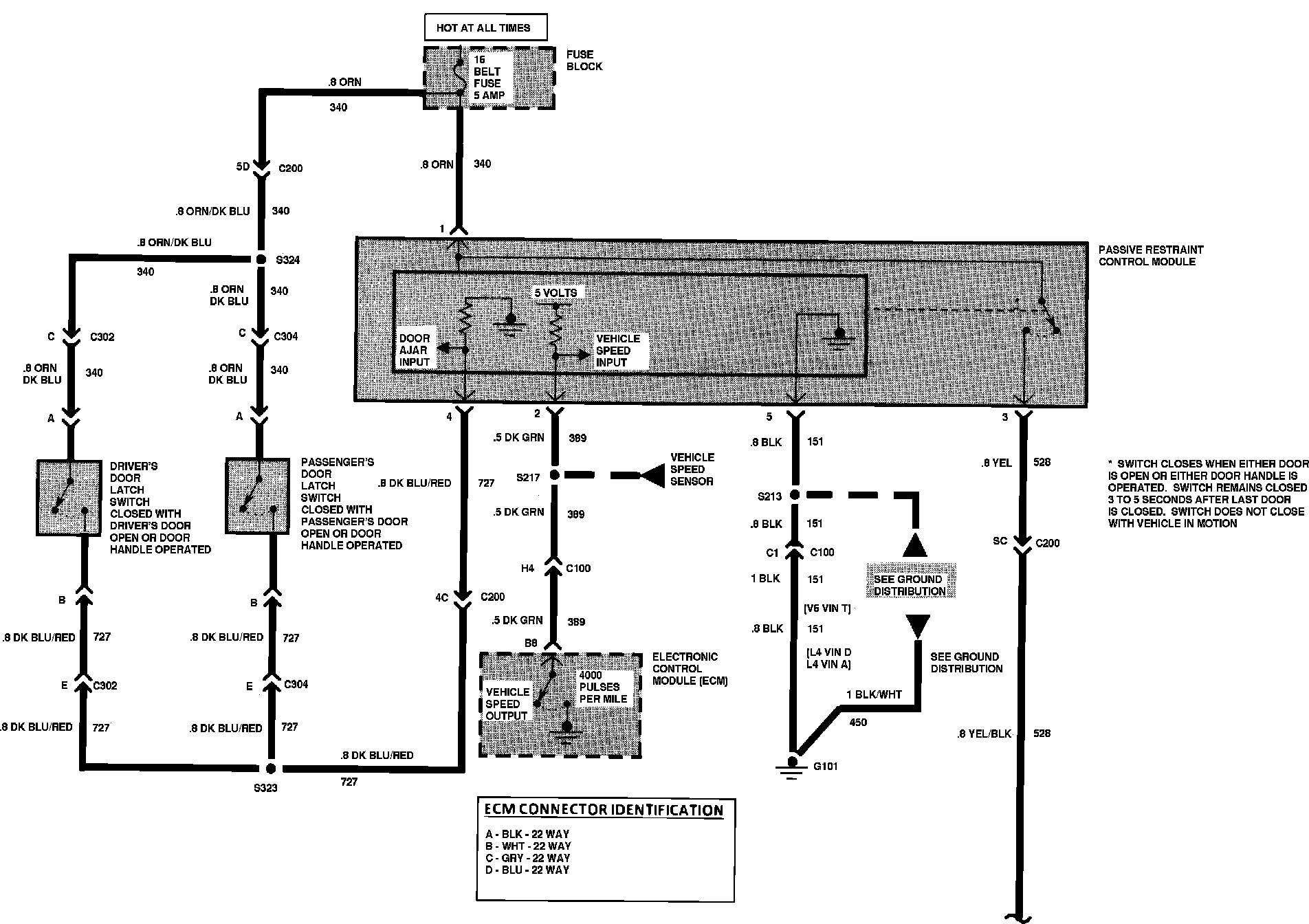

Fig. 13 Automatic Safety Belt Schematic (Part 1 Of 2):

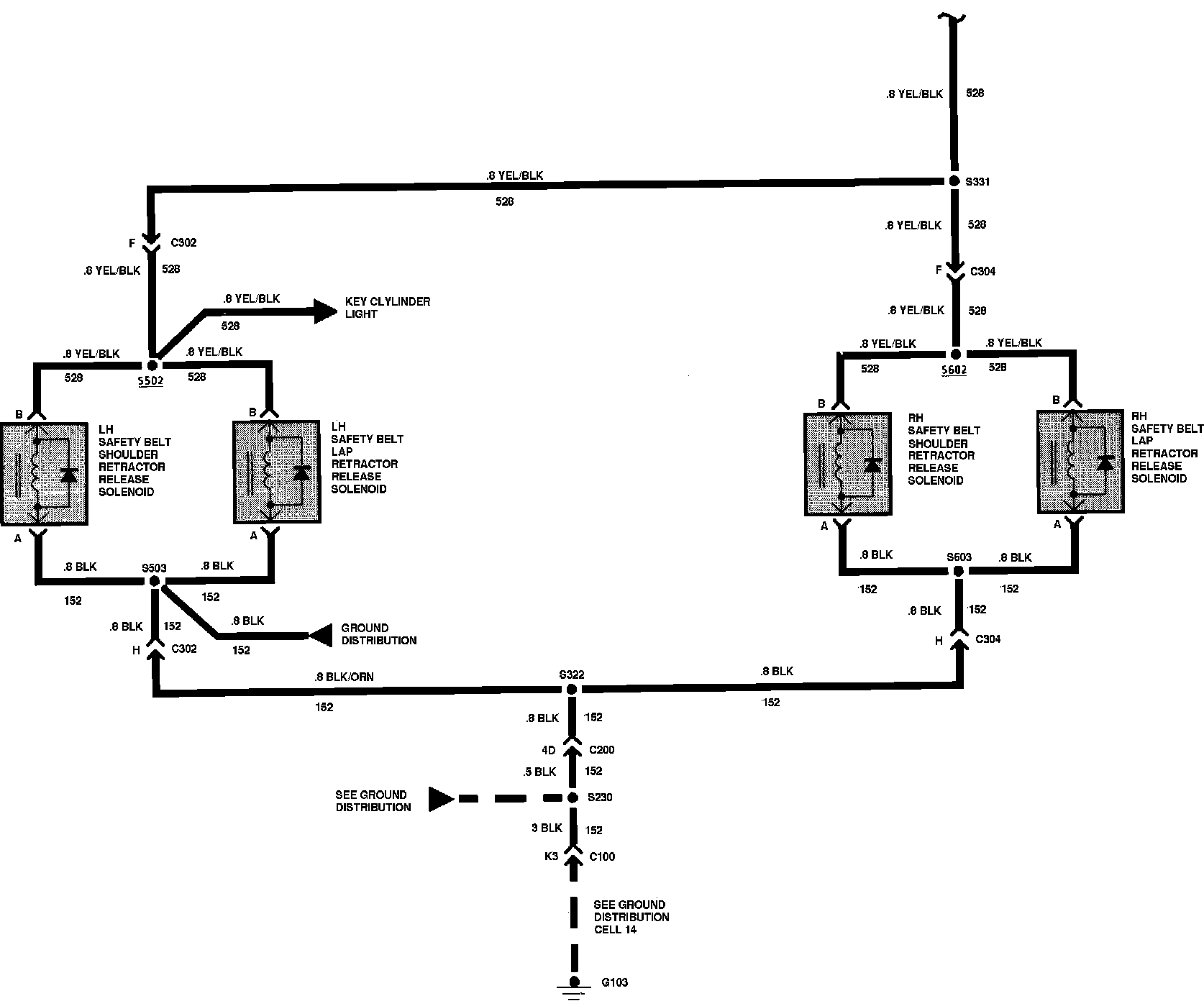

Fig. 13 Automatic Safety Belt Schematic (Part 2 Of 2):



Automatic Safety Belts:



Automatic Safety Belts:
