Brake Pedal Assy: Testing and Inspection

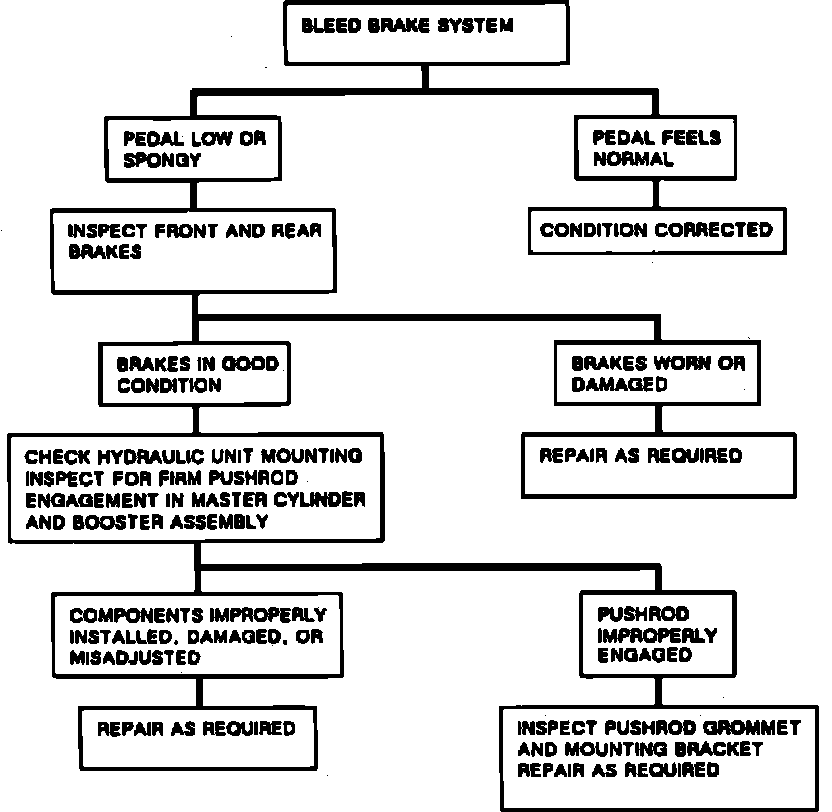

Fig. 88 Chart E-4, Low Or Spongy Brake Pedal. 1989-90 Models Except 6000:
