Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Ignition Switch
Ignition Switch
Ignition Switch.:

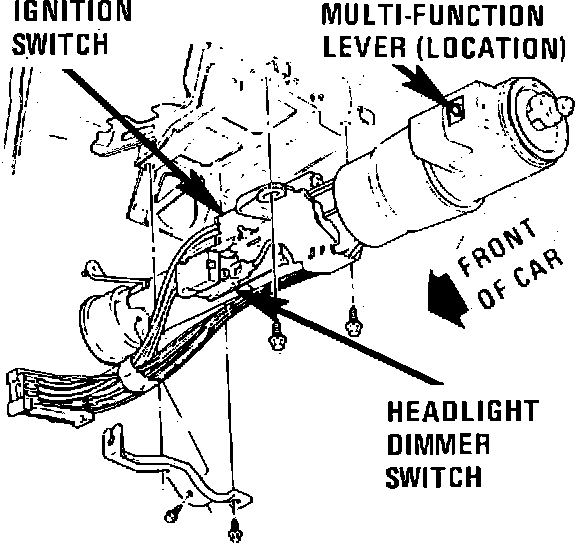

Ignition Switch - Behind I/P, On Center Of Steering Column
Applicable to: DeVille, Fleetwood, 88 & 98
