Safety Belt Switch

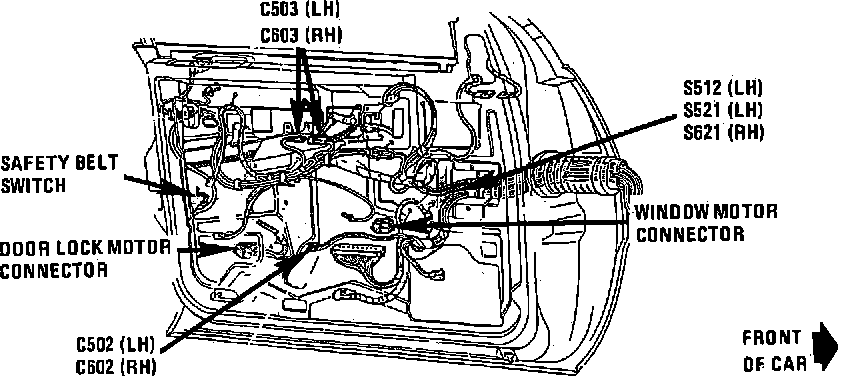

Safety Belt Switch.:




In Lower Rear Of Door

Applicable to: 88 & 98

Safety Belt Lap Retractor Solenoid.:




In Lower Rear Of Door

Applicable to: 1990 88 & 98
